CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Engine Housing Parts Diagram

6" Chipper, 1.1 L Diesel

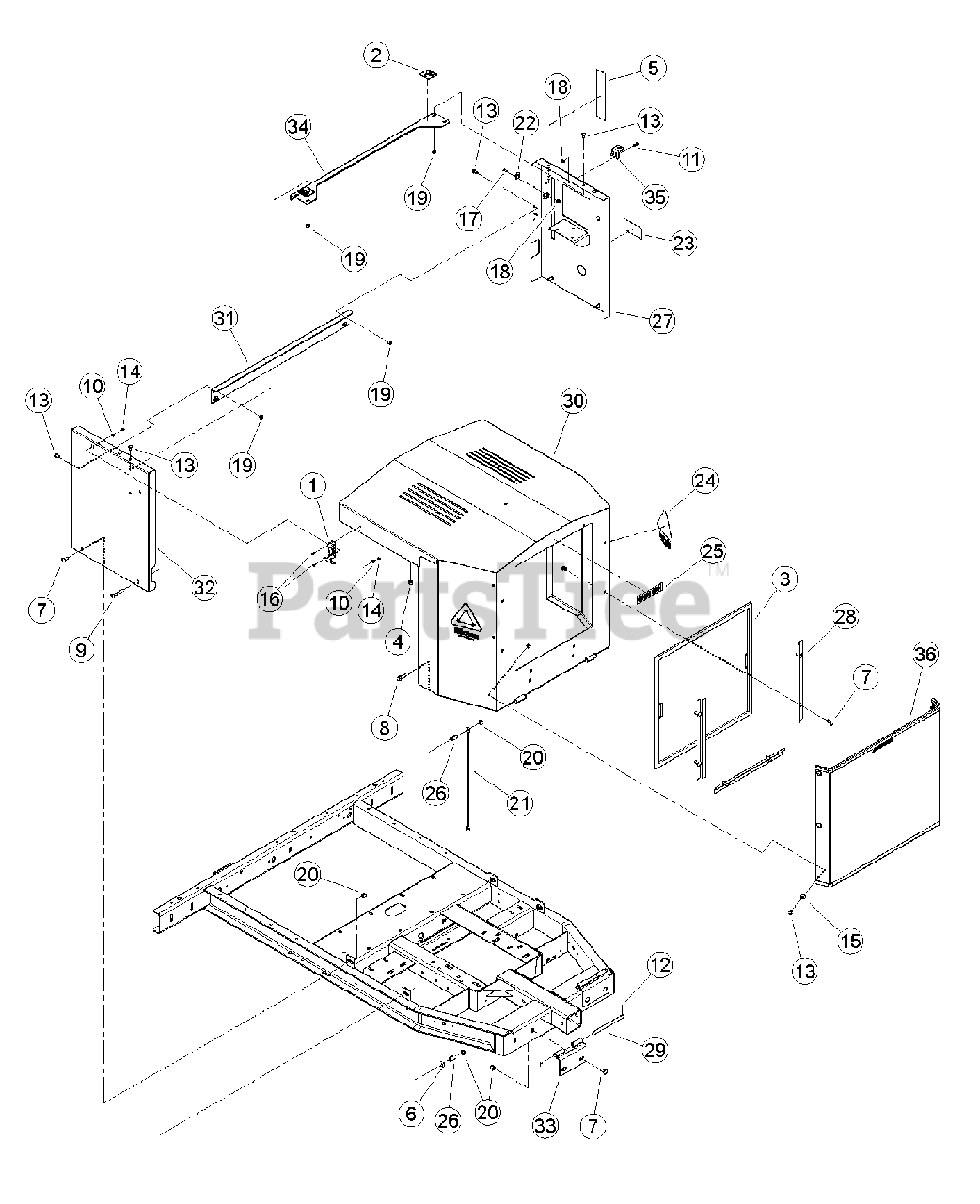

Engine Housing Parts Diagram

  • Title

1

0125-0060-00

LATCH, FLEXIBLE DRAW

$

$

Not available

2

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12278

SCREEN, RADIATOR INLET

$129.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

5

Bear Cat 14302-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

7

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

8

15078-00

BOLT, 3/8 X 2 FLANGE NC

$

$

Not available

9

15115

BOLT, 3/8 X 2-1/2" GR5 CRG NC ZP

$

$

Not available

10

Bear Cat 15132

WASHER, 3/16" FLAT ZP

$

$

Not available

11

15238

BOLT, 1/4 X 3/4 GR5 CRG ZP

$

$

Not available

12

Bear Cat 15354

ROLL PIN, 5/32 X 3/4" PLAIN

$0.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

14

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

15

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

16

15423

SCREW, MCH 10-24 X 1/2" PAN HD PH ZP

$

$

Not available

17

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 18292-00

LANYARD, STEEL W/ PVC 1/8 X 20"

$102.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

23

Bear Cat 18556-00

DECAL, FEED SPEED

$7.49

$

Usually ships in 3-7 days

0

24

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

25

36045-00

DECAL, MODEL CH611DH

$

$

Not available

26

Bear Cat 70046

IDLER SPACER

$

$

Not available

27

71493-35

WELDMENT, ENGINE RIGHT

$

$

Not available

28

Bear Cat 72678-12

BRACKET, SCREEN HOLDER

$

$

Not available

29

Bear Cat 74904-00

PIN, HOOD HINGE PLATED

$47.99

$

Usually ships in 3-7 days

0

30

75069-35

WELDMENT, 6 INCH HOOD

$

$

Not available

31

75070-35

PLATE, HOOD SUPPORT

$

$

Not available

32

75076-35

SHIELD, ENGINE LEFT

$

$

Not available

33

Bear Cat 75103-12

WELDMENT, HOOD HINGE

$

$

Not available

34

75142-12

BRACE, ENGINE SHIELD

$

$

Not available

35

75143-12

BASE, HOOD LOCK

$

$

Not available

36

77497-00

ASSEMBLY, 6 INCH SCREEN

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
