CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Chute (B) NON-CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

6" Chipper, 1.1 L Diesel

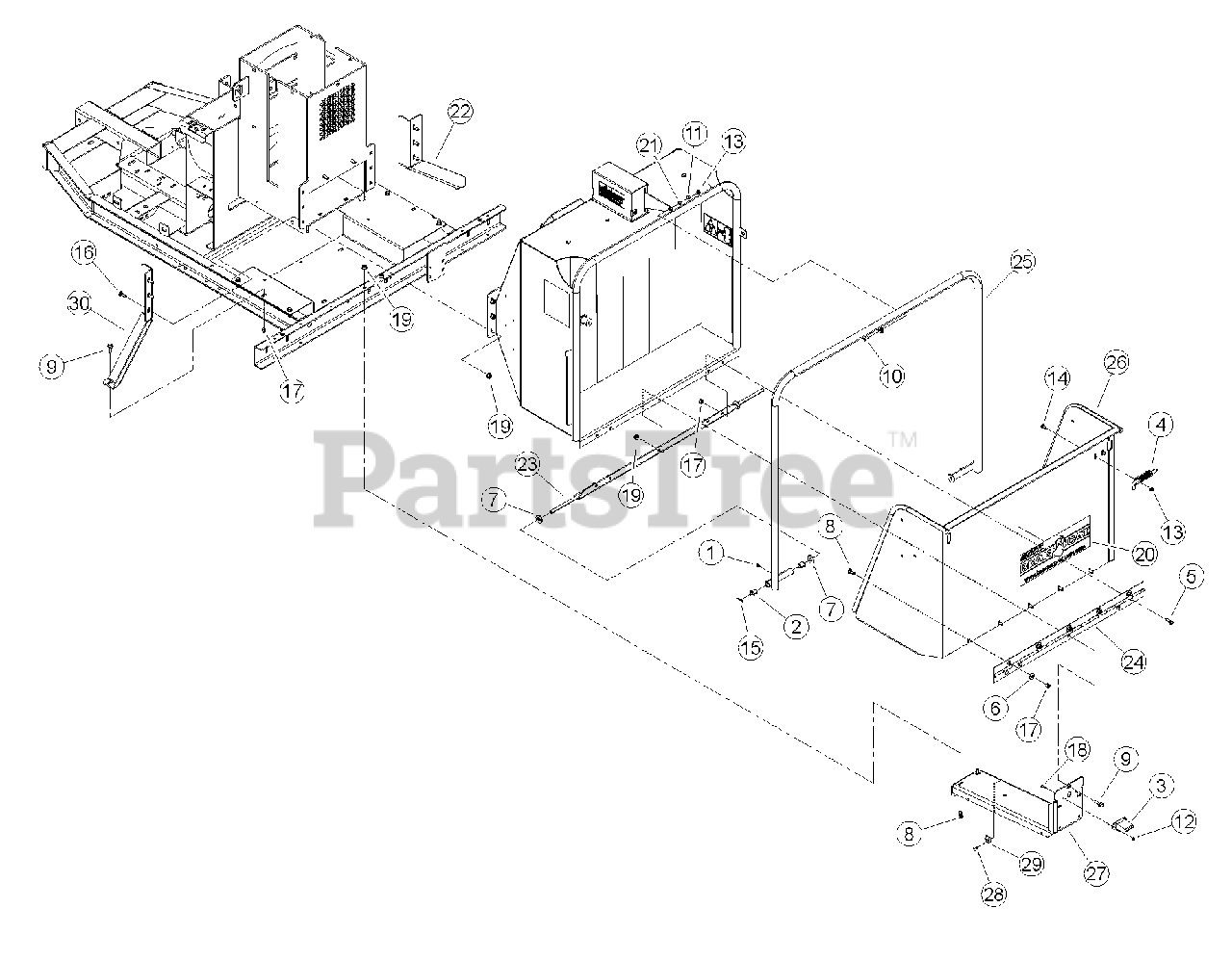

Chute (B) NON-CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

  • Title
1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

4

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

5

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

9

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15219

BOLT, 5/16 X 1" GR5 HHCS NC ZP

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

12

15255

NUT, 8-32 NYLOCK

$

$

Not available

13

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

15

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

16

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

17

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15460

SCREW, MCH 10-24 X 3/4" PAN HD PH ZP

$

$

Not available

19

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

21

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

22

Bear Cat 71617-12

BRACKET, CHUTE SUPPORT RH

$

$

Not available

23

Bear Cat 73990-12

WELDMENT, CONTROL PIVOT

$188.99

$

Usually ships in 3-7 days

0

24

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

25

Bear Cat 75195-12

WELDMENT, CONTROL ARM

$351.99

$

Usually ships in 3-7 days

0

26

Bear Cat 75248-12

WELDMENT, EXTENSION TRAY

$1068.99

$

Usually ships in 3-7 days

0

27

77239-00

ASSEMBLY, CHUTE/SPARE SUPPORT 6 IN SERVICE PART

Note: (INCLUDES ITEMS 28 & 29)

$

$

Not available

28

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

29

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

30

Bear Cat 77566-12

WELD, PLATE LH SUPPORT

$

$

Not available
