CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Chute (B) CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

6" Chipper, 1.1 L Diesel

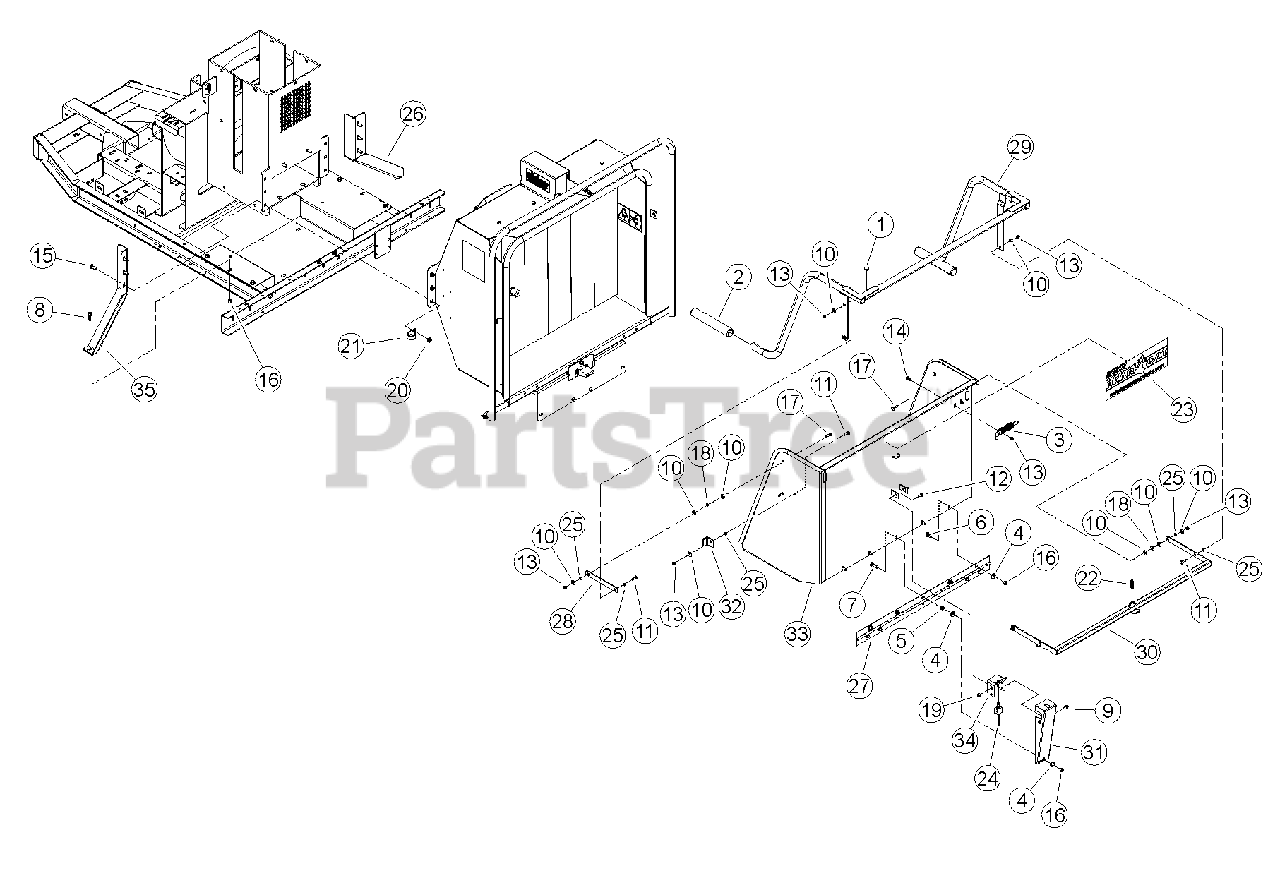

Chute (B) CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

  • Title
1

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

5

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

15058

BOLT, 3/8 X 1-1/2" GR5 CRG NC ZP

$

$

Not available

8

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

9

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

11

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

12

Bear Cat 15349

BOLT, 5/16 X 7/8" GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

15

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

16

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

17

Bear Cat 15398

BOLT, 5/16 X 1-1/4" GR5 CRG ZP

$

$

Not available

18

Bear Cat 15409

WASHER, 5/16" ID 7/8" OD NYLON FLAT

$

$

Not available

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

Bear Cat 16383

CLAMP, 1 9/16 COATED METAL

$

$

Not available

22

Bear Cat 16698

SPRING 1/2 X 2.00 LG,ZP

$21.99

$

Usually ships in 3-7 days

0

23

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

24

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON
(Superseded to 32693-00)

Note: (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$172.99

$

Usually ships in 3-7 days

0

25

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

26

Bear Cat 71617-12

BRACKET, CHUTE SUPPORT RH

$

$

Not available

27

Bear Cat 74033-12

HINGE, EXTENSION TRAY

$

$

Not available

28

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

29

Bear Cat 74199-35

WELDMENT, KNEEBAR

$423.99

$

Usually ships in 3-7 days

0

30

Bear Cat 74202-12

WELDMENT, KNEEBAR PIVOT

$

$

Not available

31

Bear Cat 74204-12

SHIELD, KNEEBAR SWITCH

$108.99

$

Usually ships in 3-7 days

0

32

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

33

75199-12

WELDMENT, EXTENSION TRAY

$

$

Not available

34

Bear Cat 77532-12

BRACKET, SWITCH

Note: (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$56.99

$

Usually ships in 3-7 days

0

35

Bear Cat 77566-12

WELD, PLATE LH SUPPORT

$

$

Not available

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

Note: (NOT SHOWN)

$2.99

$

Usually ships in 3-7 days

0

Bear Cat 36355-00

HARNESS, SAFETY BAR

Note: (NOT SHOWN)

$85.99

$

Usually ships in 3-7 days

0
