CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Chute Attachment NON-CE COMPLIANT (VIN: 5VJAA0018FW004647 AND BELOW) Parts Diagram

6" Chipper, 1.1 L Diesel

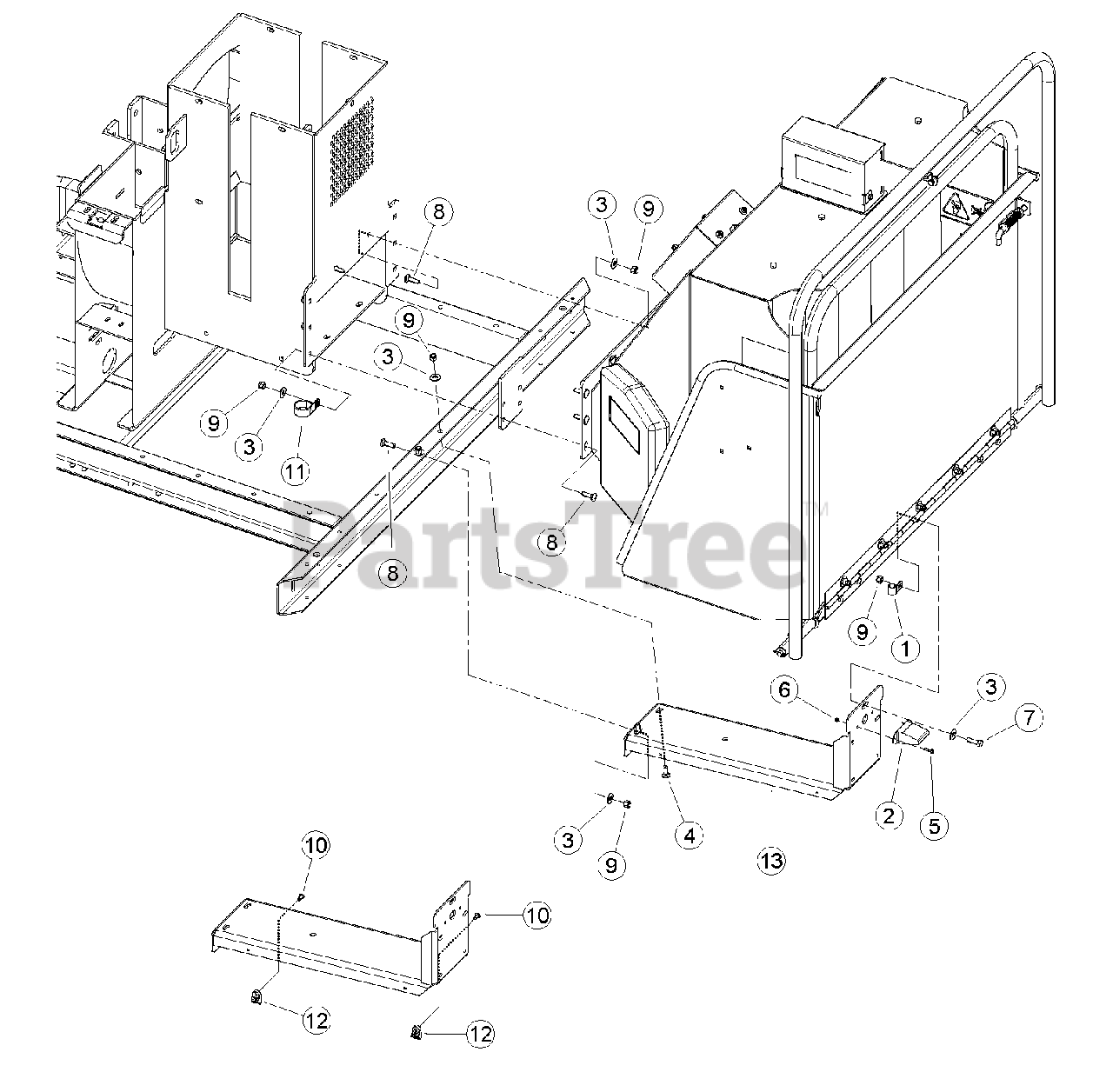

Chute Attachment NON-CE COMPLIANT (VIN: 5VJAA0018FW004647 AND BELOW) Parts Diagram

  • Title

1

14048-00

CLAMP, 9/16" COATED

$

$

Not available

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

4

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

5

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

6

15255

NUT, 8-32 NYLOCK

$

$

Not available

7

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

8

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

9

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

10

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16383

CLAMP, 1-9/16" COATED METAL

$

$

Not available

12

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

13

75265-12

SUPPORT, CHUTE/SPARE

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
