CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA001XGW005008) Chute (A) CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

6" Chipper, 1.1 L Diesel

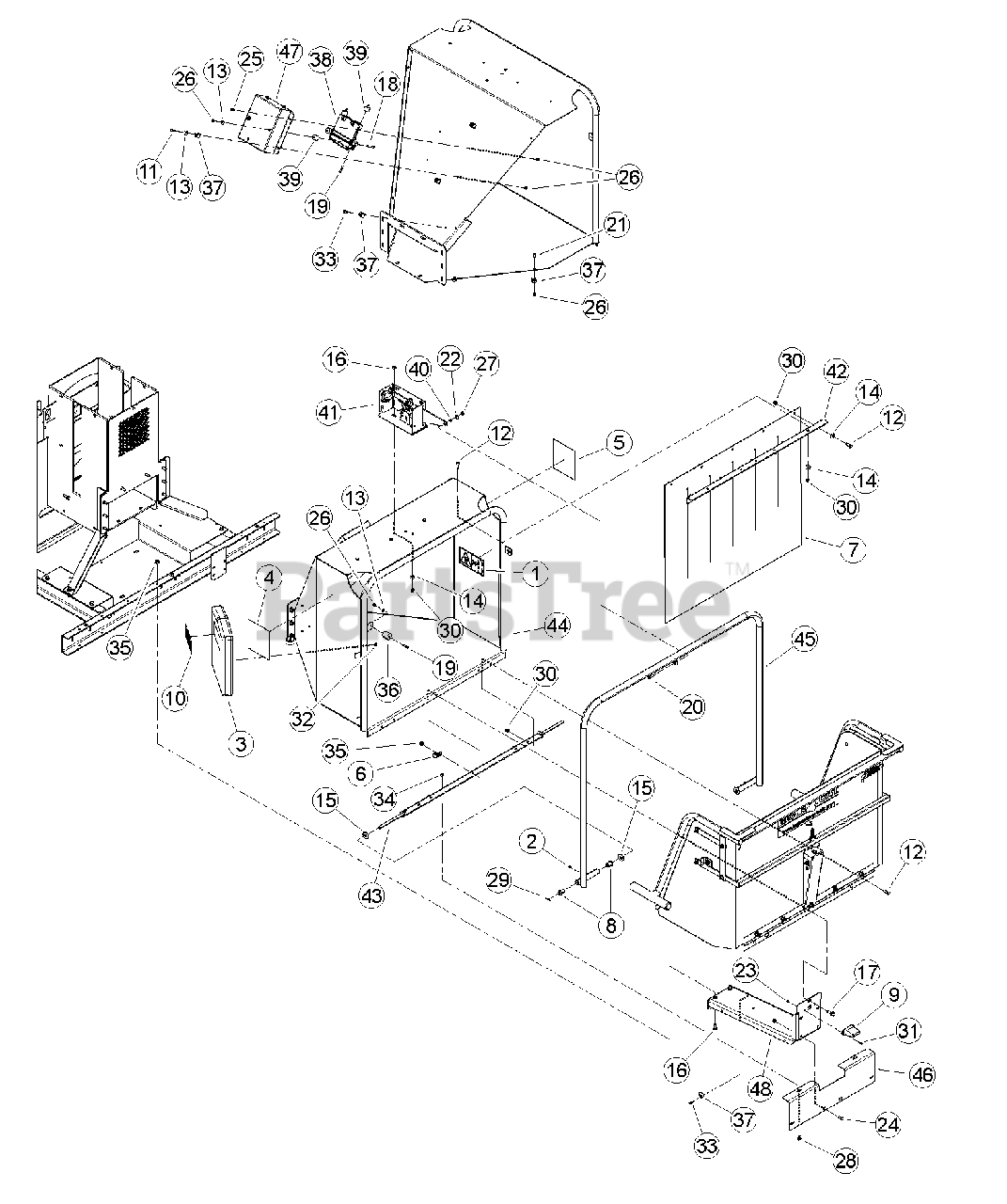

Chute (A) CE COMPLIANT (VIN: 5VJAA0014FW004726 - 5VJAA001XGW005008) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 12614

CONTAINER, INSTR. MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

5

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

6

14048-00

CLAMP, 9/16 COATED

$

$

Not available

7

Bear Cat 14130-00

FLAP, CHUTE

$202.99

$

Usually ships in 3-7 days

0

8

Bear Cat 14236-00

BUSHING, 1/2 X 1 FLANGE LUBE

$9.49

$

Usually ships in 3-7 days

0

9

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

10

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

11

15002

BOLT, 1/4 X 1 GR5 HEX HD ZP

$

$

Not available

12

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

13

15030

WASHER, 1/4" FLAT ZP

$

$

Not available

14

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

15

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

16

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

17

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

18

Bear Cat 15197

BOLT, 1/4 X 2-1/4 G5 HCS ZP

$

$

Not available

19

15214

BOLT, 1/4-20 X 1-1/4 GR5 HHCS MAGNI 565 SILVER

$

$

Not available

20

Bear Cat 15219

BOLT, 5/16 X 1" GR5 HHCS NC ZP

$

$

Not available

21

Bear Cat 15239

BOLT, 1/4 X 1 GR5 CRG NC ZP

$0.99

$

Usually ships in 3-7 days

0

22

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

23

15255

NUT, 8-32 NYLOCK

$

$

Not available

24

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

25

15343

BOLT, 1/4 X 5/8" HHCS GR5 ZP

$

$

Not available

26

Bear Cat 15355

NUT, 1/4" NE NYLOCK ZP

$

$

Not available

27

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

28

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 CRG NC ZP

$

$

Not available

29

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

30

Bear Cat 15388

NUT, 3/8" NE NYLOCK ZP

$

$

Not available

31

Bear Cat 15460

SCREW, MCH #10-24 X 3/4" PAN HD PH ZP

$

$

Not available

32

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

33

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

34

Bear Cat 15904-00

NUT, 5/16-18 NYLOCKFLANGE

$

$

Not available

35

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

36

Bear Cat 18420-00

BUMPER, RECESSED RUBBER

$31.99

$

Usually ships in 3-7 days

0

37

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

38

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

39

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

40

Bear Cat 69126

SPACER, IDLER PIVOT

$4.49

$

Usually ships in 3-7 days

0

41

70845-00

ASSEMBLY, "CE" SWITCH BOX

$

$

Not available

42

Bear Cat 73958-12

SUPPORT, CHIPPER FLAP

$77.99

$

Usually ships in 3-7 days

0

43

Bear Cat 73990-12

WELDMENT, CONTROL PIVOT

$188.99

$

Usually ships in 3-7 days

0

44

75194-35

WELDMENT, CHIPPER CHUTE

$

$

Not available

45

Bear Cat 75195-12

WELDMENT, CONTROL ARM

$351.99

$

Usually ships in 3-7 days

0

46

Bear Cat 75246-12

BRACKET, EUROPEAN LICENSE

$

$

Not available

47

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0

48

77239-00

ASSEMBLY, CHUTE/SPARE SUPPORT 6IN

Note: (INCLUDES ITEMS 33 & 37)

$

$

Not available
