CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Idler Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

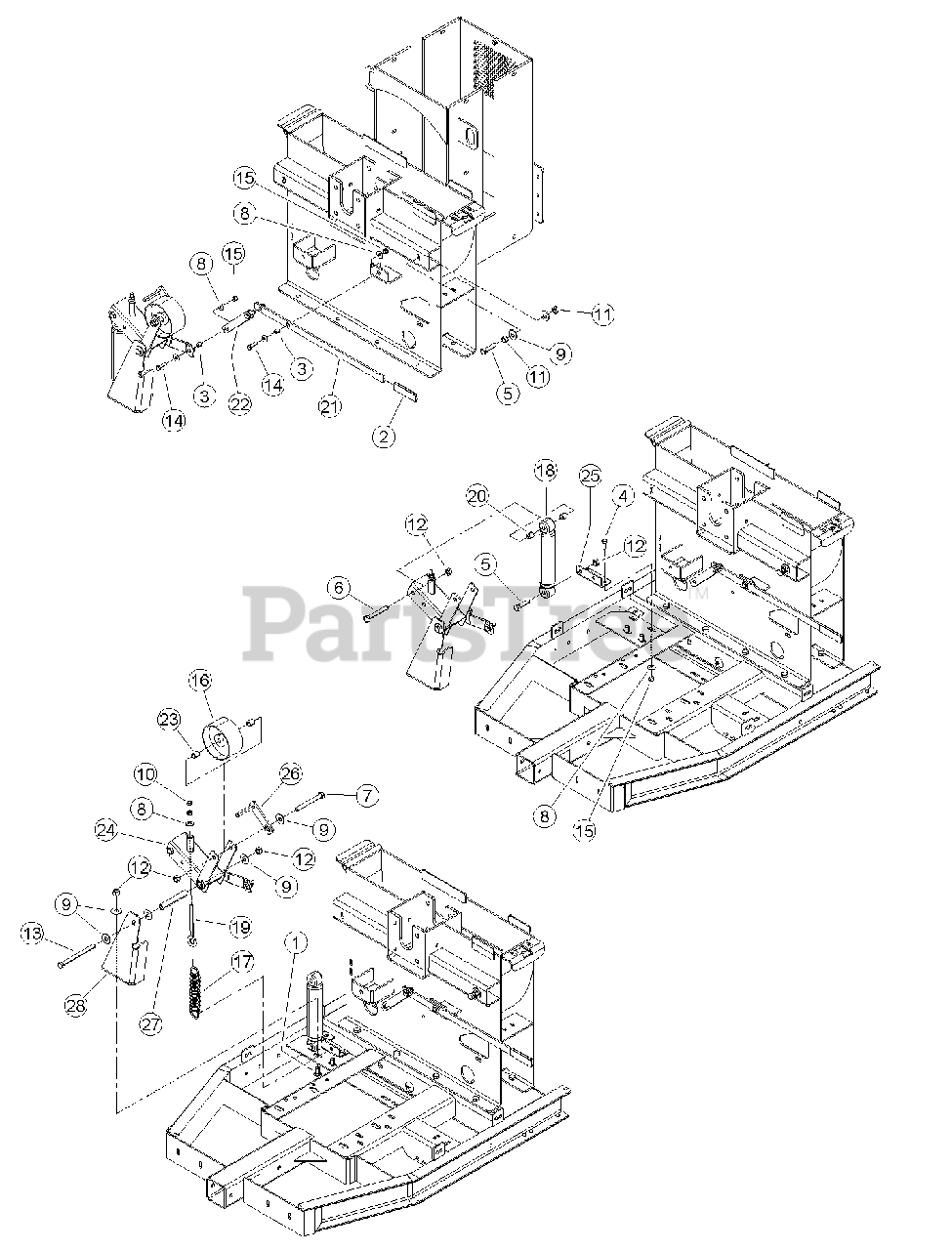

Idler Parts Diagram

  • Title
1

0103-0112-00

BOLT, 1/2 X 1 CRG GR5 ZP

$

$

Not available

2

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14239-00

BUSHING, 3/8 X 1/2 SLEEVE LUBE

$2.49

$

Usually ships in 3-7 days

0

4

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

6

15016

BOLT, 1/2 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

7

15017

BOLT, 1/2 X 4-1/2 HEX HD GR5 NC ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15042

NUT, 3/8 HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

11

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

12

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

13

15234

BOLT, 1/2 X 6 HEX HD GR5 ZP

$

$

Not available

14

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

15

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 16230

PULLEY, IDLER 5" X 2.50"

$85.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16502

SPRING, 7-3/4" EXTENSION

$

$

Not available

18

Bear Cat 16786

ABSORBER, IDLER SHOCK

$

$

Not available

19

17804

EYEBOLT, 3/8" X 5" LG 4-1/4 THD ZP

$

$

Not available

20

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

21

Bear Cat 74028-12

LEVER, CLUTCH ENGAGEMENT

$

$

Not available

22

Bear Cat 74029-12

LINK, ENGAGEMENT ARM

$

$

Not available

23

Bear Cat 74041-12

SPACER, IDLER SHEAVE

$15.99

$

Usually ships in 3-7 days

0

24

Bear Cat 74062-12

WELDMENT, IDLER ARM

$

$

Not available

25

Bear Cat 74074-12

BRACKET, SPRING ANCHOR

$

$

Not available

26

Bear Cat 74097-12

WELDMENT, BELT PIN

$

$

Not available

27

Bear Cat 74431-00

BUSHING, IDLER PIVOT

$30.99

$

Usually ships in 3-7 days

0

28

Bear Cat 75122-12

BRACE, IDLER

$

$

Not available
