CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Housing Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

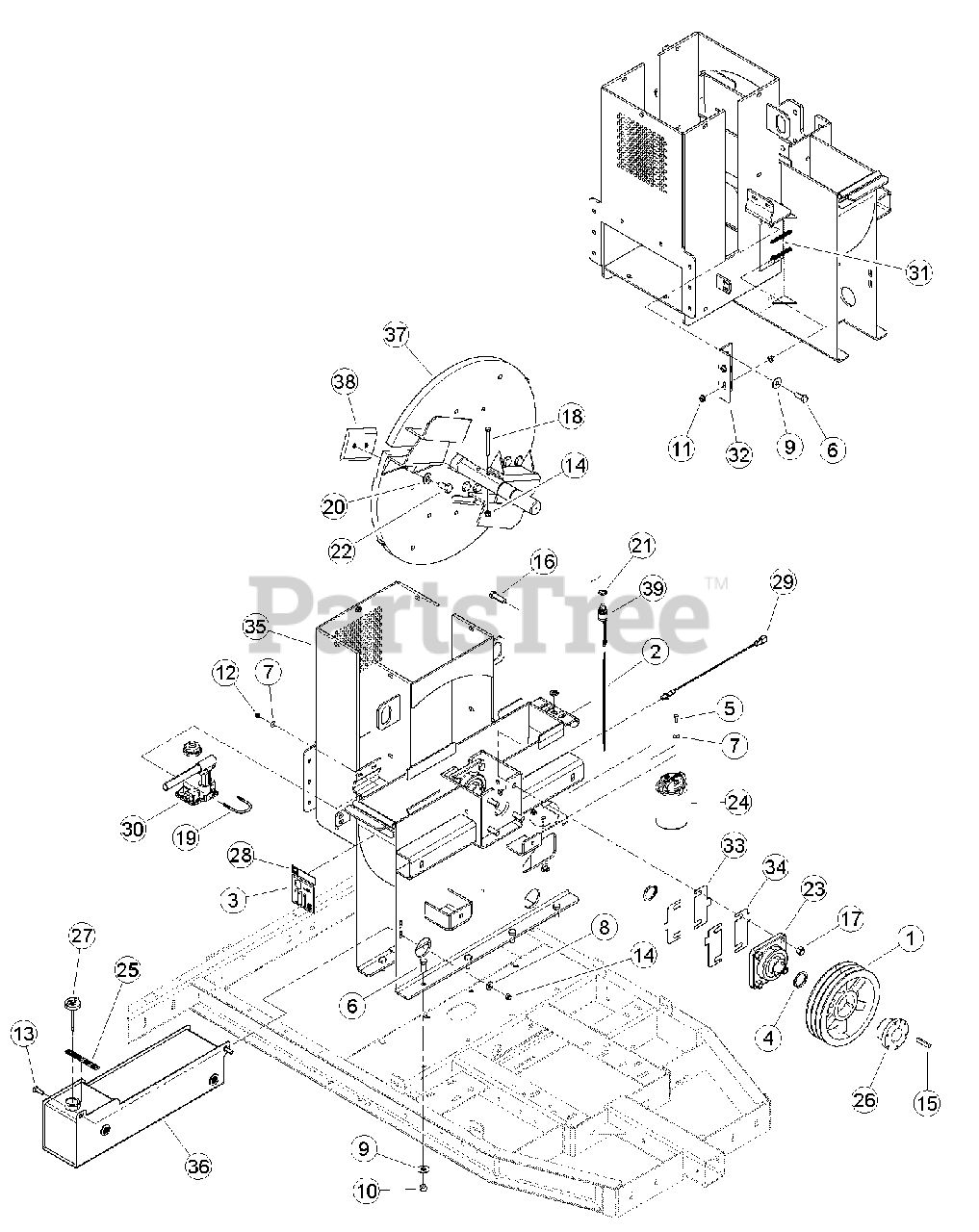

Housing Parts Diagram

  • Title

1

12459

SHEAVE, 3BQ9.4, SK

$

$

Not available

2

Bear Cat 14323-00

WIRE ASSY, ENGINE KILL

$64.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14342-00

DECAL, 111 DB (CE COMPLIANT ONLY)

$9.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14626-00

RING, 1-3/4 EXT HEAVY DUTY SNAP

$7.99

$

Usually ships in 3-7 days

0

5

15001

BOLT, 1/4 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4 HEX HD GR5 NC ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

11

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

12

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

13

15378

BOLT, 3/8 X 1-1/4 CRG GR5 NC ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15440

KEY, 3/8 SQUARE X 2 LONG PLAIN

$4.99

$

In Stock, only 2 left!

0

16

Bear Cat 15727-00

BOLT, 9/16 X 1-3/4 HEX HD GR5 ZP

$10.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15728-00

NUT, 9/16 CENTER LOCK GRB ZP

$3.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15739-00

BOLT, 3/8 X 3-1/2 FULL THD GR5 ZP

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

20

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

21

Bear Cat 15775-00

NUT, 5/8-32 JAM

$12.99

$

Usually ships in 3-7 days

0

22

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/ PATCH

$11.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16553

BEARING, 1-3/4" 4 BOLT FLANGE

$

$

Not available

24

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

25

Bear Cat 16897

DECAL, HYDRAULIC FLUID

$8.99

$

Usually ships in 3-7 days

0

26

Bear Cat 17248

BUSHING, SK 1-3/4"

$

$

Not available

27

Bear Cat 18518-00

CAP, W/DIPSTICK
(Superseded to 71594-00)

$77.99

$

Usually ships in 3-7 days

0

28

Bear Cat 18561-00

DECAL, 76628S INFORMATION (CE COMPLIANT ONLY)

$40.99

$

Usually ships in 3-7 days

0

29

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY

$181.99

$

Usually ships in 3-7 days

0

30

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

31

Bear Cat 73982-12

PLATE, CHIPPER ANVIL

$

$

Not available

32

Bear Cat 73985-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

33

Bear Cat 74369-00

SHIM, 20 GA.

$13.99

$

Usually ships in 3-7 days

0

34

Bear Cat 74371-00

SHIM, 16 GA.

$11.99

$

Usually ships in 3-7 days

0

35

Bear Cat 75085-35

WELDMENT, 6 IN CHIPPER HOUSING

$5331.99

$

Usually ships in 3-7 days

0

36

Bear Cat 75091-12

WELDMENT, HYDRAULIC TANK

$

$

Not available

37

Bear Cat 75995-00

WELDMENT, 6 CHIPPER DISK
(Superseded to 77741-00)

$

$

Not available

38

BLADE, BIG CHIPPER (FOR SERVICE ORDER KIT # 76293-00)

$

$

Not available

38

Bear Cat 76293-00

KIT, CHIPPER BLADE
(Superseded to 78361-00)

$481.99

$

In Stock, only 1 left!

0

39

Bear Cat 76622-00

ASSEMBLY, SEALED SWITCH

$82.99

$

Usually ships in 3-7 days

0
