CH 611 DH - Bear Cat 6" Chipper, 1.1 L Diesel Kubota (SN: 5VJAA0000DW000001 - 5VJAA0018FW004647) Feed Roller Housing Parts Diagram

6" Chipper, 1.1 L Diesel Kubota

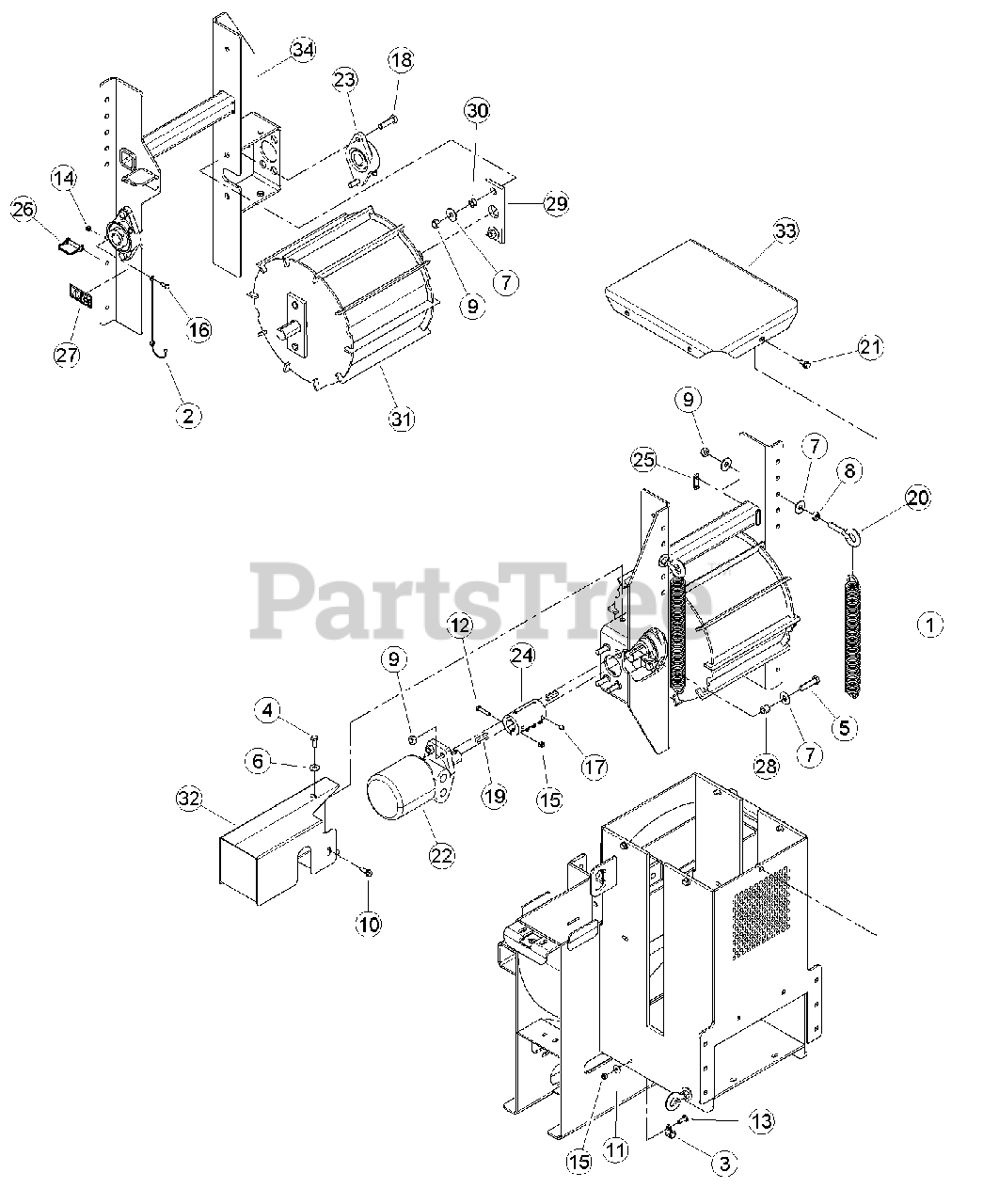

Feed Roller Housing Parts Diagram

  • Title
1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

12530

LANYARD, NYLON

$

$

Not available

3

14048-00

CLAMP, 9/16 COATED

$

$

Not available

4

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

7

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

8

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

9

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

10

15076

SCREW, 3/8-16 X 1 LG THD CUTT ZP

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

12

15282

BOLT, 5/16 X 1-1/2 HEX HD GR5 ZP

$

$

Not available

13

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

16

Bear Cat 15363

BOLT, 1/4 X 3/4 GR5 HEX HD NF ZP

$0.99

$

Usually ships in 3-7 days

0

17

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

18

15478

BOLT, 1/2 X 1-3/4 HEX HD GR5 NC ZP

$

$

Not available

19

Bear Cat 15498

KEY, 5/16 SQUARE X 1-1/2 LONG

$

$

Not available

20

Bear Cat 15502

EYEBOLT, 1/2 X 2 ZP

$31.99

$

Usually ships in 3-7 days

0

21

15617

BOLT, 3/8 X 3/4 SERR FLANGE

$

$

Not available

22

Bear Cat 16586

MOTOR, 45 CU IN. HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

24

Bear Cat 16683

COUPLER, 1-1/4" SHAFT

$

$

Not available

25

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

26

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LGH

$

$

Not available

27

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

28

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

29

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

30

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0

31

Bear Cat 73787-12

WELDMENT, FEED ROLLER
(Superseded to 71839-00)

$1193.99

$

Usually ships in 3-7 days

0

32

Bear Cat 73978-12

WELDMENT, MOTOR COVER

$

$

Not available

33

Bear Cat 73981-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

34

Bear Cat 75073-12

WELDMENT, ROLLER SLIDE

$

$

Not available
