CH 5627 - Bear Cat 5" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0215JW005793 & Above) Engine Parts Diagram

5" Chipper, 627cc Briggs & Stratton

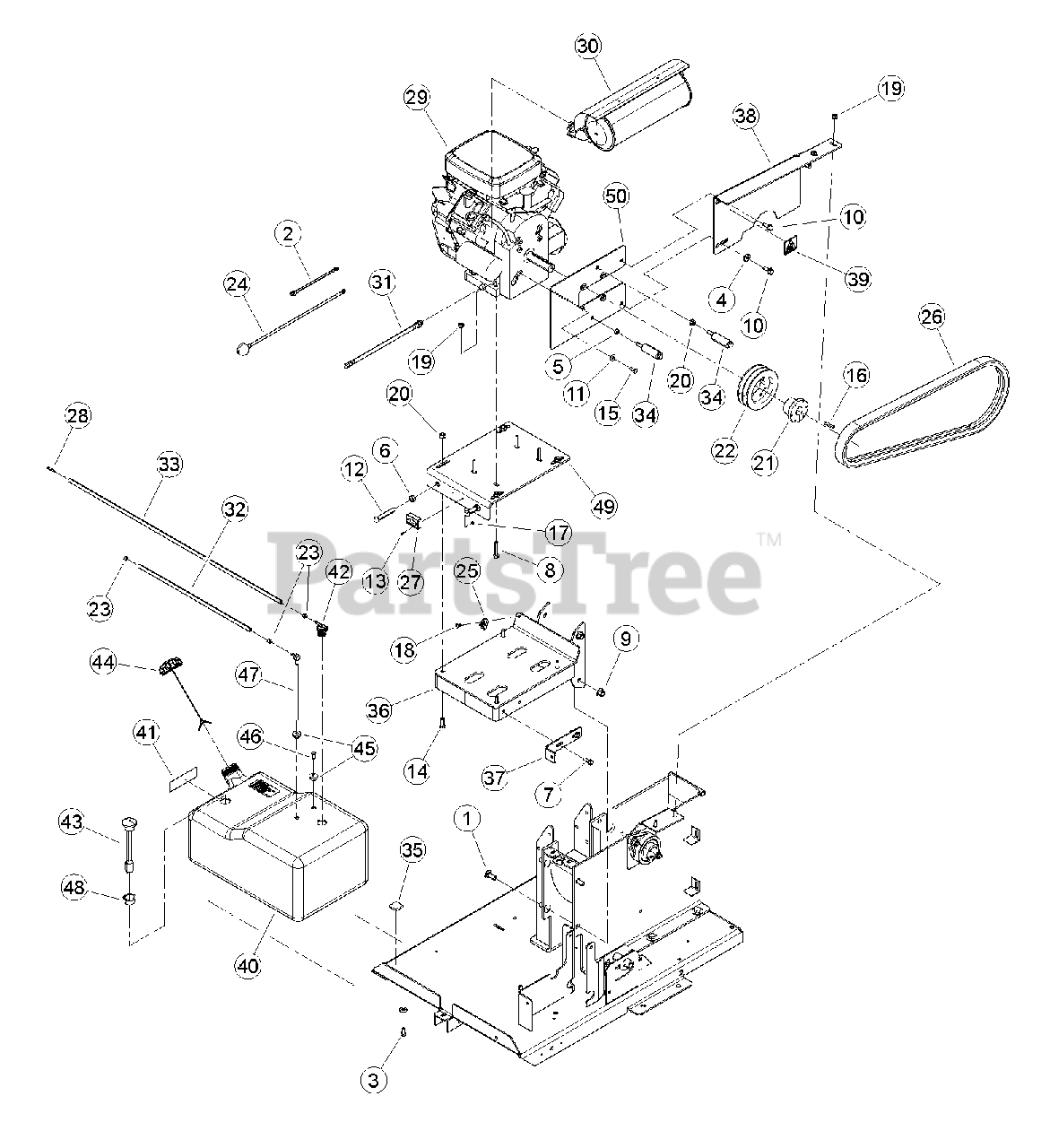

Engine Parts Diagram

  • Title

1

0103-0113-00

BOLT, 1/2-13 X 1-1/4 GR5 CRG

$

$

Not available

2

Bear Cat 14901-00

CABLE, 24" NEG (R/R)

$39.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

5

Bear Cat 15042

NUT, 3/8" HEX NC ZP

$0.99

$

In Stock, only 1 left!

0

6

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

7

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

15133-00

BOLT, 5/16 X 2 FLANGE NC

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

11

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

12

15285

SETSCREW, 1/2 X 3 SQ HD 1/2 DOG PT

$

$

Not available

13

15314-00

SCREW, #6-32 X 3/4 PAN PHP ZP

$

$

Not available

14

15378

BOLT, 3/8-16 X 1-1/4 GR5 CRG

$

$

Not available

15

Bear Cat 15381

BOLT, 5/16-24 X 3/4" GR5 HHCS ZP

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15418

KEY, 1/4 SQ X 1-1/2 LG PLAIN

$

$

Not available

17

Bear Cat 15601

NUT, #6-32 NYLON LOCK ZP

$

$

Not available

18

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

21

16064

BUSHING, SD 1-1/8"

$

$

Not available

22

Bear Cat 16326

SHEAVE, 2B5.2 SDS

$123.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

24

Bear Cat 17888

CABLE, 33" POS (R/R WITH BOOT)

$66.99

$

Usually ships in 3-7 days

0

25

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31460-00

BELT, 2BRP67

$294.99

$

Usually ships in 3-7 days

0

27

Bear Cat 31605-00

METER, TACH/HOUR

$112.99

$

Usually ships in 3-7 days

0

28

33707-00

FITTING, 3/16" X 1/4" VACUUM

$

$

Not available

29

ENGINE, 23 HP BRIGGS (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

30

MUFFLER, BRIGGS 23 HP OIL FILTER SIDE (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

31

Bear Cat 36152-00

HOSE ASSEMBLY, CRANKCASE DRAIN

$78.99

$

Usually ships in 3-7 days

0

32

Bear Cat 71379

HOSE, 20" FUEL LINE

$40.99

$

Usually ships in 3-7 days

0

33

Bear Cat 73079

HOSE, 38" FUEL LINE

$54.99

$

Usually ships in 3-7 days

0

34

Bear Cat 73678-12

WELDMENT, BELT GUIDE

$

$

Not available

35

Bear Cat 76477-00

PAD, FOAM FUEL TANK DAMPER

$20.99

$

Usually ships in 3-7 days

0

36

Bear Cat 76793-12

WELDMENT, ENGINE BASE

$

$

Not available

37

Bear Cat 76937-12

WELDMENT, SHIELD BRACKET

$

$

Not available

38

Bear Cat 76975-00

ASSEMBLY, BELT GUIDE W/ DECAL

Note: (INCLUDES ITEM 41)

$194.99

$

Usually ships in 3-7 days

0

39

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

40

Bear Cat 77711-00

ASSEMBLY, FUEL TANK

Note: (INCLUDES ITEMS 43-50)

$426.99

$

Usually ships in 3-7 days

0

41

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

42

Bear Cat 32542-00

VALVE, ROLL OVER

$181.99

$

In Stock, only 1 left!

0

43

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$51.99

$

Usually ships in 3-7 days

0

44

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$39.99

$

Usually ships in 3-7 days

0

45

Bear Cat 36689-00

GROMMET, TANK FITTING

$2.99

$

Usually ships in 3-7 days

0

46

Bear Cat 36690-00

PLUG, TANK VENT

$9.99

$

Usually ships in 3-7 days

0

47

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$25.99

$

Usually ships in 3-7 days

0

48

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$7.99

$

Usually ships in 3-7 days

0

49

77890-12

WELDMENT, ENGINE MOUNT PLATE

$

$

Not available

50

77892-12

WELDMENT, BELT SHIELD BRACKET

$

$

Not available

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

Note: (NOT SHOWN)

$2.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 33701-00

WIRE ASSEMBLY, ENGINE KILL

Note: (NOT SHOWN)

$63.99

$

Usually ships in 3-7 days

0

33740-00

HARNESS, B&S WIRE

Note: (NOT SHOWN)

$

$

Not available
