CH 5627 - Bear Cat 5" Chipper, 627cc Briggs & Stratton (SN: 5VJAA0215JW005793 & Above) Discharge Tube Parts Diagram

5" Chipper, 627cc Briggs & Stratton

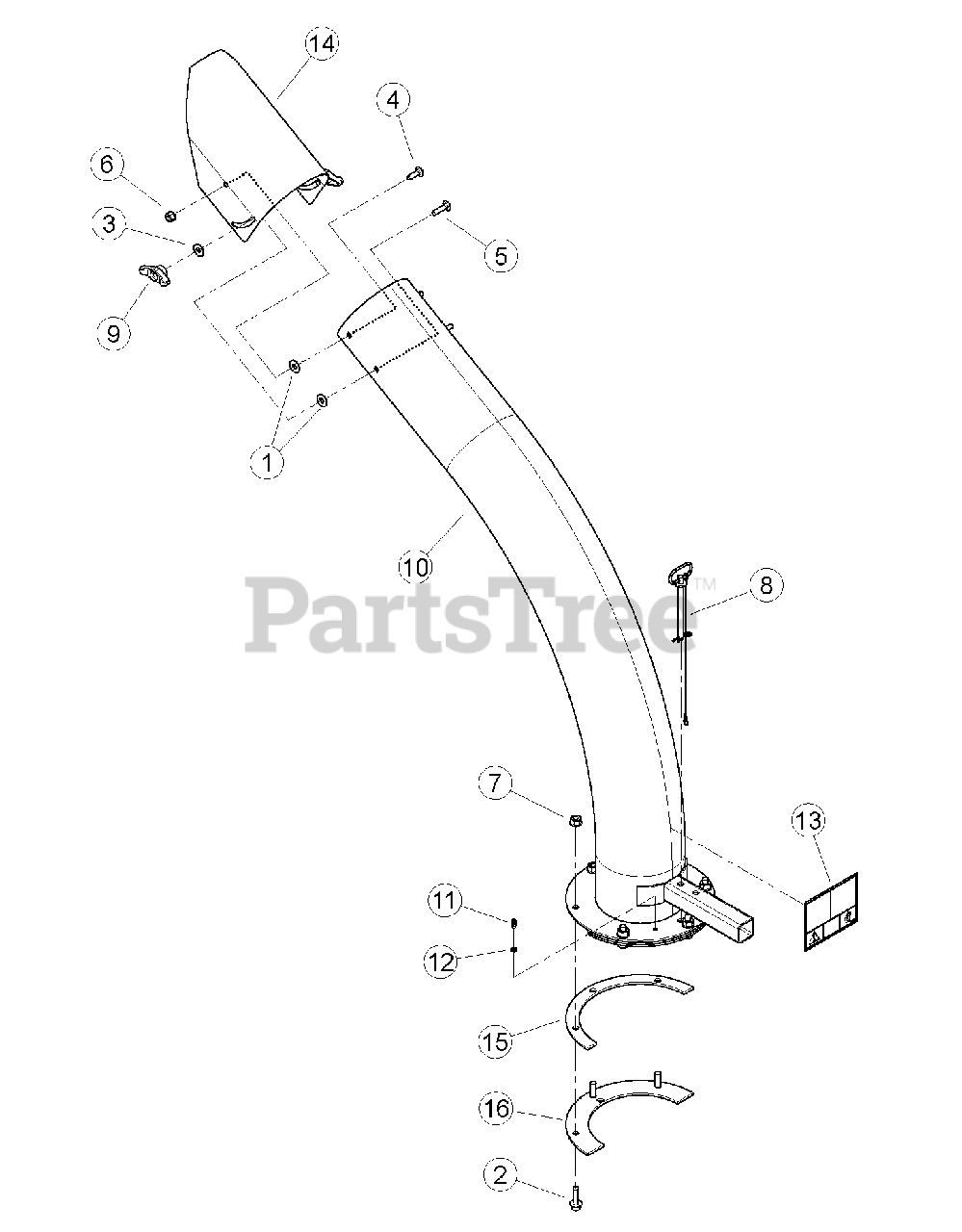

Discharge Tube Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

2

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

4

Bear Cat 15301

BOLT, 5/16-18 X 1 GR5 CRG

$

$

Not available

5

Bear Cat 15398

BOLT, 5/16 X 1-1/4 GR5 CRG

$

$

Not available

6

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

7

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

8

Bear Cat 30131-00

PIN, 3/8" X 4.25" DISCHARGE

$

$

Not available

9

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/ LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

10

Bear Cat 70166-00

ASSEMBLY, 6 INCH DISCHARGE CHUTE

Note: (INCLUDES ITEMS 11-13)

$670.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

12

Bear Cat 15584

WASHER, FLAT .254 X .400 X .048

$

$

Not available

13

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0

14

Bear Cat 71081-12

DEFLECTOR, BLOWER VAC DISCHARGE

$

$

Not available

15

Bear Cat 72452-12

SPACER, DISCHARGE PIVOT

$

$

Not available

16

Bear Cat 72453-12

RING, DISCHARGE CLAMP

$

$

Not available
