CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) PTO Driveshaft Parts Diagram

5" Chipper, 540cc PTO Driven

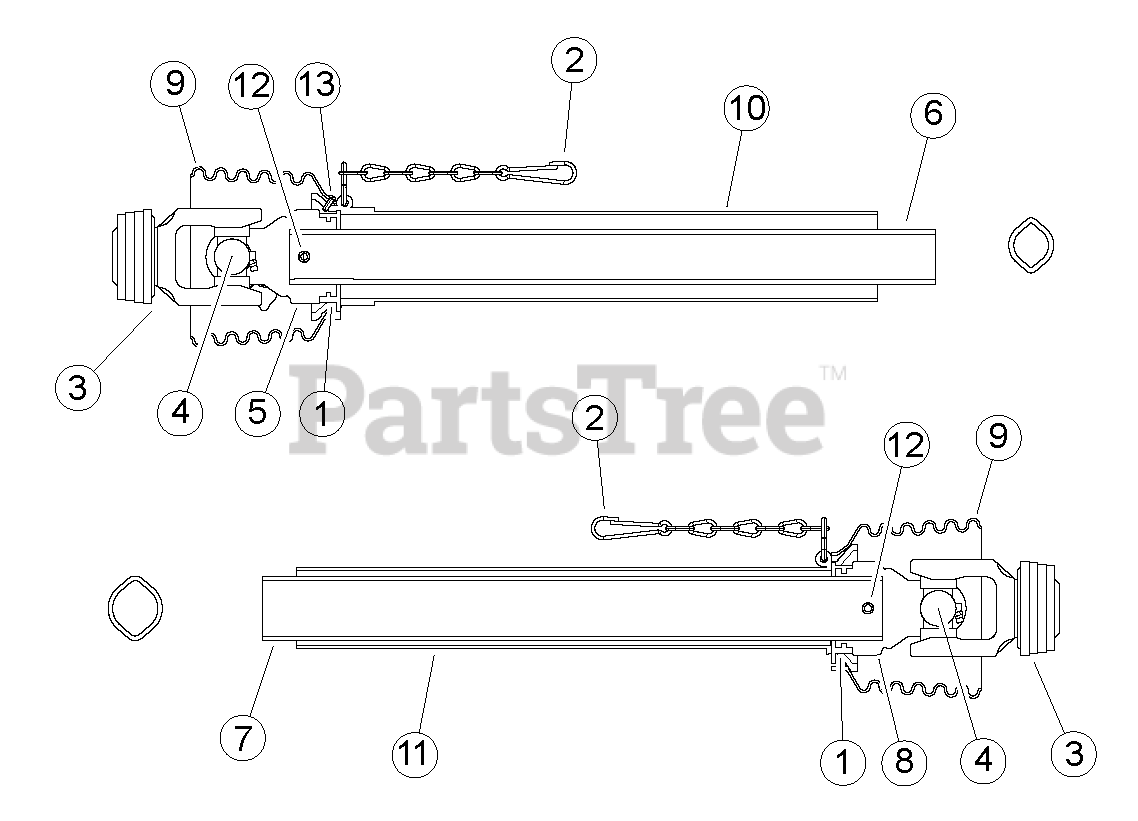

PTO Driveshaft Parts Diagram

  • Title

1

Bear Cat 12208

RING, SC15 BEARING

$29.99

$

Usually ships in 3-7 days

0

2

12209

CHAIN, SAFETY

$

$

Not available

3

Bear Cat 12225

YOKE, 1-3/8-6 SPLINGE ASGE

$139.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12226

KIT, CROSS & BEARING

$91.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12227

YOKE, INBOARD 0V

$121.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12228

PROFILE, INNER 0V

$108.99

$

Usually ships in 3-7 days

0

7

Bear Cat 12229

PROFILE, OUTER 1

$

$

Not available

8

Bear Cat 12230

YOKE, INBOARD 1

$114.99

$

In Stock, only 1 left!

0

9

Bear Cat 12232

CONE, 4 RIB

$58.99

$

Usually ships in 3-7 days

0

10

Bear Cat 12233

GUARD, TUBE OUTER

$93.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12234

GUARD, TUBE INNER

$124.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15573

PIN, 10 X 65 SPRING

$5.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15574

SCREW, WS365344

$

$

Not available

Bear Cat 12210

DECAL, OUT

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 12211

DECAL, IN

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32248-00

COLLAR, REINFORCING

Note: (NOT SHOWN)

$31.99

$

Usually ships in 3-7 days

0

Bear Cat 32250-00

DECAL, CE MARK

Note: (NOT SHOWN)

$6.99

$

Usually ships in 3-7 days

0

Bear Cat 32251-00

DECAL, EUROPEAN

Note: (NOT SHOWN)

$15.99

$

Usually ships in 3-7 days

0
