CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) Hydraulic Layout Parts Diagram

5" Chipper, 540cc PTO Driven

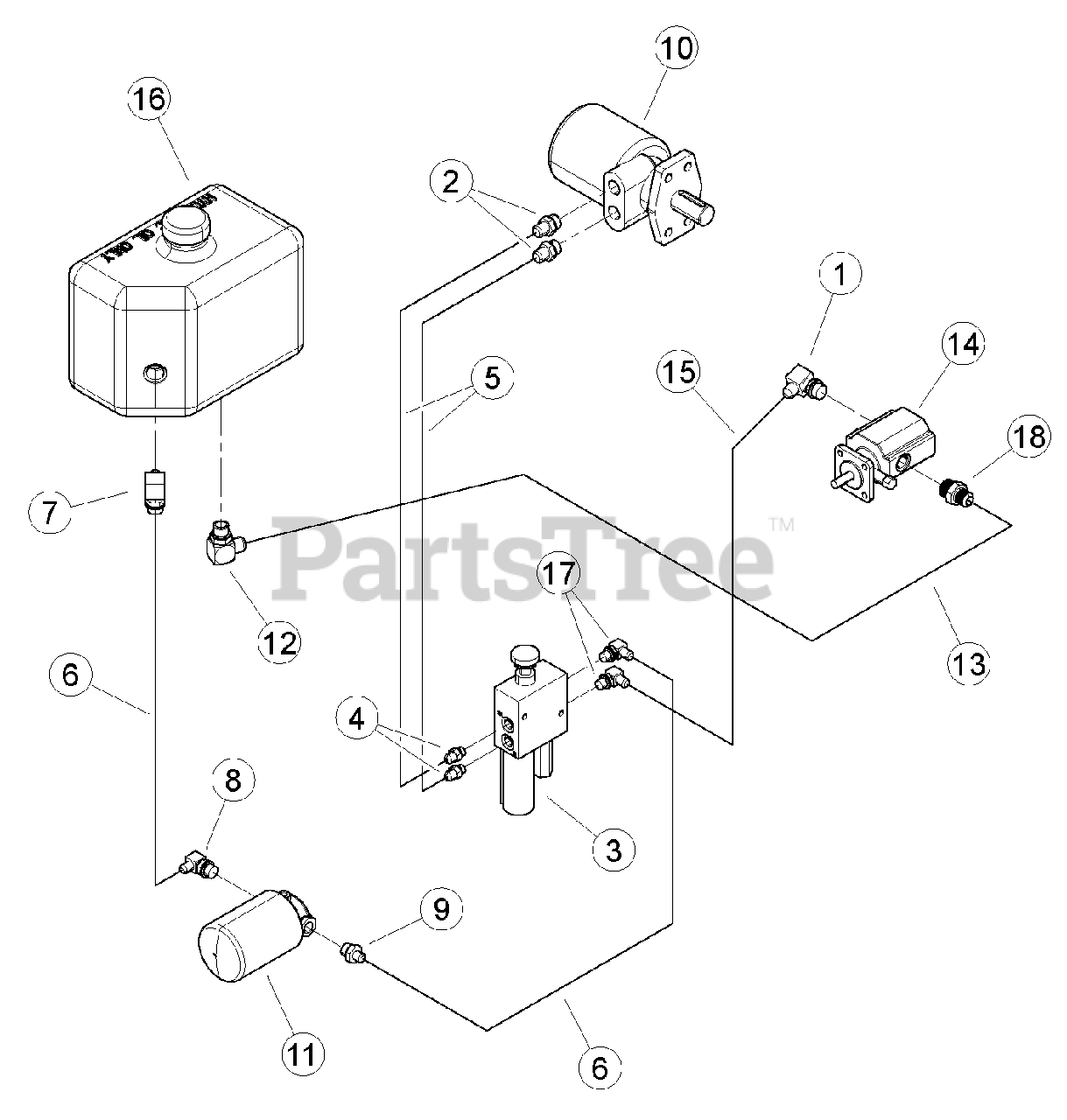

Hydraulic Layout Parts Diagram

  • Title

1

11810

ADAPTER, -10MORING/-8MJIC 90 DEG

$

$

Not available

2

Bear Cat 12626

ADAPTER, -10MORING/-8MJIC

$

$

Not available

3

Bear Cat 12646

VALVE, HYDRAULIC CONTROL

$1425.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12647

ADAPTER, -6MORING/-6MJIC

$

$

Not available

5

Bear Cat 12685

HOSE ASSEMBLY, -8FMJ/-6FMJ X 31

$51.99

$

Usually ships in 3-7 days

0

6

Bear Cat 12686

HOSE ASSEMBLY, -6FMJ/-6FMJ X 30

$67.99

$

Usually ships in 3-7 days

0

7

Bear Cat 12772

ADAPTER, -10MORING/-6MJIC 90

$35.99

$

Usually ships in 3-7 days

0

8

12852

ADAPTER, -8MORING/-6MJIC 90 DEG

$

$

Not available

9

13404-00

ADAPTER, -8MORING/-6MJIC

$

$

Not available

10

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16588

ASSEMBLY, HYDRAULIC FILTER

$112.99

$

Usually ships in 3-7 days

0

12

16638

ADAPTER, -10MORING/-10MJIC 90 DEG

$

$

Not available

13

Bear Cat 16684

HOSE ASSEMBLY, -10FMJSW90/-10FMJ X 42

$

$

Not available

14

Bear Cat 31671-00

PUMP, 2 STAGE CW HI/LO 0.605 DISP.

$639.99

$

Usually ships in 3-7 days

0

15

Bear Cat 33376-00

HOSE, -8 FMJ/-6FMJ X 31" HYDRAULIC

$48.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

17

Bear Cat 41289

ADAPTER, -6MORING/-6MJIC 90 DEG

$

$

Not available

18

Bear Cat 73081-00

ADAPTER, HYDRAULIC PUMP FITTING

$49.99

$

Usually ships in 3-7 days

0
