CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) Housing Parts Diagram

5" Chipper, 540cc PTO Driven

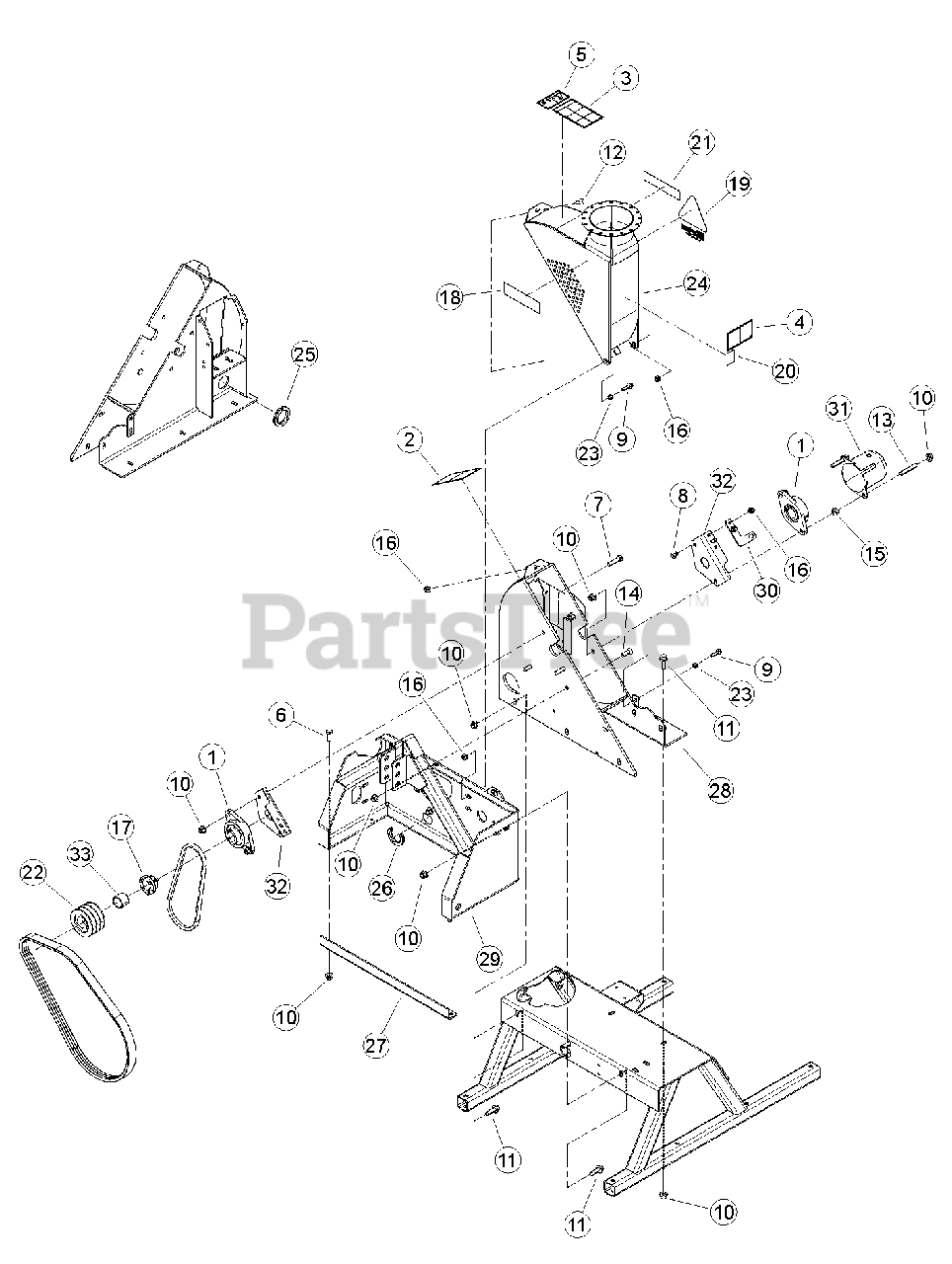

Housing Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

4

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

5

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

6

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

7

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

9

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15230-00

BOLT, 1/2-13 X 1-1/2 GR5 FLANGE NC

$

$

Not available

12

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15481

STUD, 1/2"-13 X 3" LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15571

SCREW, 1/2 X 1-1/2 FLT HD SKT

$

$

Not available

15

Bear Cat 15616

NUT, 1/2 SPIRAL LOCK NC ZP

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 16016

BUSHING, SH 1-1/2"

$60.99

$

Usually ships in 3-7 days

0

18

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

19

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

21

33828-00

DECAL, MODEL CH5540HM

$

$

Not available

22

Bear Cat 35067-00

SHEAVE, 3B3.8 SH

$93.99

$

Usually ships in 3-7 days

0

23

41158

BUSHING

$

$

Not available

24

Bear Cat 72447-35

WELDMENT, CHIPPER TOP

$

$

Not available

25

Bear Cat 72559-00

TRIM, SLOT EDGE COVER

$45.99

$

Usually ships in 3-7 days

0

26

Bear Cat 72561-00

TRIM, SLOT EDGE COVER

$44.99

$

Usually ships in 3-7 days

0

27

Bear Cat 72885-12

BRACE, 3 PT BOTTOM

$

$

Not available

28

Bear Cat 73027-35

WELDMENT, CHIPPER FRAME

$

$

Not available

29

Bear Cat 75034-35

WELDMENT, CHIPPER HITCH

$

$

Not available

30

77758-12

BRACKET, SENSOR

$

$

Not available

31

77759-00

CAP, LARGE SHAFT

$

$

Not available

32

77760-12

PLATE, BEARING MOUNT

$

$

Not available

33

77761-12

SPACER, 1.75 X 1.32 X .120

$

$

Not available
