CH 5540 HM - Bear Cat 5" Chipper, 540cc PTO Hydraulic Feed (SN: H07302 & Above) Feed Roller Parts Diagram

5" Chipper, 540cc PTO Driven

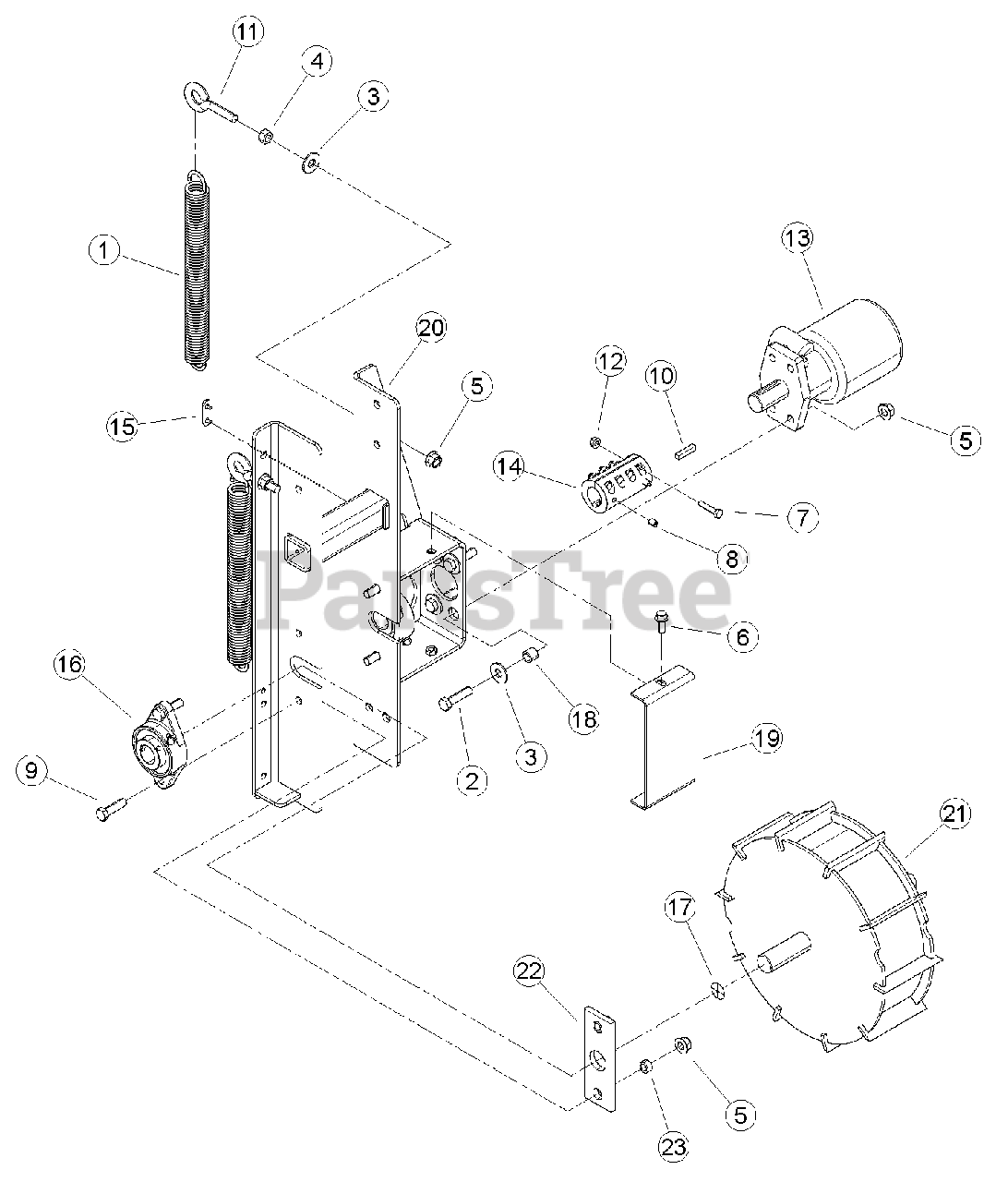

Feed Roller Parts Diagram

  • Title

1

Bear Cat 12504-12

SPRING, EXTENSION

$

$

Not available

2

Bear Cat 15015

BOLT, 1/2 X 2 GR5 HEX CAPSCREW ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

4

Bear Cat 15043

NUT, 1/2" HEX NC ZP

$

$

Not available

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

15282

BOLT, 5/16 X 1-1/2 GR5 HEX CPS ZP

$

$

Not available

8

Bear Cat 15461

SET SCREW, 3/8 X 1/2 CUP PT SKT

$

$

Not available

9

15478

BOLT, 1/2 X 1-3/4 GR5 HCPS NC ZP

$

$

Not available

10

Bear Cat 15498

KEY, 5/16 X 1-1/2 SQUARE

$

$

Not available

11

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 16586

MOTOR, 45 CU IN HYDRAULIC

$1444.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

15

Bear Cat 16683

COUPLER, 1-1/4 SHAFT

$

$

Not available

16

17434

WEAR PAD, STD. SPRING HD FRONT

$

$

Not available

17

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

18

Bear Cat 70534

SPACER, 0.75 X 0.620

$10.99

$

Usually ships in 3-7 days

0

19

Bear Cat 71335

SHIELD, COUPLER

$45.99

$

Usually ships in 3-7 days

0

20

72907-12

WELDMENT, ROLLER SLIDE

$

$

Not available

21

Bear Cat 72911-12

WELDMENT, TOP GRAB ROLLER

$

$

Not available

22

Bear Cat 73248

BEARING, SLIDE

$39.99

$

Usually ships in 3-7 days

0

23

Bear Cat 73249

SPACER, .75 OD X .5 ID X .37

$10.99

$

Usually ships in 3-7 days

0
