CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: G08139 - H04410) Feed Roller Housing Parts Diagram

5" Chipper, 540cc PTO Driven

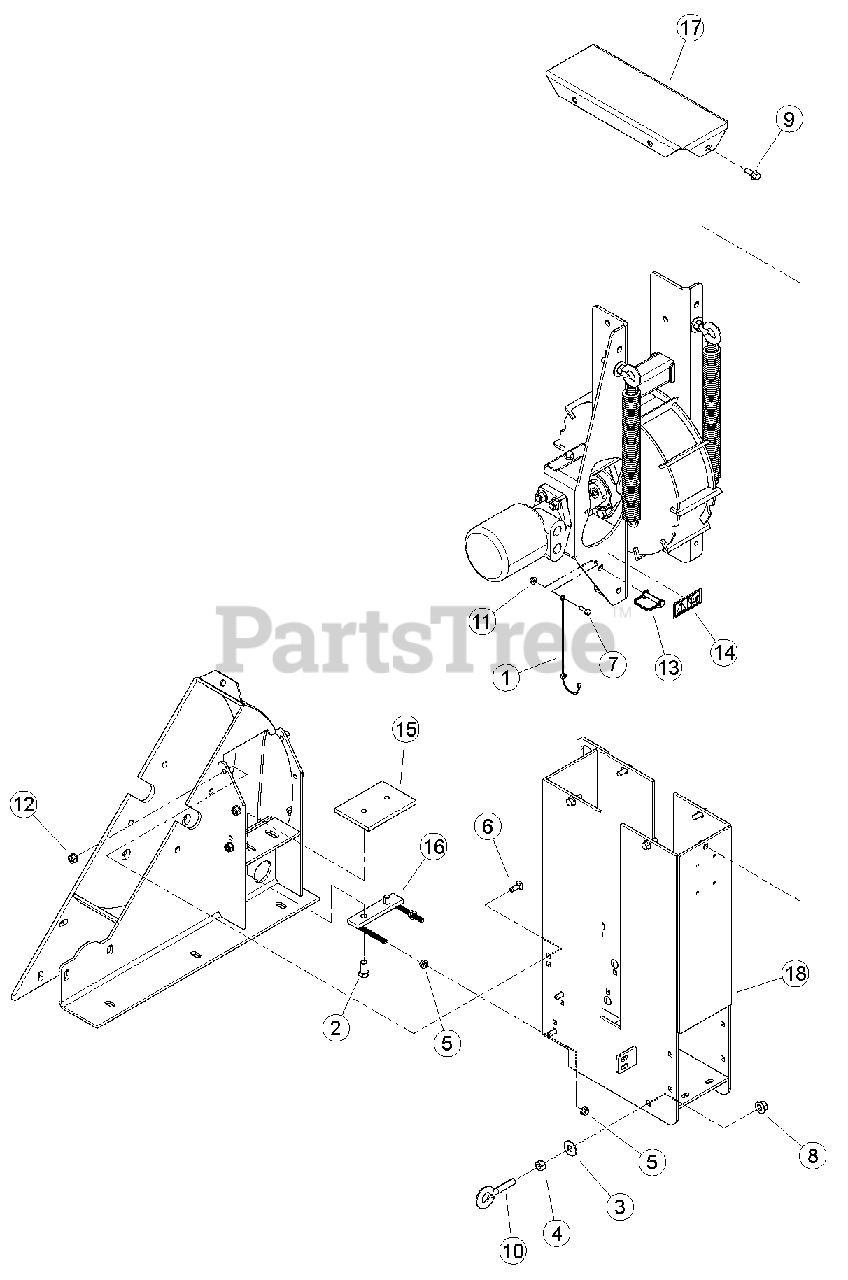

Feed Roller Housing Parts Diagram

  • Title

1

12530

LANYARD, NYLON

$

$

Not available

2

15012

BOLT, 1/2 X 1 GR5 HEX CPSCREW ZP

$

$

Not available

3

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

4

Bear Cat 15043

NUT, 1/2" HEX NC ZP

$

$

Not available

5

Bear Cat 15051

NUT, 3/8" SERRATED FLANGE NC ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" GR5 CRG NC ZP

$

$

Not available

7

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

8

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

Bear Cat 15502

EYEBOLT, 1/2 X 2" ZP

$31.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

13

Bear Cat 17879

PIN, SNAP 3/8 X 1-1/2 USABLE LGH

$

$

Not available

14

Bear Cat 18983-00

DECAL, CRUSHING ISO

$5.49

$

Usually ships in 3-7 days

0

15

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

16

Bear Cat 72446-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

17

Bear Cat 72915-35

WELDMENT, TOP ROLLER COVER

$

$

Not available

18

Bear Cat 73253-35

WELDMENT, ROLLER SUPPORT 5 IN

$

$

Not available
