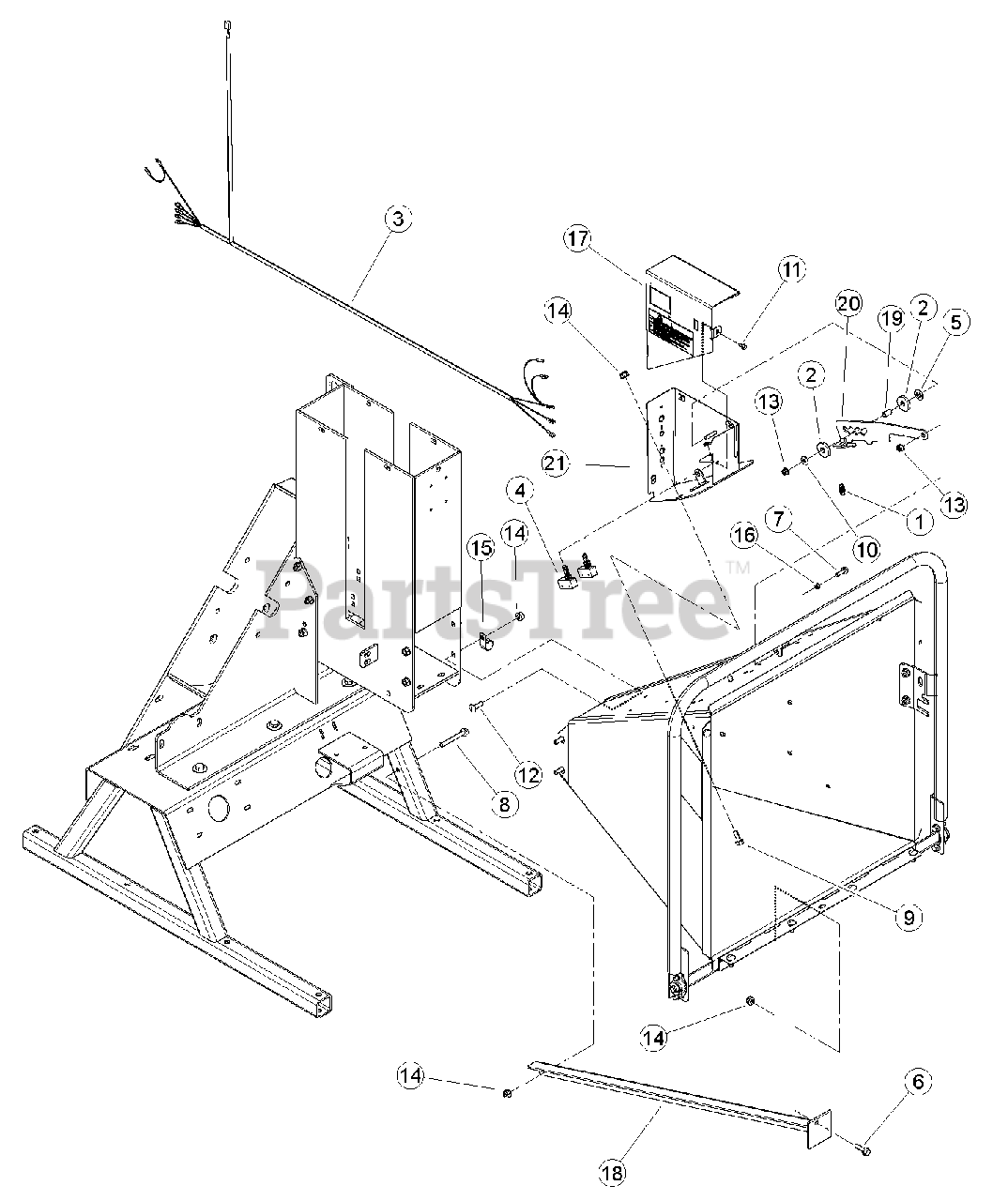

CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Chute (B) NON-CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

5" Chipper, 540cc PTO Driven

Chute (B) NON-CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

  • Title
1

Bear Cat 12620

SPRING, CONTROL BAR

$24.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12621

WASHER, UHMW SPACER .515 ID-1.50 OD

$9.49

$

Usually ships in 3-7 days

0

3

Bear Cat 12745

HARNESS, FEED CONTROL

$237.99

$

Usually ships in 3-7 days

0

4

Bear Cat 13717-00

SWITCH, FEED CONTROL

$105.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15097

WASHER, 1/2" SAE FLAT ZP

$

$

Not available

6

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

7

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

15155-00

BOLT, 3/8 X 3 FLANGE NC

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

11

15344

BOLT, 1/4 X 1/2" SERRATED FLANGE GR5 ZP

$

$

Not available

12

15378

BOLT, 3/8 X 1-1/4" GR5 CRG NC ZP

$

$

Not available

13

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

14

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

16

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

17

70022-00

ASSEMBLY, 5" CONTROL COVER W/ DECAL (REPLACED AND SUPERSEDED 72923-12)

$

$

Not available

18

Bear Cat 73048-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

19

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

20

Bear Cat 73287-12

BAR, SWITCH CONTROL

$

$

Not available

21

Bear Cat 73588-12

WELDMENT, SWITCH MOUNT

$

$

Not available
