CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Chute (B) CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

5" Chipper, 540cc PTO Driven

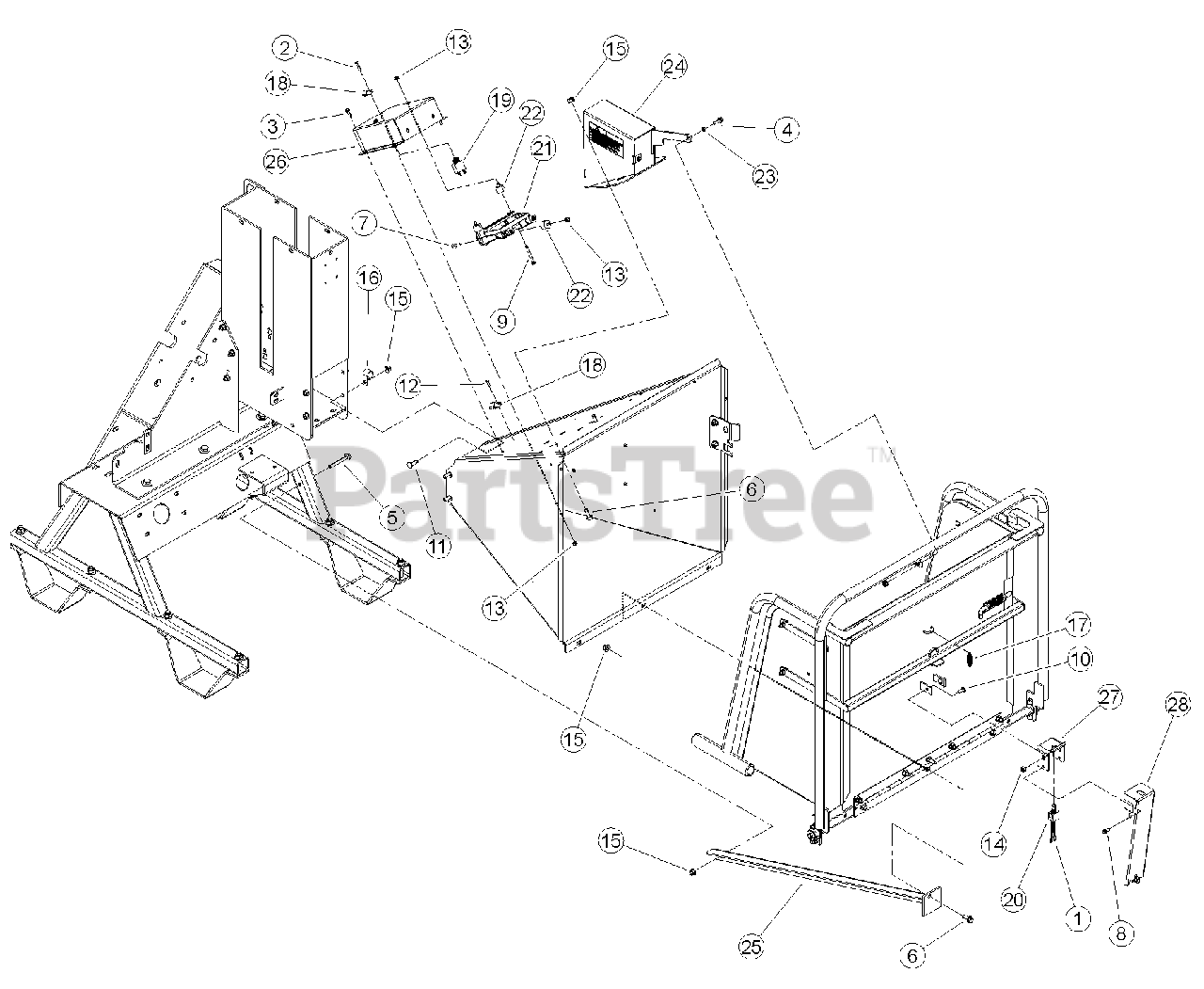

Chute (B) CE COMPLIANT (SN: F03872 - G05696) Parts Diagram

  • Title
1

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

$2.99

$

Usually ships in 3-7 days

0

2

15002

BOLT, 1/4 X 1 GR5 HEX HD ZP

$

$

Not available

3

15079-00

BOLT, 1/4-20 X 3/4 HWH GR5 CZP

$

$

Not available

4

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

5

15155-00

BOLT, 3/8 X 3 FLANGE NC

$

$

Not available

6

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

7

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

8

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

9

Bear Cat 15197

BOLT, 1/4 X 2-1/4 G5 HCS ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8" GR5 NC ZP

$

$

Not available

11

15378

BOLT, 3/8 X 1-1/4" GR5 NC ZP

$

$

Not available

12

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16698

SPRING, 1/2 X 2.00 LG ZP

$21.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)
(Superseded to 32693-00)

$172.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36261-00

BUMPER, 1" OD W/ 1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

23

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

24

71429-00

ASSEMBLY, SWITCH BOX

$

$

Not available

25

Bear Cat 73048-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

26

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0

27

Bear Cat 77532-12

BRACKET, SWITCH (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$56.99

$

Usually ships in 3-7 days

0

28

77534-12

SHIELD, SAFETYBAR SWITCH

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

30599-00

HARNESS, 5 IN PTO PLUS 1 CONTROLLER

Note: (NOT SHOWN)

$

$

Not available
