CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 - G05696) Chute (A) CE COMPLIANT (SN: D00001 - E06501) Parts Diagram

5" Chipper, 540cc PTO Driven

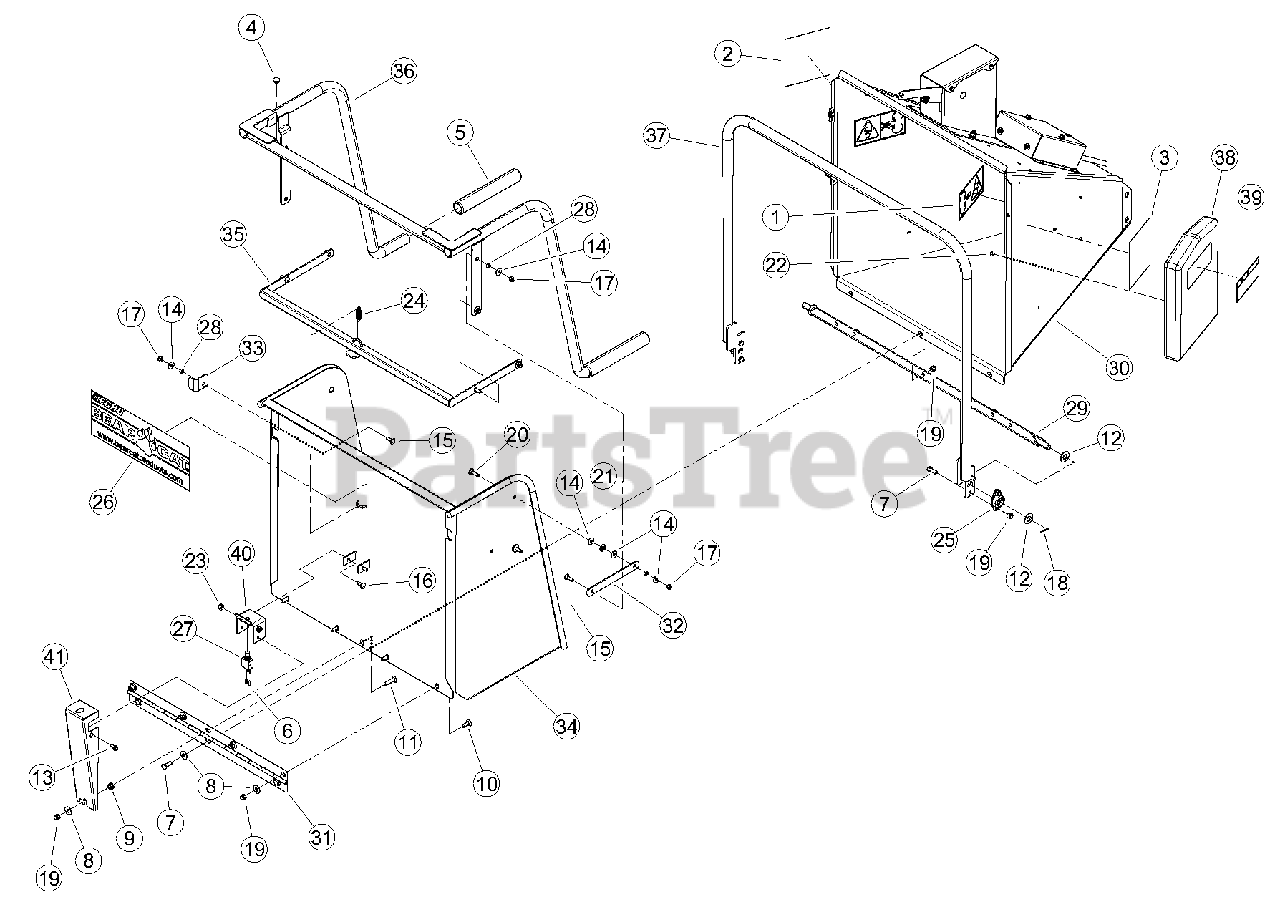

Chute (A) CE COMPLIANT (SN: D00001 - E06501) Parts Diagram

  • Title
1

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

2

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

3

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

4

Bear Cat 13904-00

BUMPER, RUBBER

$2.49

$

Usually ships in 3-7 days

0

5

Bear Cat 14520-00

GRIP, 1.219 X 10.00

$23.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14625-00

CONNECTOR, 1/4 QD MALE

$2.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

10

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

11

15058

BOLT, 3/8 X 1-1/2 CRG GR5 NC ZP

$

$

Not available

12

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

13

15176

SCREW, 11/32 X 7/8 HWH AB THREAD ZP

$

$

Not available

14

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

15

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

16

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

17

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

18

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

19

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

20

Bear Cat 15398

BOLT, 5/16 X 1-1/4" CRG GR5 ZP

$

$

Not available

21

Bear Cat 15409

WASHER, 5/16 ID - 7/8 OD NYLON FLAT

$

$

Not available

22

Bear Cat 15827-00

RIVET, AL BLIND 1/4 X 1/2 DOME HEAD

$1.99

$

Usually ships in 3-7 days

0

23

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

24

Bear Cat 16698

SPRING, 1/2 X 2.00 LG ZP

$21.99

$

Usually ships in 3-7 days

0

25

Bear Cat 17897

BEARING, 5/8 SIDE FLANGE MOUNT

$34.99

$

Usually ships in 3-7 days

0

26

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

27

Bear Cat 32375-00

SWITCH, MOMENTARY IP67 NORMALLY ON (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)
(Superseded to 32693-00)

$172.99

$

Usually ships in 3-7 days

0

28

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

29

Bear Cat 71526

WELDMENT, CONTROL PIVOT

$

$

Not available

30

72451-35

WELDMENT, 4 IN. CHIPPER CHUTE

$

$

Not available

31

Bear Cat 72568-12

HINGE, EXTENSION TRAY

$

$

Not available

32

Bear Cat 74157-12

LINK, PARALLEL

$

$

Not available

33

Bear Cat 74222-12

LOCK, SAFETY BAR

$54.99

$

Usually ships in 3-7 days

0

34

75315-12

WELDMENT, EXTENSION TRAY

$

$

Not available

35

75316-12

WELDMENT, PIVOT TUBE

$

$

Not available

36

75317-35

WELDMENT, SAFETY BAR

$

$

Not available

37

Bear Cat 75318-12

WELDMENT, CONTROL ARM

$309.99

$

Usually ships in 3-7 days

0

38

Bear Cat 77113-00

ASSEMBLY, MANUAL CONTAINER, SERVICE PART

Note: (INCLUDES ITEM 39)

$89.99

$

Usually ships in 3-7 days

0

39

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

40

Bear Cat 77532-12

BRACKET, SWITCH (FOR SERVICE ORDER KIT 77536-00, CONTROL SWITCHES)

$56.99

$

Usually ships in 3-7 days

0

41

77534-12

SHIELD, SAFETYBAR SWITCH

$

$

Not available
