CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) Chute (NON-CE COMPLIANT) (Part 1) Parts Diagram

5" Chipper, 540cc PTO Driven

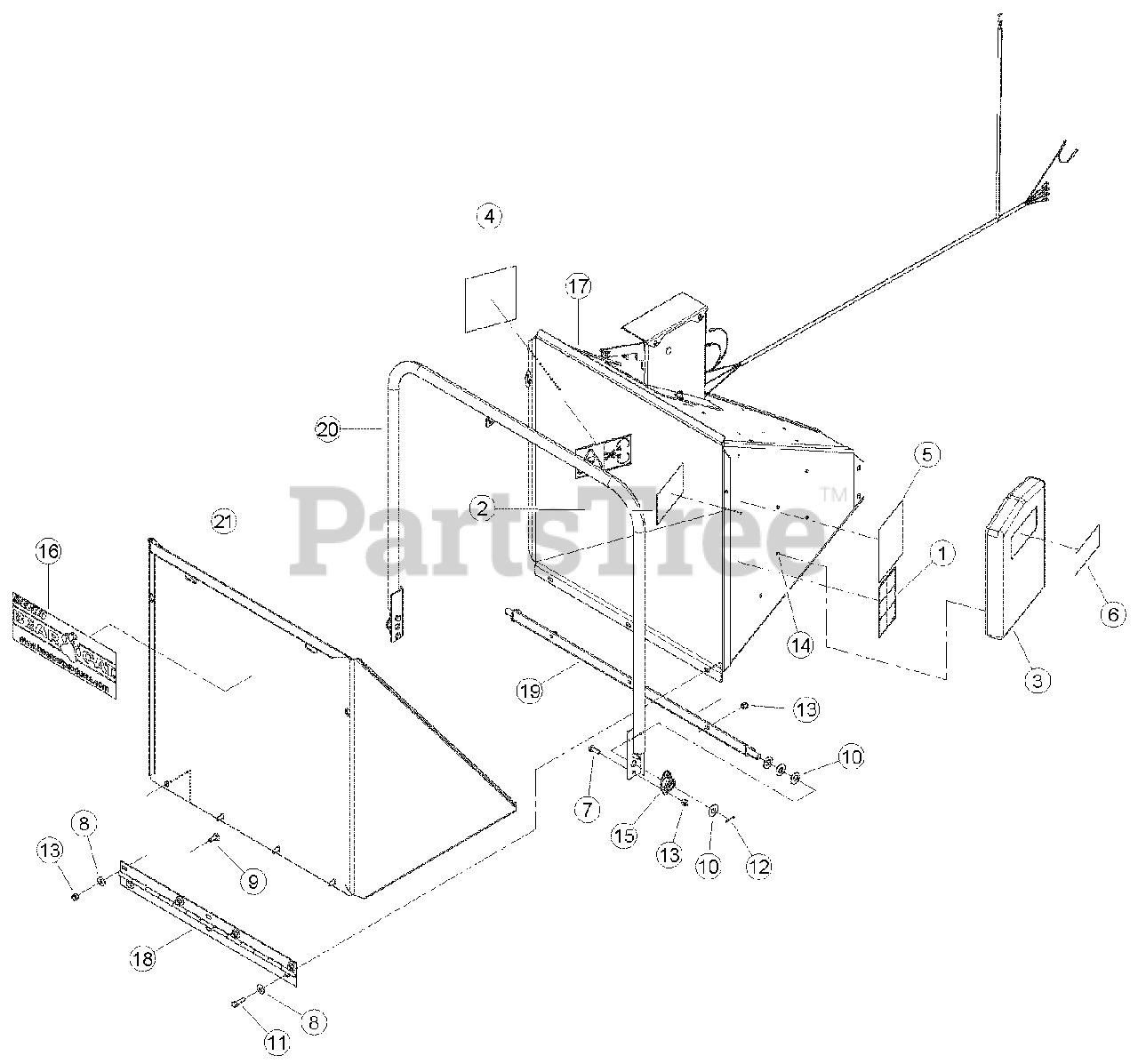

Chute (NON-CE COMPLIANT) (Part 1) Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

3

Bear Cat 12614

CONTAINER, INSTRUCTION MANUAL
(Superseded to 77113-00)

$89.99

$

Usually ships in 3-7 days

0

4

Bear Cat 12747

DECAL, FEED POSITION

$7.99

$

In Stock, only 1 left!

0

5

Bear Cat 12748

DECAL, FEED POSITION

$10.99

$

In Stock, only 1 left!

0

6

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

7

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

10

15129

WASHER, 5/8 SAE FLAT ZP

$

$

Not available

11

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15375

PIN, 1/8 X 1.00 ZP COTTER

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

15497

RIVET, 1/4 X 1/2 DOME HD BLIND SS

$

$

Not available

15

Bear Cat 17897

BEARING, 5/8 SIDE FLANGE MOUNT

$34.99

$

Usually ships in 3-7 days

0

16

Bear Cat 31484-00

DECAL, BEARCAT WEB

$26.99

$

Usually ships in 3-7 days

0

17

WELDMENT, 5 IN. CHIPPER CHUTE (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77114-00)

$

$

Not available

18

Bear Cat 72568-12

HINGE, EXTENSION TRAY

$

$

Not available

19

72917-12

WELDMENT, CONTROL PIVOT

$

$

Not available

20

Bear Cat 72919-12

WELDMENT, CONTROL ARM

$

$

Not available

21

Bear Cat 72921-12

WELDMENT, CHUTE EXTENTION TRAY

$644.99

$

Usually ships in 3-7 days

0
