CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) Chute (CE COMPLIANT) (Part 2) Parts Diagram

5" Chipper, 540cc PTO Driven

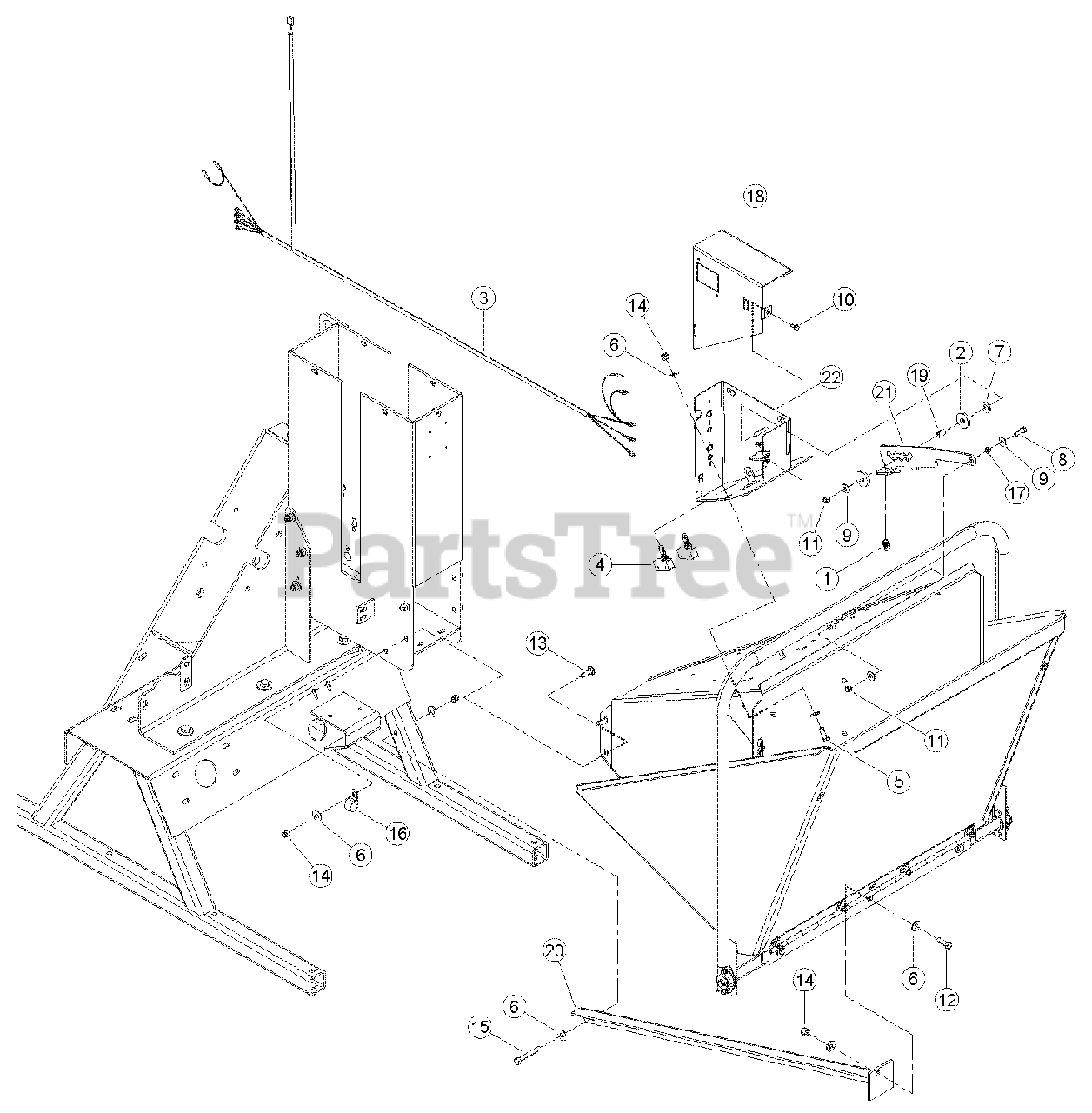

Chute (CE COMPLIANT) (Part 2) Parts Diagram

  • Title
1

15002

BOLT, 1/4 X 1 HEX GR5 ZP

$

$

Not available

2

Bear Cat 15006

BOLT, 3/8 X 1 HEX GR5 ZP

$

$

Not available

3

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15197

BOLT, 1/4 X 2-1/4 HEX GR5 ZP

$

$

Not available

6

15214

BOLT, 1/4 X 1-1/4 HEX GR5 ZP

$

$

Not available

7

Bear Cat 15219

BOLT, 5/16 X 1 HEX GR5 NC ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15343

BOLT, 1/4 X 5/8 HEX GR5 ZP

$

$

Not available

10

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

15364

BOLT, 3/8 X 1-1/4 HEX GR5 ZP

$

$

Not available

13

15378

BOLT, 3/8 X 1-1/4 CRG GR5 ZP

$

$

Not available

14

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

15

Bear Cat 15437

BOLT, 3/8 X 2-3/4 HEX GR5 ZP

$

$

Not available

16

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16414

CLAMP, 1" COATED METAL

$14.99

$

Usually ships in 3-7 days

0

18

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

19

Bear Cat 18551-00

CIRCUIT BREAKER, 10 AMP RESETTABLE

$53.99

$

Usually ships in 3-7 days

0

20

Bear Cat 32102-00

HARNESS, 5 IN PTO PLUS 1 CONTROLLER

$597.99

$

Usually ships in 3-7 days

0

Bear Cat 32108-00

SENSOR, M12 PNP PROXIMITY

$181.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36258-00

CONTROLLER, PLUS 1 CHIPPER

$1782.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36261-00

BUMPER, 1" OD W/1/4" STUD

$33.99

$

Usually ships in 3-7 days

0

23

Bear Cat 69126

SPACER, IDLER PIVOT

$

$

Not available

24

Bear Cat 73048-12

WELDMENT, CHUTE SUPPORT

$

$

Not available

25

Bear Cat 75961-12

ENCLOSURE, PLUS 1 MOUNT

$106.99

$

Usually ships in 3-7 days

0

26

Bear Cat 77530-00

ASSEMBLY, SWITCH BOX

$600.99

$

Usually ships in 3-7 days

0

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
