CH 5540 H - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C07334) Base Parts Diagram

5" Chipper, 540cc PTO Driven

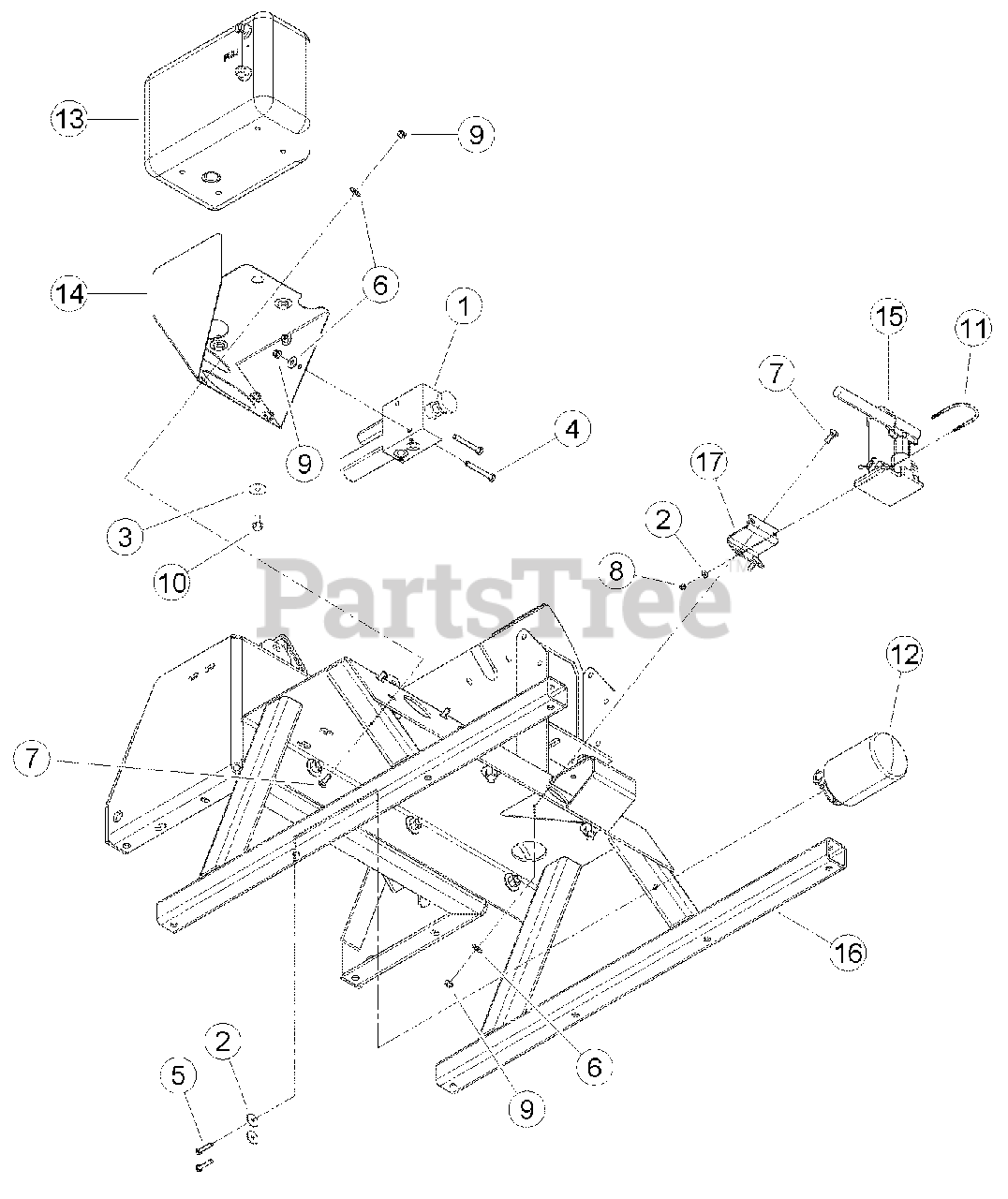

Base Parts Diagram

  • Title

1

Bear Cat 12646

VALVE, HYDRAULIC CONTROL

$1425.99

$

Usually ships in 3-7 days

0

2

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

3

Bear Cat 15041

WASHER, 3/8 FENDER ZP

$

$

Not available

4

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

5

15214

BOLT, 1/4 X 1-1/4 HCS GR5 ZP

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

8

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

9

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

10

15617

BOLT, 3/8 X 3/4 SERR FLANGE

$

$

Not available

11

Bear Cat 15768-00

U-BOLT, 1/4 X 1-1/2 PIPE

$8.99

$

Usually ships in 3-7 days

0

12

Bear Cat 16588

FILTER, SPIN-ON

$112.99

$

Usually ships in 3-7 days

0

13

Bear Cat 36322-00

TANK, HYDRAULIC

$356.99

$

Usually ships in 3-7 days

0

14

Bear Cat 73032-12

WELDMENT, RESERVIOR BASE

$

$

Not available

15

Bear Cat 73722-12

JACK, HYDRAULIC 2 TON

$

$

Not available

16

74243-12

WELDMENT, PTO STAND

$

$

Not available

17

75028-12

MOUNT, JACK

$

$

Not available
