CH 5540 - Bear Cat 5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Housing (B) (D00001 - E00686) Parts Diagram

5" Chipper, 540cc PTO Driven

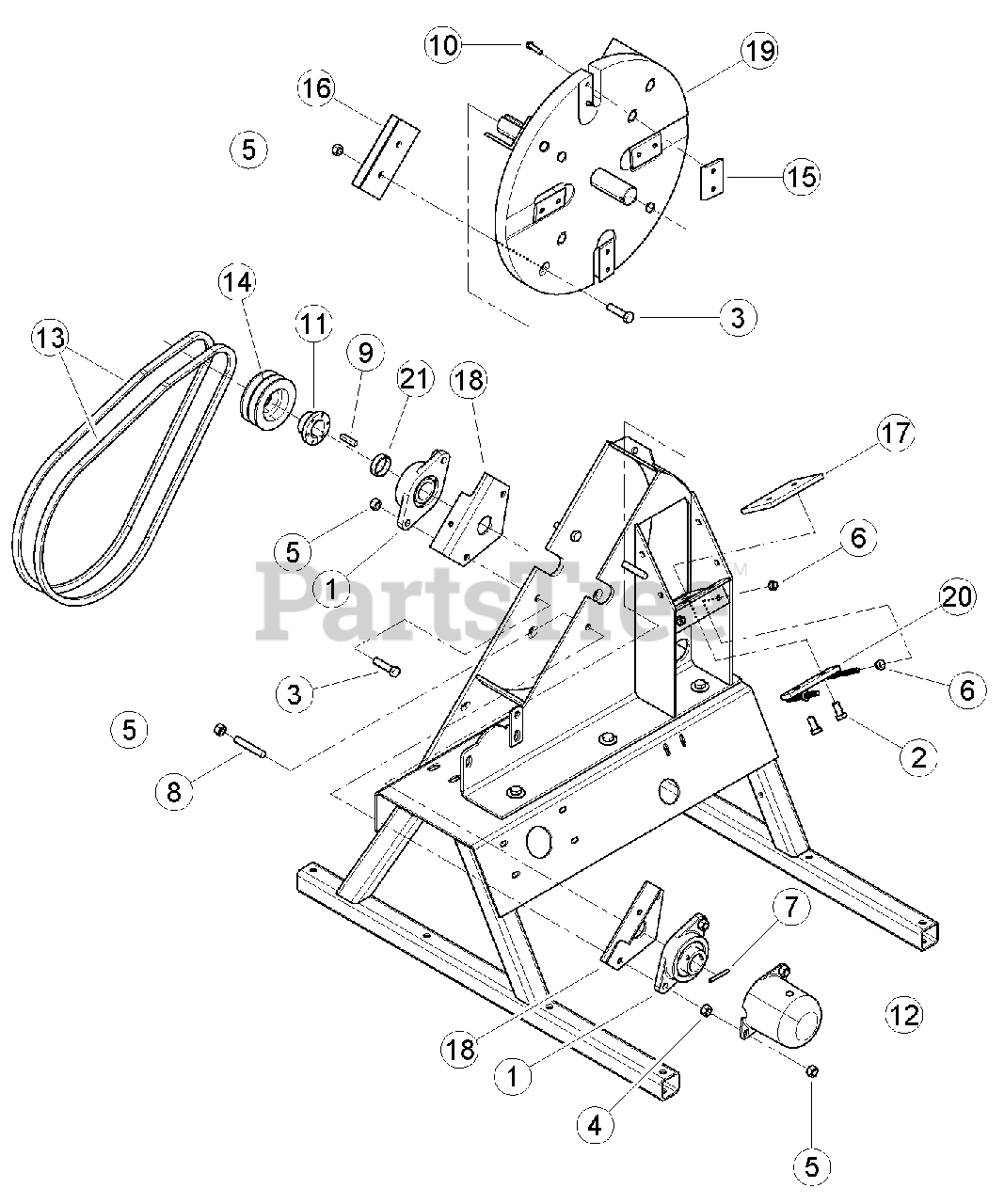

Housing (B) (D00001 - E00686) Parts Diagram

  • Title

1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

15012

BOLT, 1/2 X 1 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

5

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

6

Bear Cat 15051

NUT, 3/8 SERRATED FLANGE NC ZP

$

$

Not available

7

Bear Cat 15137

SPRING PIN, 1/4 X 2 LONG

$0.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15481

STUD, 1/2-13 X 3 LONG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

9

KEY, 5/16 SQUARE X 1-1/2 LONG (WAS 15498, REMOVED)

$

$

Not available

10

Bear Cat 15565

BOLT, 5/16 X 1-1/4 HHD GR8 PATCH

$1.49

$

In Stock, only 2 left!

0

11

Bear Cat 16016

BUSHING, SH 1-1/2"

$60.99

$

Usually ships in 3-7 days

0

12

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

13

V-BELT, BX-56 SINGLE (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PART 32883-00)

$

$

Not available

14

SHEAVE 2B 4.0 SH, QD (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 32899-00)

$

$

Not available

15

BLADE, TWO EDGE TOOL STEEL (FOR SERVICE ORDER BLADE KIT 72493)

$

$

Not available

15

Bear Cat 72493

KIT, CHIPPER BLADE

$211.99

$

Usually ships in 3-7 days

0

16

ANGLE, CHIPPER THROWER (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77730-00)

$

$

Not available

17

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

18

Bear Cat 72433-12

PLATE, BEARING MOUNT

$

$

Not available

19

WELDMENT, CHIPPER DISK (REPLACED AND SUPERSEDED 72444. FOR SERVICE ORDER PN 77757-00)

$

$

Not available

20

Bear Cat 72446-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

21

SPACER, 1-3/4 X 7/16 X .120 (REPLACED AND SUPERSEDED. FOR SERVICE ORDER PN 77734-12)

$

$

Not available
