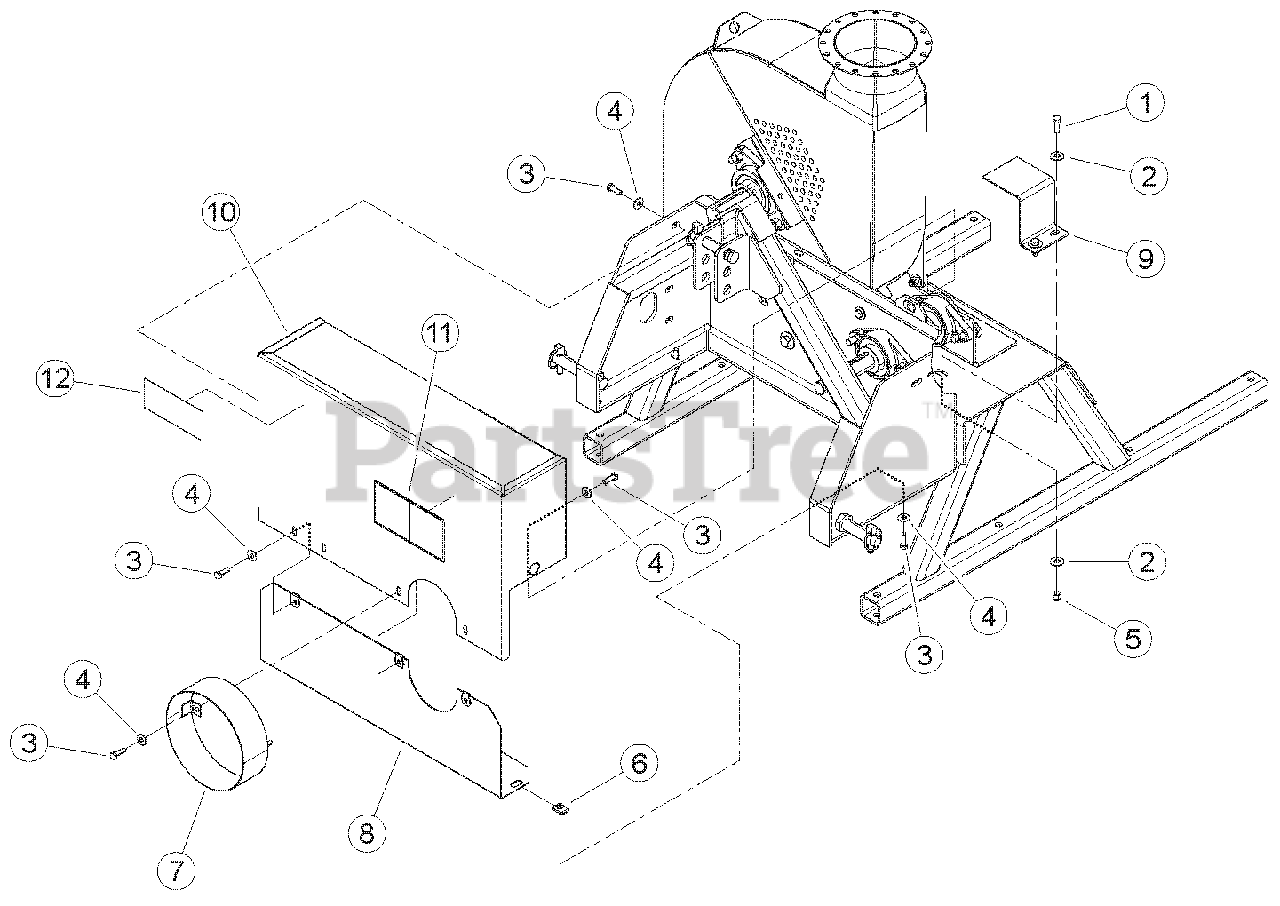

CH 5540 - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C08854) Shields Parts Diagram

5" Chipper, 540cc PTO Driven

Shields Parts Diagram

  • Title
1

Bear Cat 15006

DECAL, PTO DANGER ISO

$

$

Not available

2

Bear Cat 15031

DECAL, MUTILINGUAL MANUAL

$

$

Not available

3

Bear Cat 15219

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

4

Bear Cat 15250

WASHER, 3/8 FLAT ZP

$

$

Not available

5

Bear Cat 15388

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

6

Bear Cat 15402

WASHER, 5/16 FLAT ZP

$

$

Not available

7

Bear Cat 70442

NUT, 3/8 NE NYLOCK ZP

$93.99

$

Usually ships in 3-7 days

0

8

Bear Cat 72481-12

NUT, 5/16-18 TINNERMAN U-TYPE

$

$

Not available

9

Bear Cat 72518-12

WELDMENT, JOINT SHIELD

$

$

Not available

10

Bear Cat 77468-00

WELDMENT, UPPER BELT GUARD

$306.99

$

Usually ships in 3-7 days

0

11

Bear Cat 12168

GUARD, LOWER BELT

$9.99

$

Usually ships in 3-7 days

0

12

Bear Cat 14942-00

COVER, JACKSHAFT

$3.49

$

Usually ships in 3-7 days

0
