CH 5540 - Bear Cat 5" Chipper, 540cc PTO Driven (SN: B00001 - C08854) Discharge Chute Parts Diagram

5" Chipper, 540cc PTO Driven

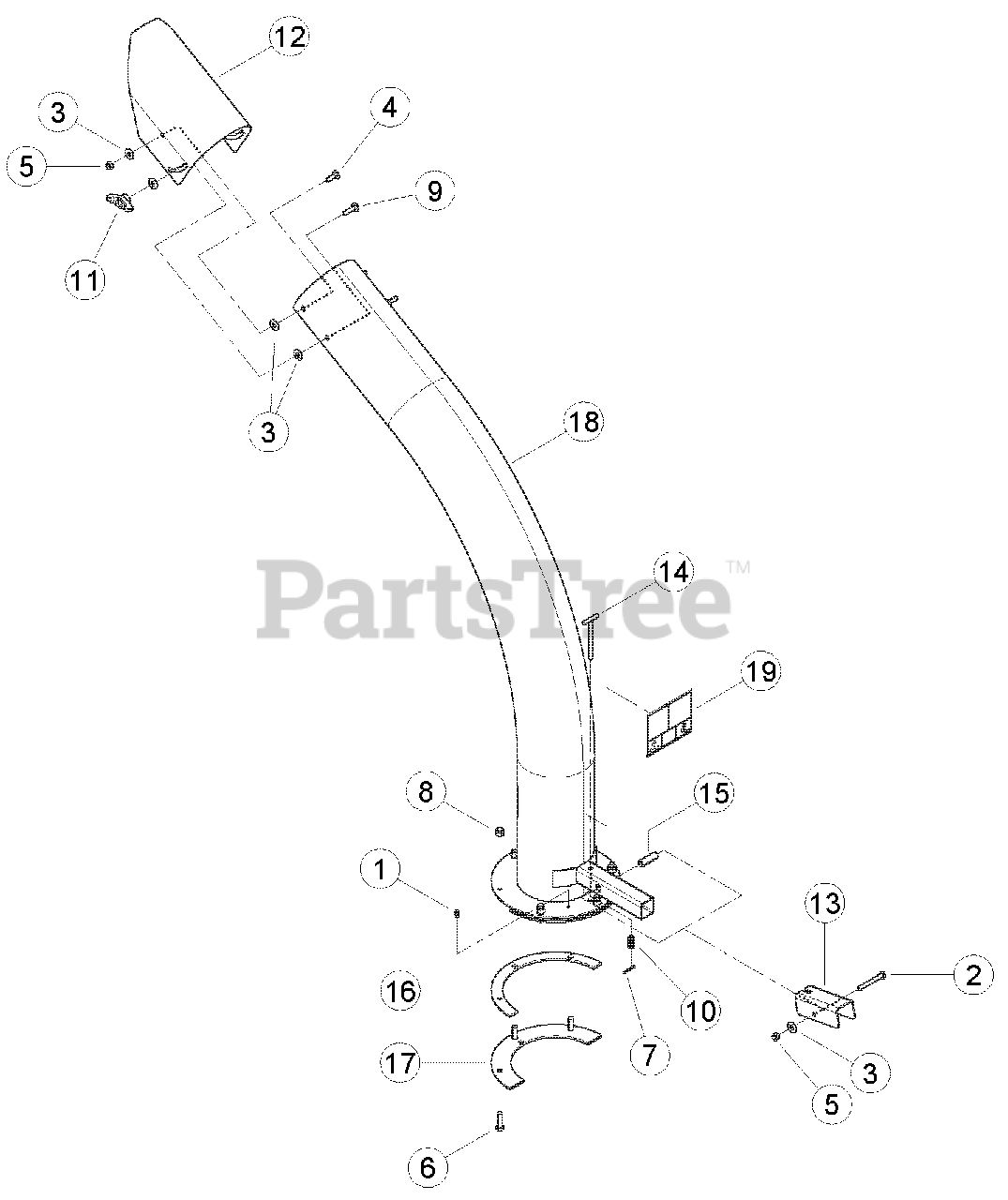

Discharge Chute Parts Diagram

  • Title
1

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

2

Bear Cat 15154

BOLT, 5/16 X 2-1/2 HEX HD GR5 ZP

$

$

Not available

3

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

4

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15375

PIN, 1/8 X 1.00 COTTER ZP

$

$

Not available

8

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

9

Bear Cat 15398

BOLT, 5/16 X 1-1/4 CRG GR5 ZP

$

$

Not available

10

Bear Cat 16556

SPRING, LOCK COMPRESSION

$7.99

$

Usually ships in 3-7 days

0

11

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE W/LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

12

Bear Cat 71081

DEFLECTOR, BLOWER-VAC DISCHARGE

$

$

Not available

13

Bear Cat 71252

LEVER, DISCHARGE LOCK

$43.99

$

Usually ships in 3-7 days

0

14

Bear Cat 71253

WELDMENT, DISCHARGE LOCK PIN

$45.99

$

Usually ships in 3-7 days

0

15

Bear Cat 71256

TUBE, DISCHARGE LOCK PIVOT

$14.99

$

Usually ships in 3-7 days

0

16

Bear Cat 72452-12

SPACER, DISCHARGE PIVOT

$

$

Not available

17

Bear Cat 72453-12

RING, DISCHARGE CLAMP

$

$

Not available

18

Bear Cat 77116-00

ASSEMBLY, 6 INCH DISCHARGE SERVICE PART

$647.99

$

Usually ships in 3-7 days

0

19

Bear Cat 32109-00

DECAL, DISCHARGE DEBRIS & LOCK

$18.99

$

Usually ships in 3-7 days

0
