CH 500 H - Bear Cat 5" Chipper, Skid Steer (SN: B00001 - C07503) Housing Parts Diagram

5" Chipper, Skid Steer

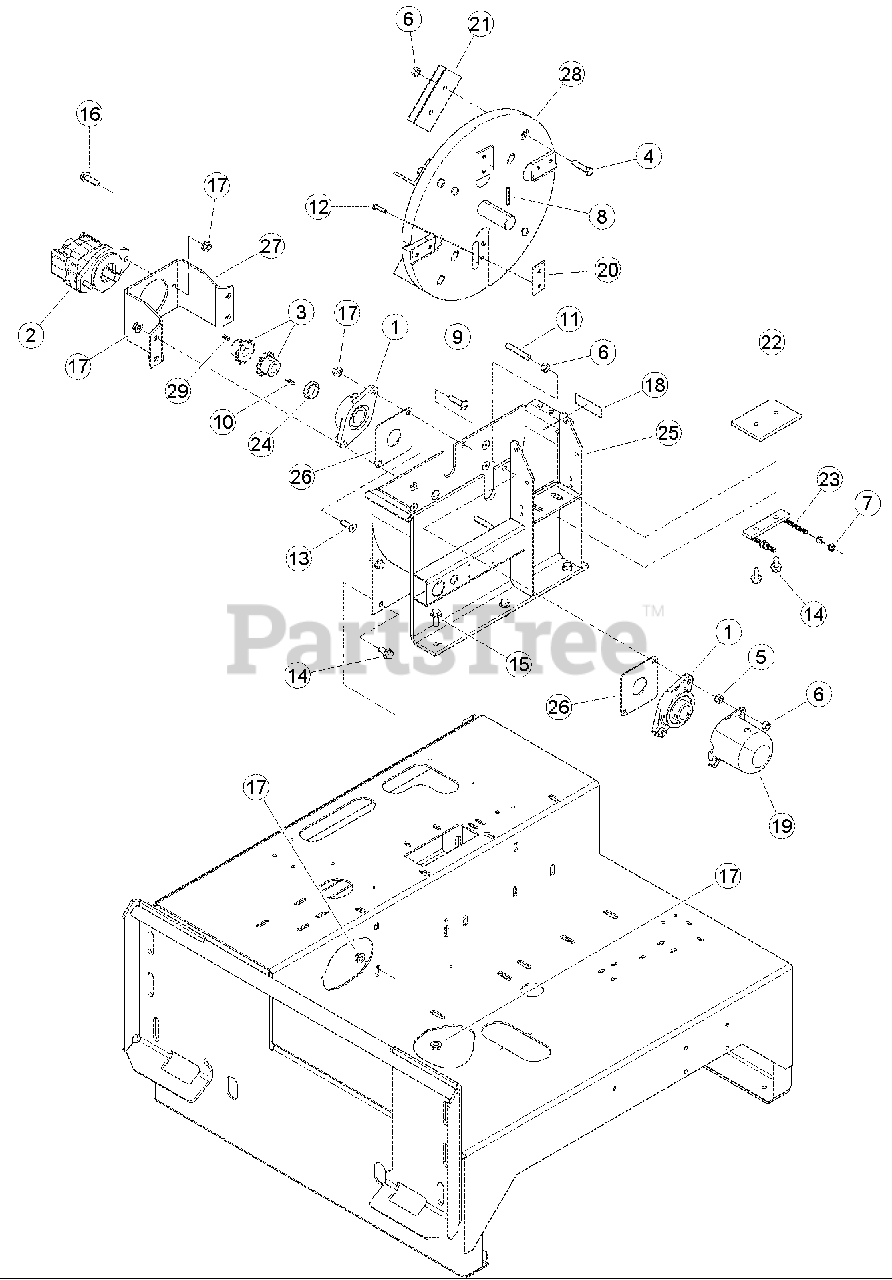

Housing Parts Diagram

  • Title
1

Bear Cat 12117

BEARING, 1-1/2" 2-BOLT SET SCREW

$83.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12765

MOTOR, 1.24 CU. IN. HYD

$1984.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12804

COUPLER, CHAIN 7/8" I.D.

$71.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15015

BOLT, 1/2 X 2 HEX HD GR5 ZP

$

$

Not available

5

Bear Cat 15043

NUT, 1/2 HEX NC ZP

$

$

Not available

6

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

7

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

8

Bear Cat 15137

SPRINGPIN, 1/4 X 2 LONG

$0.99

$

Usually ships in 3-7 days

0

9

15339

BOLT, 1/2 X 2 CRG GR5 ZP

$

$

Not available

10

Bear Cat 15372

KEY, 3/16 SQUARE X 1 LONG

$1.49

$

In Stock, only 1 left!

0

11

Bear Cat 15481

STUD, 1/2-13 X 3 LG B7 ZP

$17.99

$

Usually ships in 3-7 days

0

12

Bear Cat 15565

BOLT, 5/16 X 1-1/4 HEX HD GR8 PATCH

$1.49

$

In Stock, only 2 left!

0

13

Bear Cat 15571

SCREW, 1/2 X 1-1/2 FLT HD SKT

$

$

Not available

14

Bear Cat 15611

BOLT, 1/2 X 1 SERR FLANGE

$

$

Not available

15

Bear Cat 15612

BOLT, 1/2 X 1-1/4 SERR FLANGE

$

$

Not available

16

Bear Cat 15613

BOLT, 1/2 X 1-1/2 SERR FLANGE

$

$

Not available

17

Bear Cat 15616

NUT, 1/2 SERR FLANGE NC ZP

$

$

Not available

18

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

19

Bear Cat 16460

CAP, LARGE SHAFT

$

$

Not available

20

BLADE, TWO EDGE TOOL STEEL (FOR SERVICE ORDER KIT #72493)

$

$

Not available

20

Bear Cat 72493

KIT, CHIPPER BLADE

$211.99

$

Usually ships in 3-7 days

0

21

Bear Cat 72411

ANGLE, CHIPPER THROWER

$48.99

$

Usually ships in 3-7 days

0

22

Bear Cat 72420-12

ANVIL, 4 INCH CHIPPER

$

$

Not available

23

Bear Cat 72446-12

WELDMENT, BLOCK ADJUSTOR

$

$

Not available

24

Bear Cat 72499-12

SPACER, 1-3/4 X 7/16 X .120

$

$

Not available

25

Bear Cat 73102-35

WELDMENT, BOTTOM CHIPPER HOUSING

$1185.99

$

Usually ships in 3-7 days

0

26

73103-12

PLATE, BEARING

$

$

Not available

27

73104-12

MOUNT, ROTOR MOTOR

$

$

Not available

28

Bear Cat 73107

WELDMENT, ROTOR (BOBCAT)

$1924.99

$

Usually ships in 3-7 days

0

29

Bear Cat 73240

KEY, 3/16 X 1/4 X 3/4 STEP

$22.99

$

Usually ships in 3-7 days

0

Bear Cat 12807

CHAIN, COUPLER NO.60 W/LINK

Note: (NOT SHOWN)

$31.99

$

Usually ships in 3-7 days

0
