CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Rotor, Blades & Bearings (SN: E02730 - CURRENT) Parts Diagram

4.5" Chipper, 540cc PTO Driven

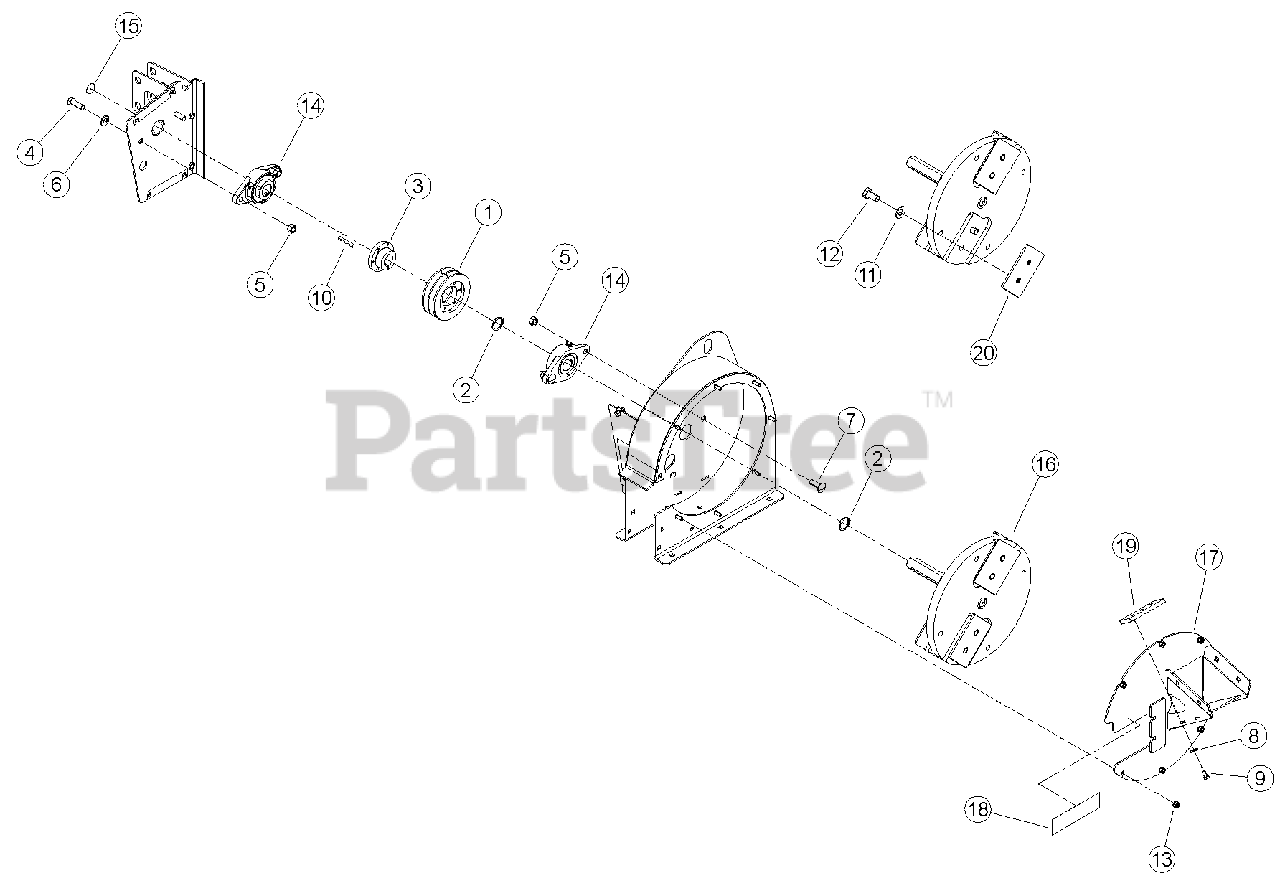

Rotor, Blades & Bearings (SN: E02730 - CURRENT) Parts Diagram

  • Title

1

Bear Cat 12145

SHEAVE, 2B4.8 SDS

$114.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14768-00

SNAP RING, 1-1/4 EXT. HEAVY DUTY

$7.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14769-00

BUSHING, SDS 1-1/4"

$67.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15014

BOLT, 1/2 X 1-1/2" HEX HD GR5 ZP

$1.49

$

In Stock, only 3 left!

0

5

Bear Cat 15049

NUT, 1/2" CENTERLOCK GRB ZP

$

$

Not available

6

Bear Cat 15097

WASHER, 1/2" SAE FLAT ZP

$

$

Not available

7

Bear Cat 15220-00

BOLT, 1/2 X 1-1/2 CRG SN GR5 ZP

$5.99

$

Usually ships in 3-7 days

0

8

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

9

15300

BOLT, 5/16 X 5/8 GR5 HEX CPS ZP

$

$

Not available

10

Bear Cat 15391

KEY, 1/4 SQ X 2" PLAIN

$

$

Not available

11

Bear Cat 15770-00

WASHER, 5/8 SAE HARDENED

$2.49

$

Usually ships in 3-7 days

0

12

Bear Cat 15833-00

BOLT, M16 X 2.0 X 30 HEX HD W/ PATCH

$11.99

$

Usually ships in 3-7 days

0

13

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 16682

BEARING, 1-1/4" DIA 2 BOLT FLANGE

$

$

Not available

15

Bear Cat 18061-00

DECAL, ROTATING SHAFT

$11.99

$

Usually ships in 3-7 days

0

16

Bear Cat 32961-00

WELDMENT, 4-1/2 PTO DISK
(Superseded to 77798-00)

$995.99

$

Usually ships in 3-7 days

0

17

Bear Cat 70026-00

ASSEMBLY, DISK COVER, SERVICE PART

Note: (INCLUDES ITEM 18)

$

$

Not available

18

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

19

Bear Cat 74529-00

ANVIL, CHIPPER

$54.99

$

Usually ships in 3-7 days

0

20

BLADE, BIG CHIPPER (FOR SERVICE ORDER REPLACEMENT BLADE KIT 76295-00)

$

$

Not available

20

Bear Cat 76295-00

KIT, 4-1/2 CHIPPER BLADE (1/2")

$

$

Not available
