CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Optional Discharge Chute Parts Diagram

4.5" Chipper, 540cc PTO Driven

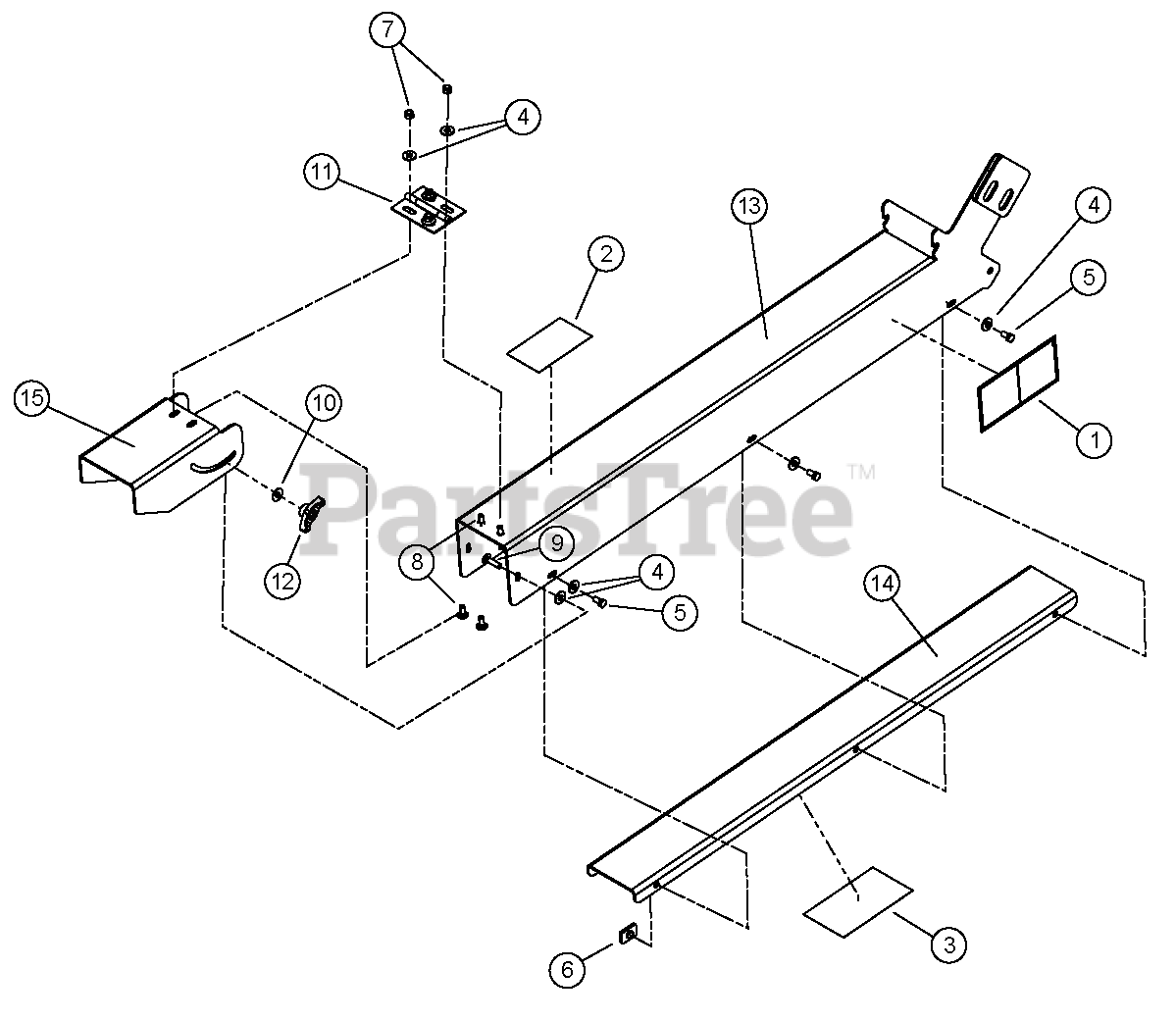

Optional Discharge Chute Parts Diagram

  • Title
1

Bear Cat 12169

DECAL, KNIFE ACCESS

$13.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12173

DECAL, DISCHARGE

$3.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12175

DECAL, INLET AND DISCHARGE

$6.99

$

In Stock, only 1 left!

0

4

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

5

15300

BOLT, 5/16 X 5/8" HHCS GR5 ZP

$

$

Not available

6

15318

WASHER, 5/16" ID, 7/8" OD NYLON FLAT

$

$

Not available

7

Bear Cat 15356

NUT, 5/16" NE NYLOCK ZP

$

$

Not available

8

Bear Cat 15367

BOLT, 5/16 X 3/4" CARRIAGE NC GR5 ZP

$

$

Not available

9

Bear Cat 15398

BOLT, 5/16 X 1-1/4" CARRIAGE GR5 ZP

$

$

Not available

10

Bear Cat 15409

WASHER, 5/16 NYLON

$

$

Not available

11

73959

HINGE, DISCHARGE CAP

$

$

Not available

12

Bear Cat 31994-00

KNOB, 5/16-18 UNC TEE WITH LOCKING INSERT

$8.99

$

Usually ships in 3-7 days

0

13

70017-12

WELDMENT, CHIPPER DISCHARGE

$

$

Not available

14

74567-00

WELDMENT, TOP DISCHARGE CHUTE

$

$

Not available

15

Bear Cat 74569-12

CAP, DISCHARGE

$

$

Not available
