CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: D00001 & Above) Idler Parts Diagram

4.5" Chipper, 540cc PTO Driven

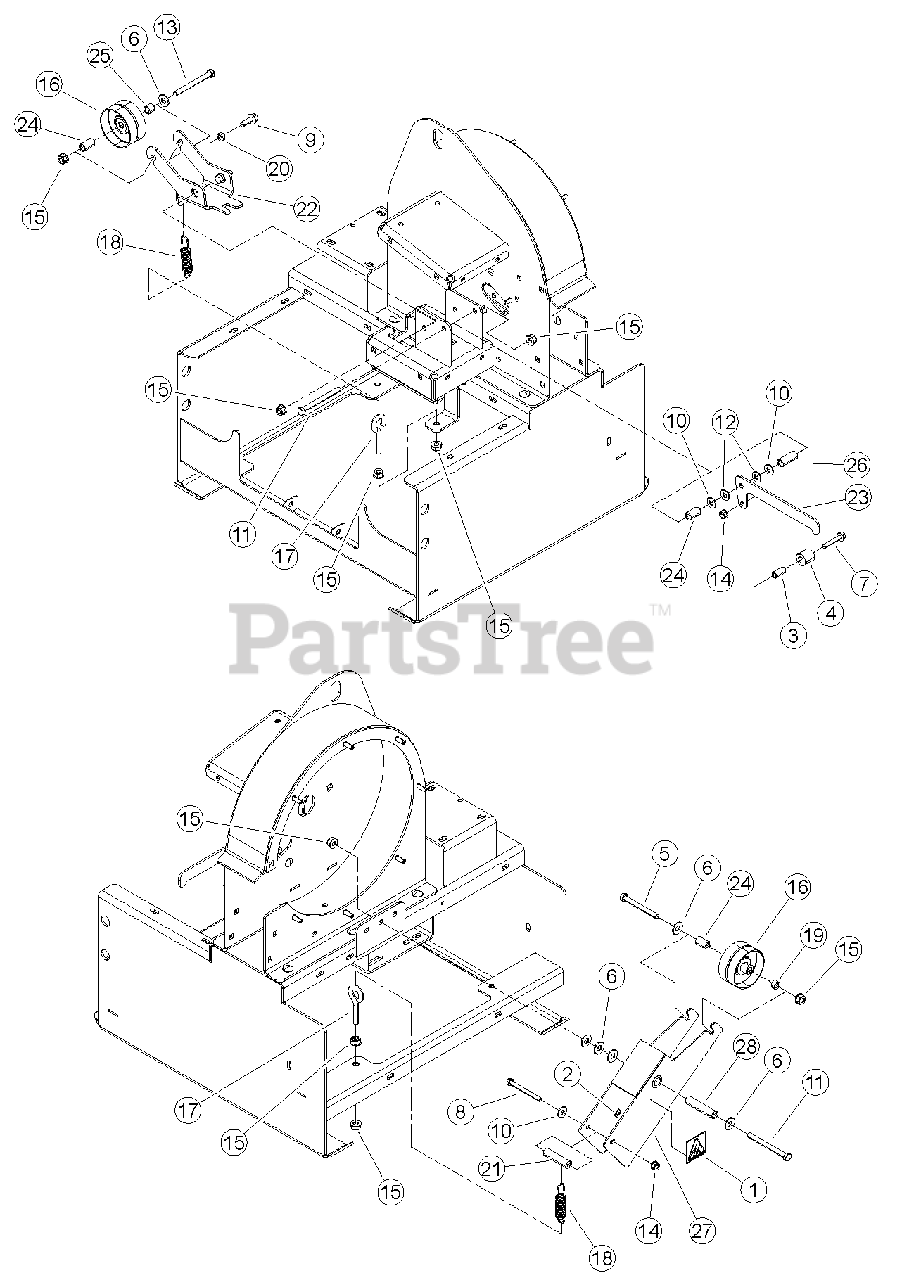

Idler Parts Diagram

  • Title
1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15010

BOLT, 3/8 X 3-1/2" HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

7

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4" FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

8

15136

BOLT, 5/16 X 3-1/4" GR5 HCPS

$

$

Not available

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16" FLAT ZP

$

$

Not available

11

15272

BOLT, 3/8 X 4" HHCS GR5 NC ZP

$

$

Not available

12

15509

WASHER, FLAT 3/8" NYLON .062 TH

$

$

Not available

13

15756-00

BOLT, 3/8 X 3-3/4 HEX HD GR5 ZP

$

$

Not available

14

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

17

17416

EYE BOLT, G-2, 3/8 X 2" ZP

$

$

Not available

18

Bear Cat 17692

SPRING, 3/4" OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

19

41158

BUSHING

$

$

Not available

20

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

21

71944

SPACER, .63 X 2.44

$

$

Not available

22

Bear Cat 74948-12

BRACKET, IDLER

$

$

Not available

23

Bear Cat 74949-12

LEVER, ENGAGEMENT

$

$

Not available

24

74991-00

SPACER, .63 X 1.035

$

$

Not available

25

74992-00

SPACER,.63 X .515

$

$

Not available

26

74993-00

SPACER, .63 X 1.560

$

$

Not available

27

75040-12

WELDMENT, IDLER

$

$

Not available

28

75042-00

SPACER, .63 X 2.880

$

$

Not available
