CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: B00001 - C09794) Idler Parts Diagram

4.5" Chipper, 540cc PTO Driven

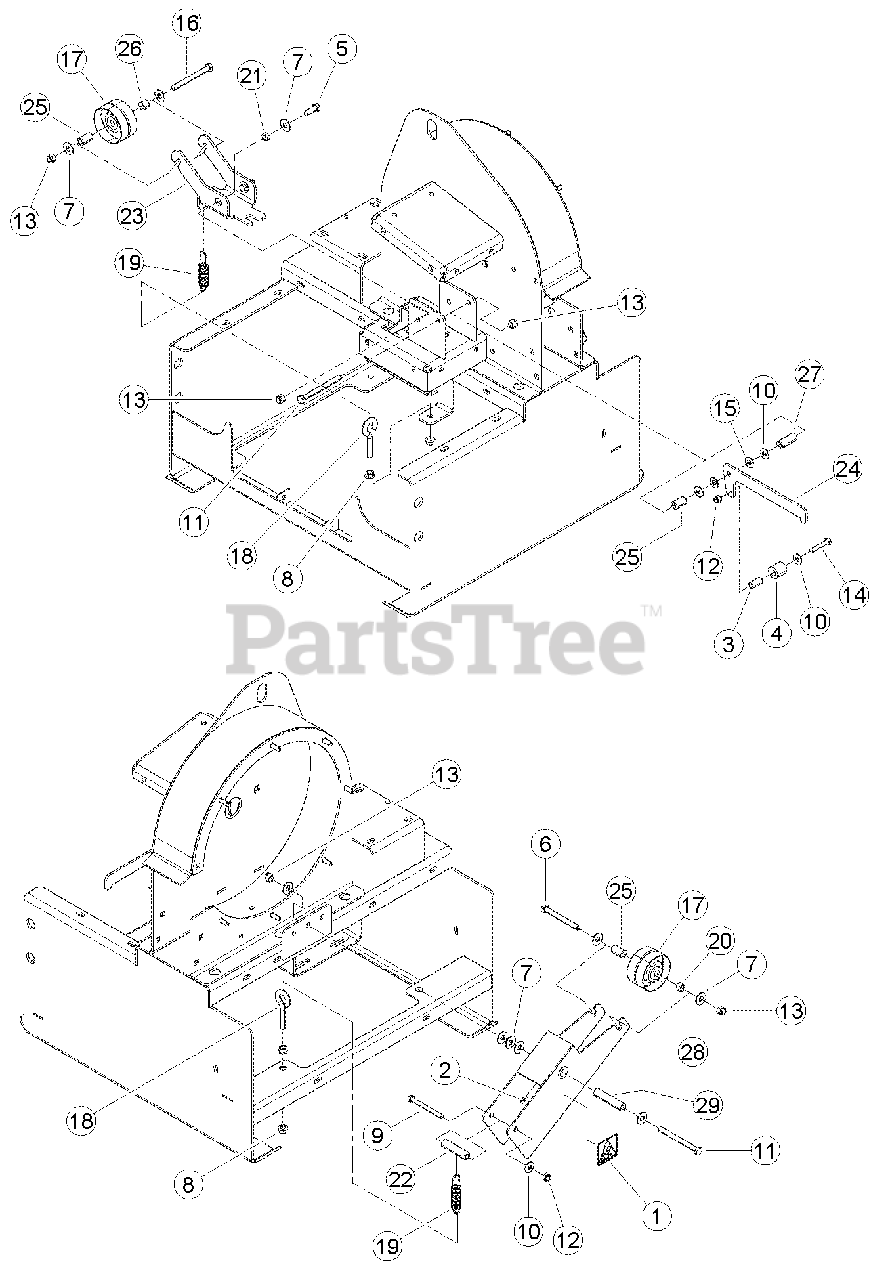

Idler Parts Diagram

  • Title

1

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15006

BOLT, 3/8 X 1 HEX HD GR5 ZP

$

$

Not available

6

Bear Cat 15010

BOLT, 3/8 X 3-1/2 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

Bear Cat 15051

NUT, 3/8 SERR FLANGE NC ZP

$

$

Not available

9

15136

BOLT, 5/16 X 3-1/4 HEX HD GR5

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

15272

BOLT, 3/8 X 4 HEX HD GR5 NC ZP

$

$

Not available

12

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

14

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HEX HD GR5 ZP

$

$

Not available

15

15509

WASHER,3/8 NYLON .062 TH FLAT

$

$

Not available

16

15756-00

BOLT, 3/8 X 3-3/4 HEX HD GR5 ZP

$

$

Not available

17

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

18

17416

EYE BOLT G-2, 3/8 X 2 ZP

$

$

Not available

19

Bear Cat 17692

SPRING, 3/4"OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

20

41158

BUSHING

$

$

Not available

21

Bear Cat 69239

SPACER IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

22

71944

SPACER, .63 X 2.44

$

$

Not available

23

Bear Cat 74948-12

BRACKET, IDLER

$

$

Not available

24

Bear Cat 74949-12

LEVER, ENGAGEMENT

$

$

Not available

25

74991-00

SPACER, .63 X 1.035

$

$

Not available

26

74992-00

SPACER,.63 X .515

$

$

Not available

27

74993-00

SPACER, .63 X 1.560

$

$

Not available

28

75040-12

WELDMENT, IDLER

$

$

Not available

29

75042-00

SPACER, .63 X 2.880

$

$

Not available
