CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: B00001 - C09794) Base Parts Diagram

4.5" Chipper, 540cc PTO Driven

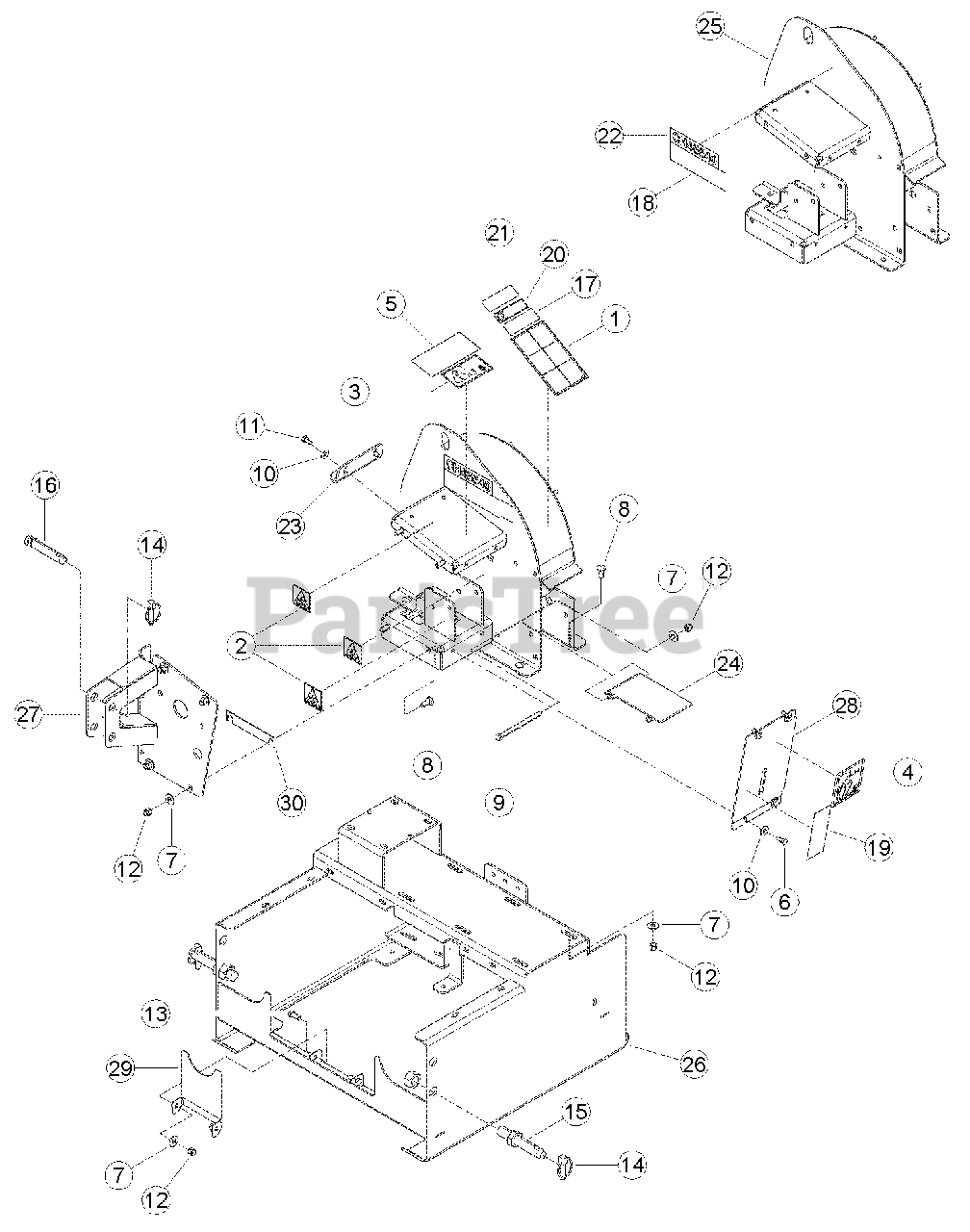

Base Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0

3

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

4

14185-00

DECAL, 102 DB

$

$

Not available

5

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

6

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

7

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

8

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

9

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

11

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

12

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15620

BOLT, 3/8-16 X 7/8 HEX HD GR5

$0.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16015

PIN, 7/16 X 1-3/4 LYNCH

$

$

Not available

15

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5 LONG

$24.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16020

PIN, TOP LINK 3/4 X 4-1/2 LONG

$14.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

18

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

19

Bear Cat 18059-00

DECAL, CHIPPER ENGAGEMENT

$13.99

$

Usually ships in 3-7 days

0

20

Bear Cat 18697-00

DECAL, 77454S INFORMATION

$16.99

$

Usually ships in 3-7 days

0

21

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36034-00

DECAL, MODEL CH45540

$11.99

$

Usually ships in 3-7 days

0

23

74255-35

GUIDE, BELT

$

$

Not available

24

Bear Cat 74571-12

WELDMENT, CHIP DEFLECTOR

$

$

Not available

25

Bear Cat 74919-35

WELDMENT, CHIPPER HOUSING
(Superseded to 77776-00)

$1269.99

$

Usually ships in 3-7 days

0

26

Bear Cat 74938-12

WELDMENT, CHIPPER 3 PT.

$

$

Not available

27

Bear Cat 74943-35

WELDMENT, BEARING SUPPORT

$

$

Not available

28

74944-35

PANEL, SIDE

$

$

Not available

29

74987-12

PLATE, PTO HOLDER

$

$

Not available

30

76290-00

SHIM, 4-1/2 INCH CHIPPER

$

$

Not available
