CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: A03570 - A09560) Panel/Chute - CH45540 Parts Diagram

4.5" Chipper, 540cc PTO Driven

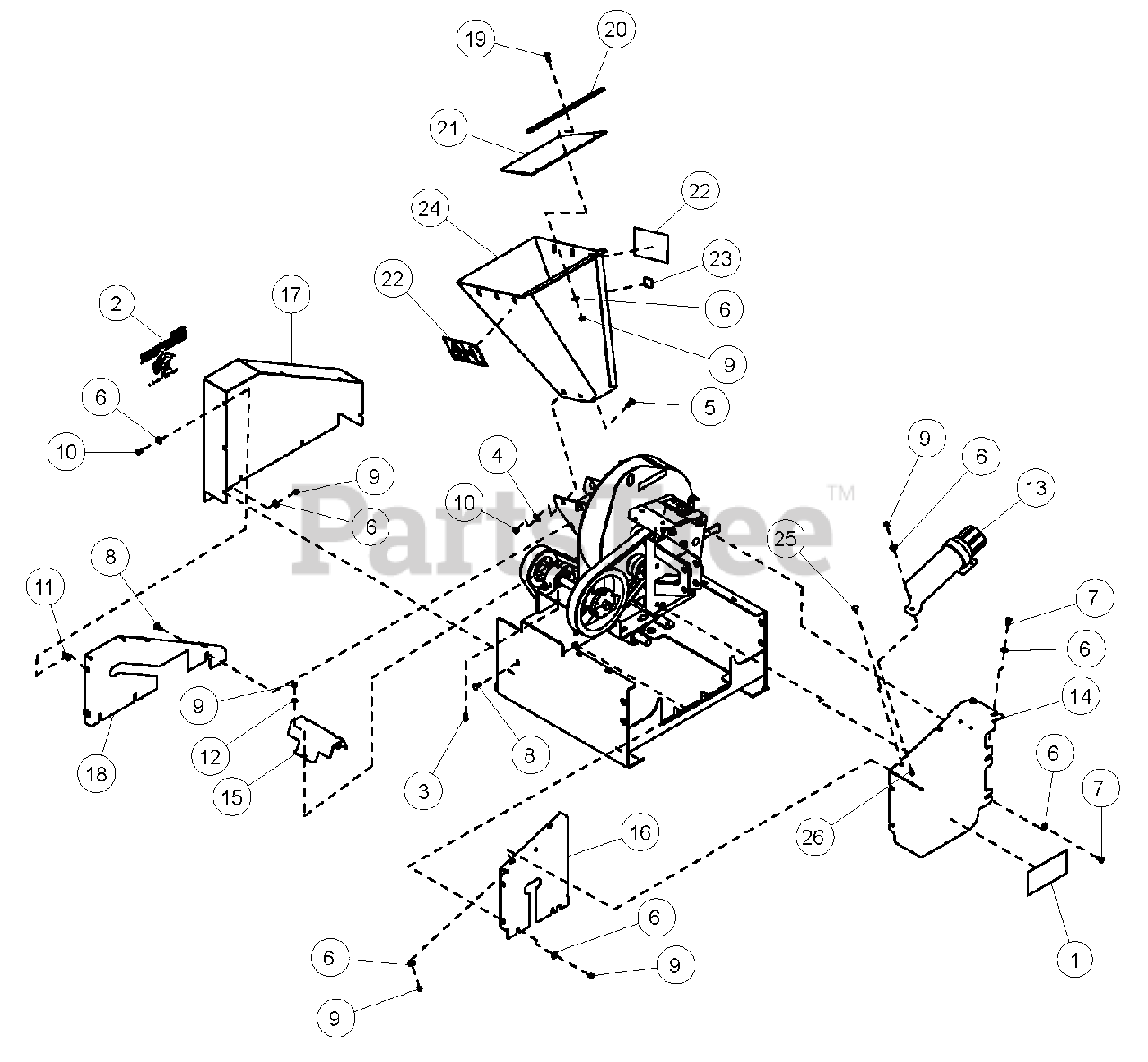

Panel/Chute - CH45540 Parts Diagram

  • Title
1

Bear Cat 12168

DECAL, PTO DANGER

$9.99

$

Usually ships in 3-7 days

0

2

Bear Cat 13896-00

DECAL, ECHO LOGO

$

$

Not available

2

Bear Cat 18660-00

DECAL, CRARY LOGO

$52.99

$

Usually ships in 3-7 days

0

3

Bear Cat 15003

BOLT, 5/16 X 3/4" HEX HD

$

$

Not available

4

Bear Cat 15031

WASHER, 3/8" FLAT

$

$

Not available

5

15057

BOLT, 3/8 X 1" CRG

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16" FLAT

$

$

Not available

7

15300

BOLT, 5/16 X 5/8" HEX HD

$

$

Not available

8

Bear Cat 15349

BOLT, 5/16 X 7/8" CRG

$

$

Not available

9

Bear Cat 15356

NUT, 5/16" NYLOCK

$

$

Not available

10

Bear Cat 15388

NUT, 3/8" NYLOCK

$

$

Not available

11

Bear Cat 15402

NUT, 5/16" X 18 TINNERMAN U-TYPE

$

$

Not available

12

15416

WASHER, 5/16" SAE FLAT

$

$

Not available

13

Bear Cat 18008-00

CONTAINER, MANUAL

$33.99

$

Usually ships in 3-7 days

0

14

74982-12

SHIELD, FRONT BELT

$

$

Not available

15

74983-12

SHIELD, JACKSHAFT

$

$

Not available

16

74984-12

SHIELD, BACK BELT

$

$

Not available

17

Bear Cat 74985-12

SHIELD, FORWARD BELT

$

$

Not available

18

74986-12

SHIELD, REAR BELT

$

$

Not available

19

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

20

Bear Cat 74608-12

STRIP, FLAP RETAINER

$

$

Not available

21

Bear Cat 14771-00

FLAP, CHIPPER CHUTE

$79.99

$

In Stock, only 1 left!

0

22

Bear Cat 12175

DECAL, INLET AND DISCHARGE

$6.99

$

In Stock, only 1 left!

0

23

Bear Cat 16753

DECAL, CE APPROVAL

$3.49

$

Usually ships in 3-7 days

0

24

73918-35

WELDMENT, HOPPER

$

$

Not available

25

Bear Cat 15367

BOLT, 5/16 X 3/4" GR5 ZP CRG

$

$

Not available

26

Bear Cat 15396

BOLT, 5/16 X 7/8" NC HHCS GR5 ZP

$

$

Not available
