CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: A03570 - A09560) Idler - CH45540 Parts Diagram

4.5" Chipper, 540cc PTO Driven

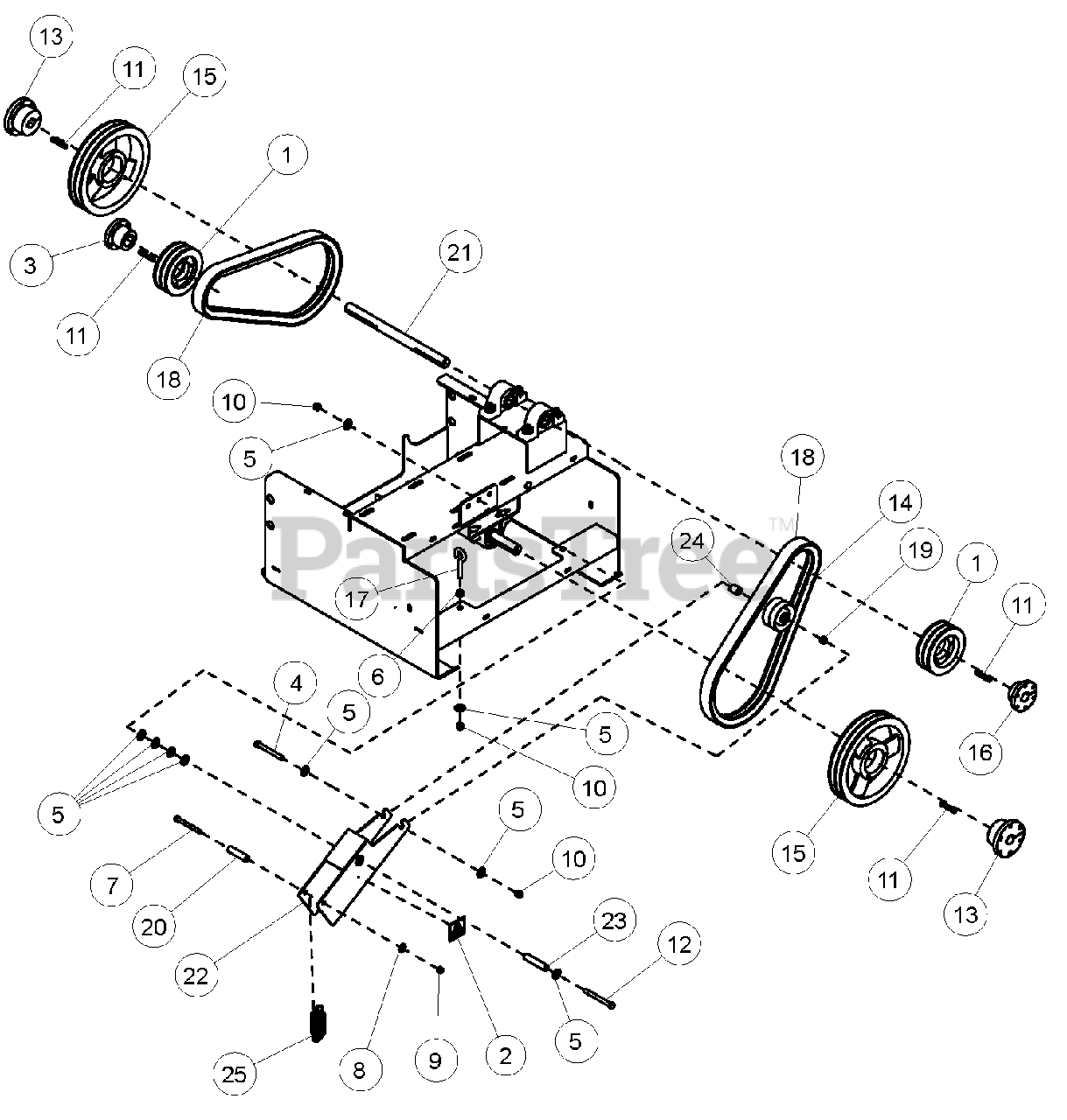

Idler - CH45540 Parts Diagram

  • Title
1

Bear Cat 12145

SHEAVE, 2B4.8 SDS

$114.99

$

Usually ships in 3-7 days

0

2

Bear Cat 12174

DECAL, SHIELD DANGER

$4.99

$

Usually ships in 3-7 days

0

3

Bear Cat 14769-00

BUSHING, 1-1/4" SDS

$67.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15010

BOLT, 3/8 NC X 3-1/2 HEX HD

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT

$

$

Not available

6

Bear Cat 15051

NUT, 3/8" SERR FLANGE

$

$

Not available

7

15136

BOLT, 5/16 X 3-1/4" HEX HD

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16" FLAT

$

$

Not available

9

Bear Cat 15356

NUT, 5/16" NYLOCK

$

$

Not available

10

Bear Cat 15388

NUT, 3/8" NYLOCK

$

$

Not available

11

Bear Cat 15391

KEY, 1/4 X 2" SQ.

$

$

Not available

12

15756-00

BOLT, 3/8 NC X 3-3/4" HEX HD GR5

$

$

Not available

13

Bear Cat 16083

BUSHING, 1 SK

$66.99

$

Usually ships in 3-7 days

0

14

Bear Cat 16319

PULLEY, 3-1/4" FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

15

Bear Cat 16323

SHEAVE, 2B9.4 SK

$171.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16458

BUSHING, 1.0 SDS

$

$

Not available

17

17416

BOLT, 3/8 X 2" EYE

$

$

Not available

18

Bear Cat 18093-00

BELT, 2RB47

$171.99

$

Usually ships in 3-7 days

0

19

41158

TUBE, SPACER

$

$

Not available

20

74255-35

GUIDE, BELT

$

$

Not available

21

Bear Cat 74939-00

JACKSHAFT, CHIPPER

$63.99

$

Usually ships in 3-7 days

0

22

75040-10

WELDMENT, IDLER

$

$

Not available

23

75042-00

SPACER, 0.63 X 2.880

$

$

Not available

24

Bear Cat 70290

SPACER, 0.75 X 0.90

$9.99

$

Usually ships in 3-7 days

0

25

Bear Cat 17415

STOCK EXTENSION SPRING

$

$

Not available
