CH 45540 - Bear Cat 4.5" Chipper, 540cc PTO Driven (SN: A03570 - A09560) Base - CH45540 Parts Diagram

4.5" Chipper, 540cc PTO Driven

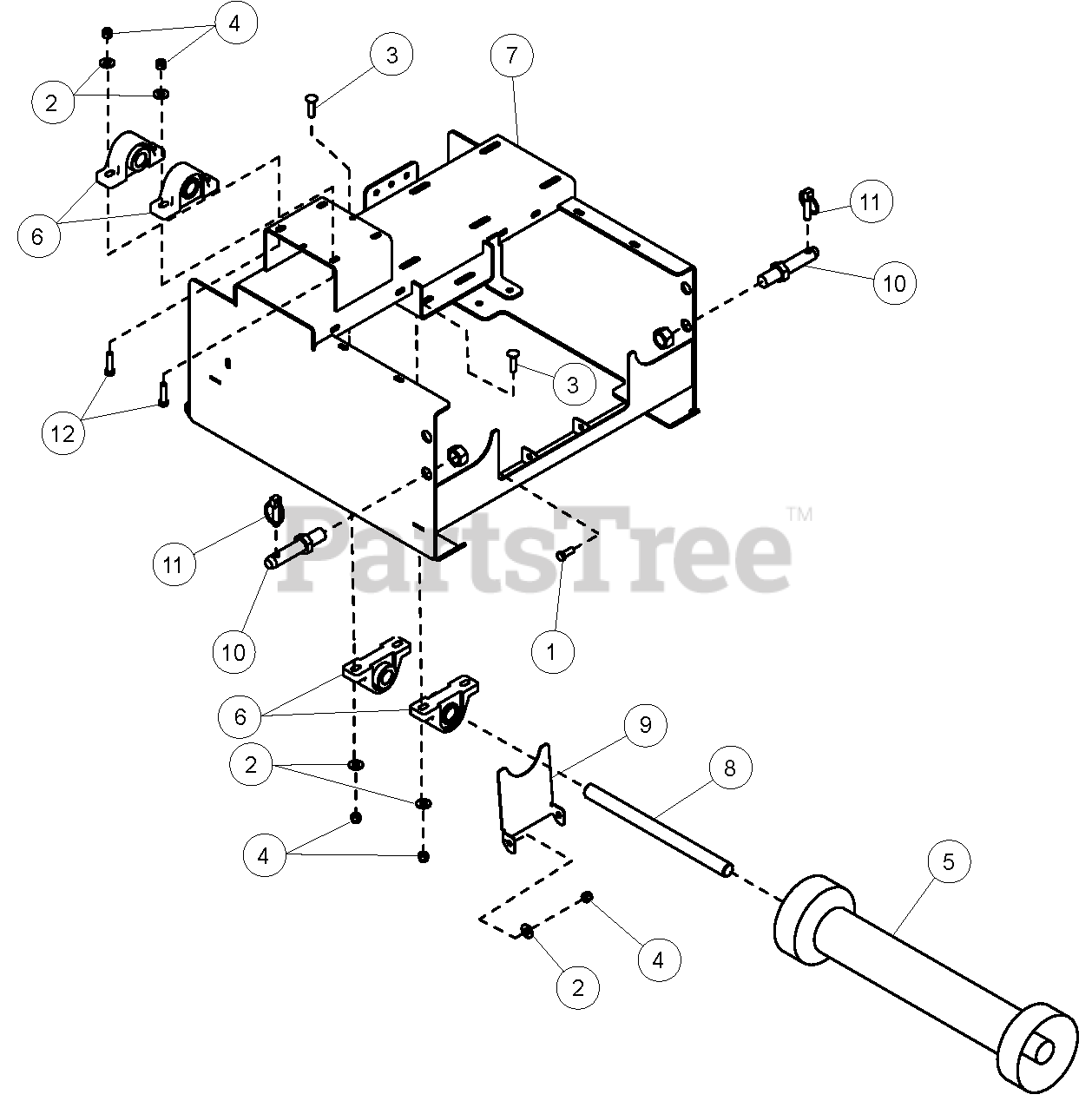

Base - CH45540 Parts Diagram

  • Title
1

Bear Cat 15006

BOLT, 3/8 NC X 1" GR5 CAPSCREW ZP

$

$

Not available

2

Bear Cat 15031

WASHER, 3/8" FLAT

$

$

Not available

3

15058

BOLT, 3/8 X 1-1/2" CRG

$

$

Not available

4

Bear Cat 15388

NUT, 3/8" NYLOCK

$

$

Not available

5

Bear Cat 16961

SHAFT, CHIPPER DRIVE (SUPERSEDED BY 36407-00)

$

$

Not available

5

Bear Cat 36407-00

DRIVESHAFT, 540 C/S WS
(Superseded to 71588-00)

Note: PTO DRIVELINE PN 36407-00

$531.99

$

Usually ships in 3-7 days

0

6

Bear Cat 17667

PILLOW BLOCK BEARING 1 IN

$67.99

$

Usually ships in 3-7 days

0

7

Bear Cat 74938-12

WELDMENT, CHIPPER 3 PT.

$

$

Not available

8

Bear Cat 74939-00

JACKSHAFT, CHIPPER

$63.99

$

Usually ships in 3-7 days

0

9

74987-12

PLATE, PTO HOLDER

$

$

Not available

10

Bear Cat 16019

PIN, LIFT ARM 7/8 X 5" LG

$24.99

$

Usually ships in 3-7 days

0

11

Bear Cat 16015

PIN, 7/16 X 1-3/4" LYNCH

$

$

Not available

12

Bear Cat 15007

BOLT, 3/8 X 1-1/2" GR5 HCS ZP

$

$

Not available
