CH 450 H - Bear Cat 4.5" Hydraulic Chipper, Skid Steer (SN: D08936 & Above) Attachments Parts Diagram

4.5" Hydraulic Chipper, Skid Steer

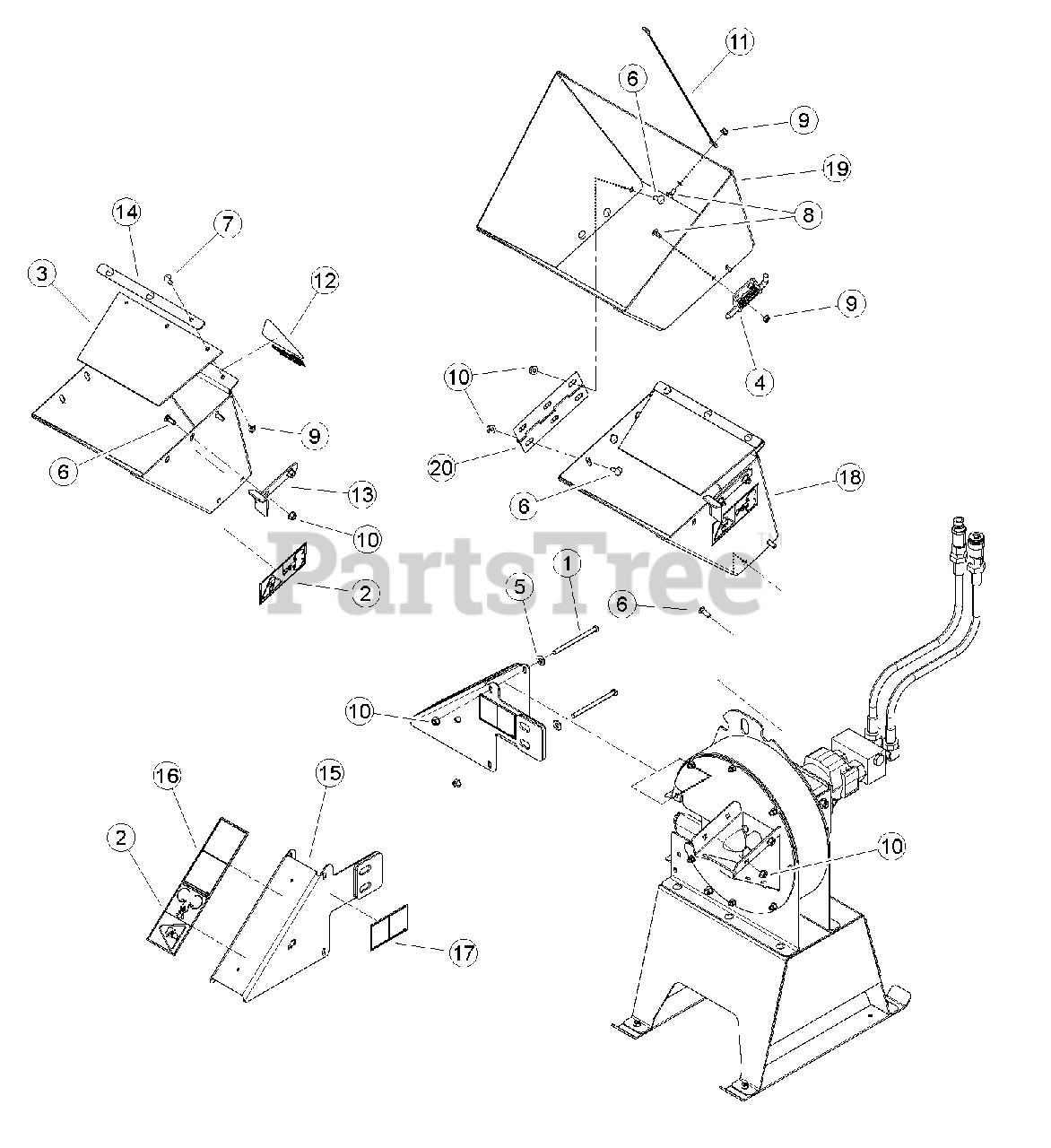

Attachments Parts Diagram

  • Title
1

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX GR5 ZP

$

$

Not available

2

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

3

Bear Cat 14771-00

FLAP, CHIPPER CHUTE

$79.99

$

In Stock, only 1 left!

0

4

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1" CRG GR5 NC ZP

$

$

Not available

7

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

8

Bear Cat 15367

BOLT, 5/16 X 3/4" GR5 NC ZP CRG

$

$

Not available

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 18292-00

LANYARD, STEEL W/ PVC 1/8 X 20"

$102.99

$

Usually ships in 3-7 days

0

12

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

13

Bear Cat 74354-12

PLATE, EXT. LOCK

$

$

Not available

14

Bear Cat 74608-12

STRIP, FLAP RETAINER

$

$

Not available

15

Bear Cat 74670-00

ASSEMBLY, DISCHARGE CAP

Note: (INCLUDES ITEMS 2, 12 & 13)

$288.99

$

Usually ships in 3-7 days

0

16

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

17

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0

18

73918-35

WELDMENT, HOPPER

$

$

Not available

19

74311-35

WELDMENT, HOPPER EXT. 4-1/2 PTO

$

$

Not available

20

Bear Cat 74355-12

HINGE, CHUTE EXT

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
