CH 450 H - Bear Cat 4.5" Hydraulic Chipper, Skid Steer (SN: 709159 - D03876) Base & Housing Parts Diagram

4.5" Hydraulic Chipper, Skid Steer

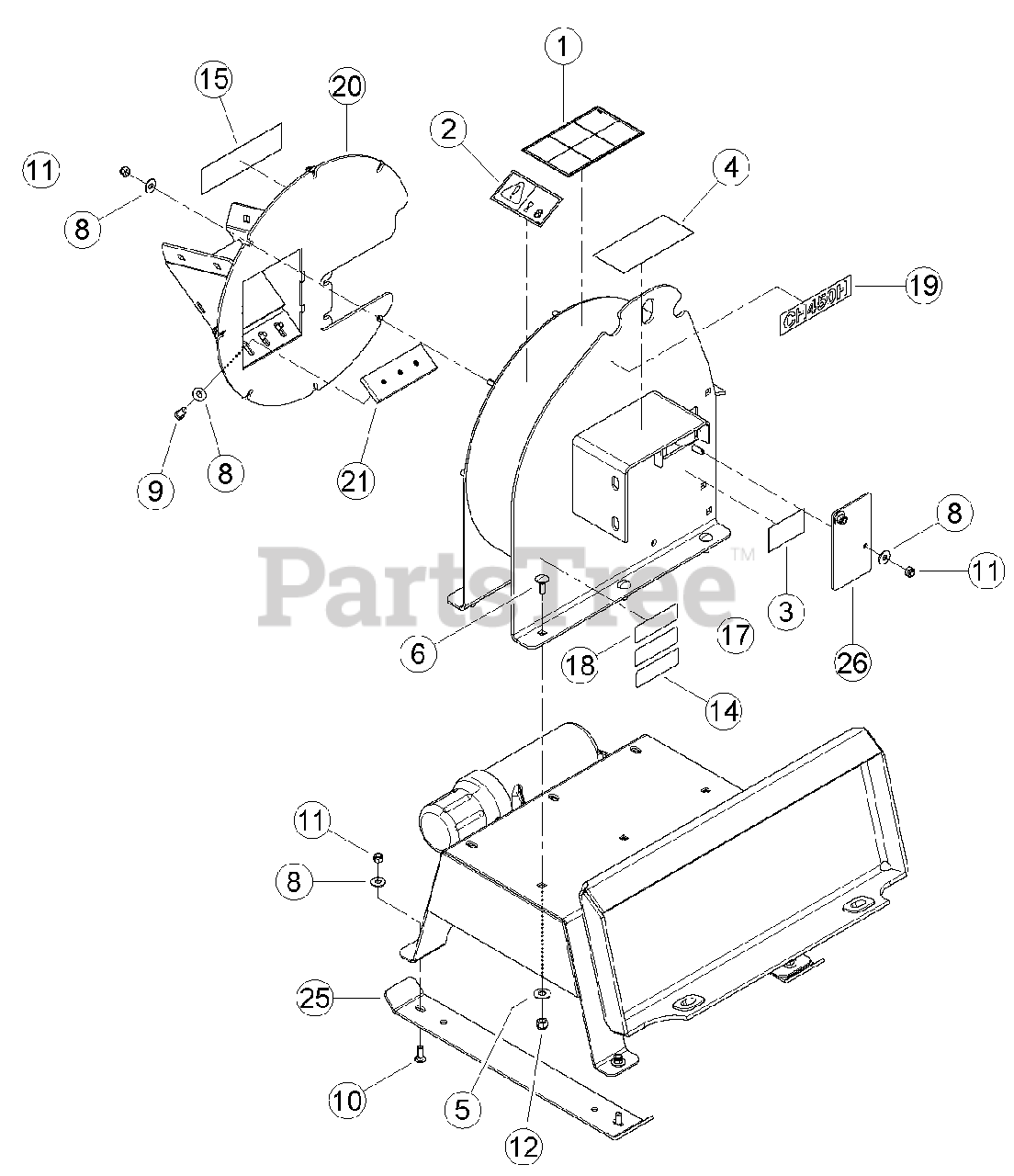

Base & Housing Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 12250

DECAL, MAINTENANCE ISO

$3.99

$

In Stock, only 1 left!

0

3

Bear Cat 13890-00

DECAL, DANGER

$9.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

6

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

7

15205

BOLT, 3/8 X 5 HEX HD GR5 ZP

$

$

Not available

8

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

9

15300

BOLT, 5/16 X 5/8 HEX HD GR5 ZP

$

$

Not available

10

Bear Cat 15349

BOLT, 5/16 X 7/8 CRG GR5 NC ZP

$

$

Not available

11

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

12

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

13

Bear Cat 15396

BOLT, 5/16 X 7/8 HEX HD NC GR5 ZP

$

$

Not available

14

Bear Cat 16155

DECAL, SERIAL NUMBER

$

$

Not available

15

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

16

Bear Cat 18008-00

CONTAINER, MANUAL

$33.99

$

Usually ships in 3-7 days

0

17

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

18

31912-00

DECAL, CH450H INFORMATION

$

$

Not available

19

36175-00

DECAL, MODEL CH450H

$

$

Not available

20

Bear Cat 73934-35

WELDMENT, DISK COVER

$

$

Not available

21

Bear Cat 74529-00

ANVIL, CHIPPER

$54.99

$

Usually ships in 3-7 days

0

22

Bear Cat 74571-12

WELDMENT, CHIP DEFLECTOR

$

$

Not available

23

75911-35

WELDMENT, CHIPPER HOUSING

$

$

Not available

24

Bear Cat 75915-12

WELDMENT, BASE
(Superseded to 70405-00)

$1296.99

$

Usually ships in 3-7 days

0

25

75916-12

PLATE, BASE SKID

$

$

Not available

26

75919-35

PLATE, ACCESS

$

$

Not available
