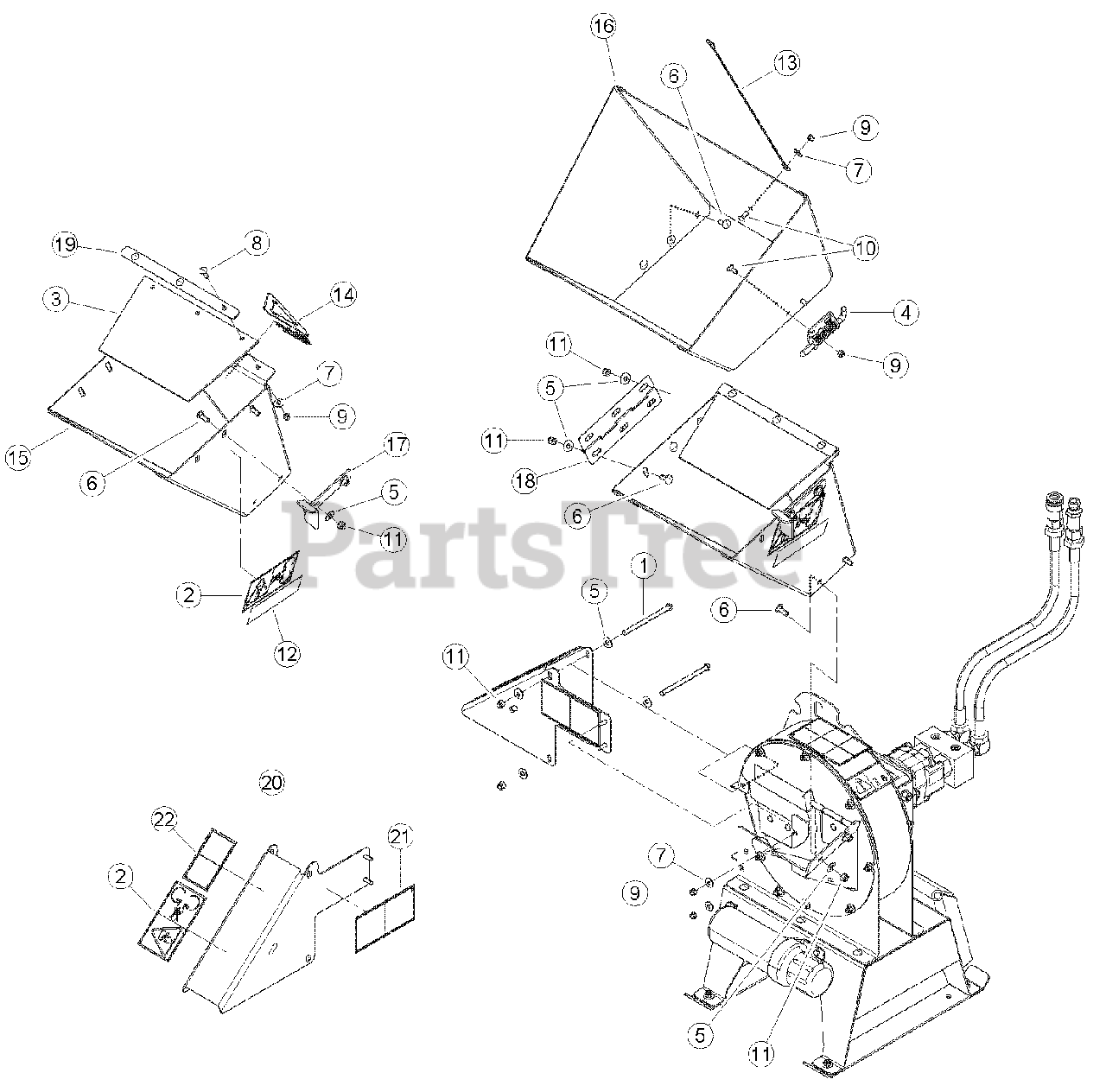

CH 450 H - Bear Cat 4.5" Hydraulic Chipper, Skid Steer (SN: 709159 - D03876) Attachments Parts Diagram

4.5" Hydraulic Chipper, Skid Steer

Attachments Parts Diagram

  • Title

0103-0848-00

BOLT, 3/8 X 5-1/2 HEX HD GR5 ZP

$

$

Not available

Bear Cat 12175

DECAL, BLADE DANGER ISO

$6.99

$

In Stock, only 1 left!

0

Bear Cat 14771-00

FLAP, CHIPPER CHUTE

$79.99

$

In Stock, only 1 left!

0

Bear Cat 14971-00

LATCH, RH HINGE

$

$

Not available

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

Bear Cat 15301

BOLT, 5/16 X 1 CRG GR5 ZP

$

$

Not available

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

Bear Cat 15367

BOLT, 5/16 X 3/4 CRG GR5 NC ZP

$

$

Not available

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

Bear Cat 18292-00

LANYARD, STEEL W/PVC 1/8" X 20"

$102.99

$

Usually ships in 3-7 days

0

Bear Cat 31391-00

DECAL, CHIP IT

$13.99

$

Usually ships in 3-7 days

0

73918-35

WELDMENT, HOPPER

$

$

Not available

74311-35

WELDMENT, HOPPER EXT 4-1/2 PTO

$

$

Not available

Bear Cat 74354-12

WELDMENT, 4-1/2" EXTENSION TRAY

$

$

Not available

Bear Cat 74355-12

HINGE, CHUTE EXT

$

$

Not available

Bear Cat 74608-12

STRIP, FLAP RETAINER

$

$

Not available

Bear Cat 74670-00

ASSEMBLY, DISCHARGE CAP, SERVICE PART

Note: (INCLUDES ITEMS 2, 21 & 22)

$288.99

$

Usually ships in 3-7 days

0

Bear Cat 12169

DECAL, KNIFE ACCESS ISO

$13.99

$

Usually ships in 3-7 days

0

Bear Cat 12173

DECAL, DISCHARGE ISO

$3.99

$

Usually ships in 3-7 days

0
