CH 4420 - Bear Cat 4" Chipper, 420cc Briggs & Stratton (SN: 5VJAA0112HW005438 & Above) Idler Parts Diagram

4" Chipper, 420cc Briggs & Stratton

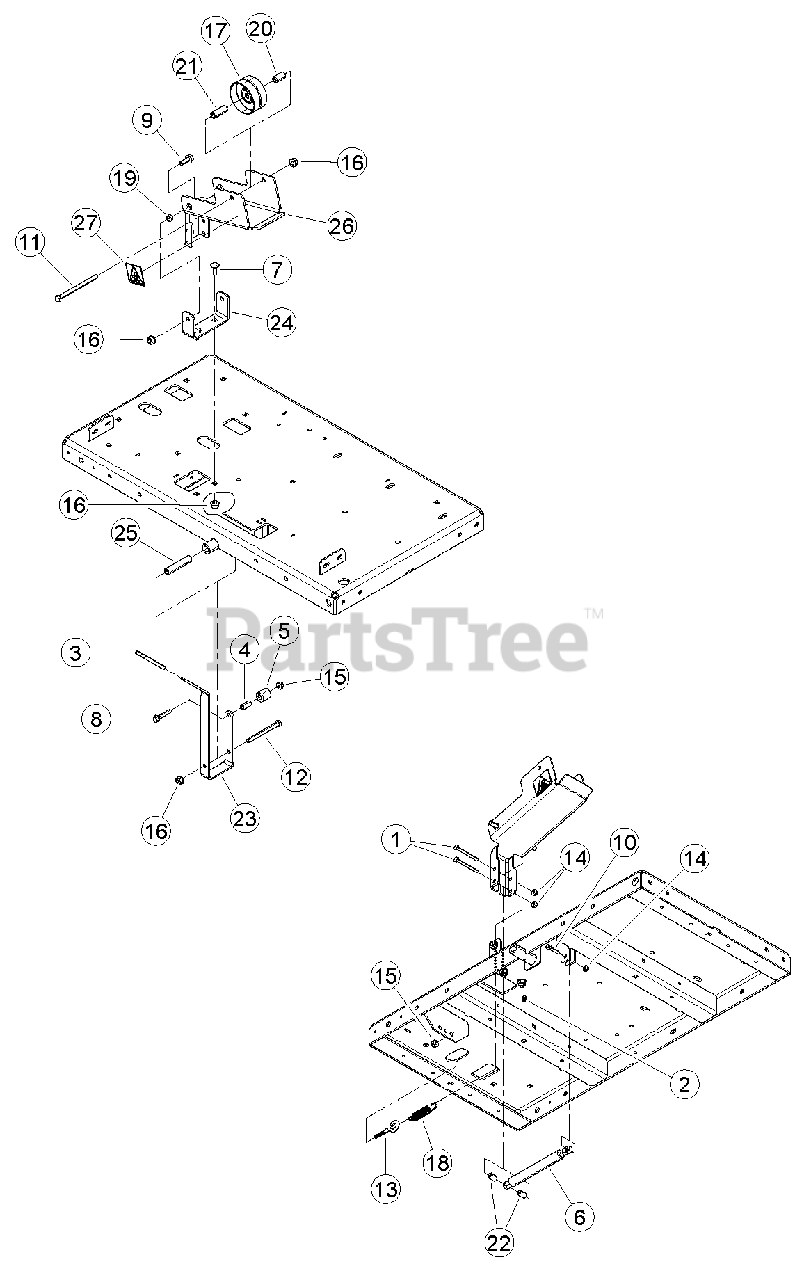

Idler Parts Diagram

  • Title
1

0103-0714-00

BOLT, 1/4 X 2-3/4 HEX GR5 ZP

$

$

Not available

2

Bear Cat 12275

FITTING, 1/4 SELF-TAP GREASE

$

$

Not available

3

Bear Cat 14076-00

GRIP, CLUTCH HANDLE

$5.99

$

Usually ships in 3-7 days

0

4

Bear Cat 14635-00

SPACER, 0.5 X 1.00

$12.99

$

Usually ships in 3-7 days

0

5

Bear Cat 14636-00

ROLLER, 0.5 X 1.00 X 1.00 NYLON

$12.99

$

Usually ships in 3-7 days

0

6

Bear Cat 14776-00

DAMPER, IDLER

$123.99

$

Usually ships in 3-7 days

0

7

15057

BOLT, 3/8 X 1 CRG GR5 NC ZP

$

$

Not available

8

Bear Cat 15127-00

BOLT, 5/16 X 1-3/4 FLANGE NC

$3.99

$

Usually ships in 3-7 days

0

9

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

10

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

11

15205

BOLT, 3/8 X 5 HEX GR5 ZP

$

$

Not available

12

15272

BOLT, 3/8 X 4 HEX GR5 NC ZP

$

$

Not available

13

Bear Cat 15429

I-BOLT, 5/16-18 X 2 ZP

$

$

Not available

14

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 16319

PULLEY, 3-1/4 FLAT IDLER

$73.99

$

Usually ships in 3-7 days

0

18

Bear Cat 17692

SPRING, 3/4"OD EXTENSION

$12.99

$

Usually ships in 3-7 days

0

19

Bear Cat 69239

SPACER, IDLER PIVOT

$4.99

$

Usually ships in 3-7 days

0

20

Bear Cat 70046

SPACER, IDLER

$

$

Not available

21

Bear Cat 70694

SPACER, .63 X 1.63

$15.99

$

Usually ships in 3-7 days

0

22

Bear Cat 73064

SPACER, .50 X .775

$16.99

$

Usually ships in 3-7 days

0

23

Bear Cat 74491-35

LEVER, CHIPPER ENGAGEMENT

$

$

Not available

24

Bear Cat 74493-12

ANCHOR, IDLER

$

$

Not available

25

Bear Cat 74579-00

SPACER, .63 X 3.060

$21.99

$

Usually ships in 3-7 days

0

26

Bear Cat 76930-00

BRACKET, IDLER SERVICE

Note: (INCLUDES ITEM 27)

$162.99

$

Usually ships in 3-7 days

0

27

Bear Cat 12174

DECAL, SHIELD DANGER ISO

$4.99

$

Usually ships in 3-7 days

0
