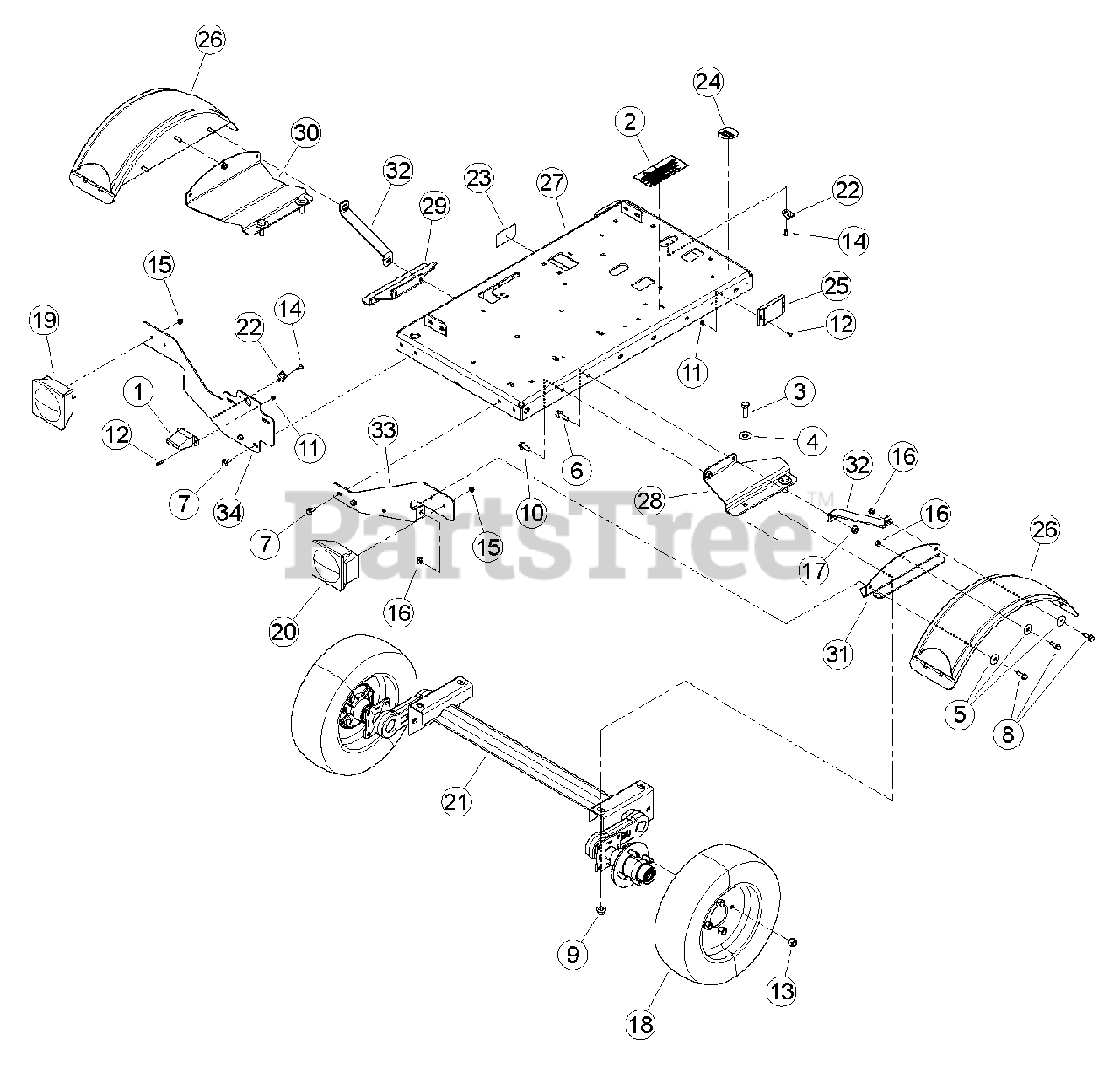

CH 4420 - Bear Cat 4" Chipper, 420cc Briggs & Stratton (SN: 5VJAA0112HW005438 & Above) Frame (Non-CE Compliant) Parts Diagram

4" Chipper, 420cc Briggs & Stratton

Frame (Non-CE Compliant) Parts Diagram

  • Title
1

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

2

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

3

Bear Cat 15014

BOLT, 1/2-13 X 1-1/2 HEX HD GR5

$1.49

$

In Stock, only 3 left!

0

4

Bear Cat 15034

WASHER, 1/2 FLAT

$

$

Not available

5

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

7

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

11

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

12

Bear Cat 15460

SCREW, #10-24 X 3/4" PAN HD PH ZP MCH

$

$

Not available

13

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

14

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

16

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

17

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

18

Bear Cat 16008

ASSEMBLY, TIRE + WHEEL 4.80-8

$184.99

$

Usually ships in 3-7 days

0

19

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

20

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

21

Bear Cat 16917

AXLE, 1000 LB TORSION

$1000.99

$

Usually ships in 3-7 days

0

22

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

23

32161-00

DECAL, 5.30-12 LOAD RATING

$

$

Not available

24

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

25

LIGHT, AMBER MARKER (WAS 32347-00, OBSOLETE. FOR SERVICE ORDER PN 74911-00)

$

$

Not available

25

Bear Cat 74911-00

KIT, LED AMBER LIGHT

Note: (INCLUDES PN 33875-00 & 33876-00)

$55.99

$

Usually ships in 3-7 days

0

26

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

27

Bear Cat 76912-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

28

Bear Cat 76915-12

SUPPORT, AXLE FENDER RH

$

$

Not available

29

Bear Cat 76916-12

SUPPORT, AXLE FENDER LH

$

$

Not available

30

Bear Cat 76917-12

SHEET, MOUNT FENDER LH

$

$

Not available

31

Bear Cat 76918-12

SHEET, MOUNT FENDER RH

$

$

Not available

32

Bear Cat 76921-12

BRACKET, FENDER SUPPORT

$

$

Not available

33

77487-12

BRACKET, LIGHT RH

$

$

Not available

34

77488-12

BRACKET, LIGHT LH

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32326-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$246.99

$

Usually ships in 3-7 days

0

33875-00

TERMINAL, RING #10-18 GA

Note: (NOT SHOWN)

$

$

Not available

33876-00

CONNECTOR, BUTT 18-22 GA

Note: (NOT SHOWN)

$

$

Not available
