CH 4400 - Bear Cat 4" Chipper, 400cc Subaru (SN: 5VJAA001XAW002724 - 5VJAA0017CW003758) Frame (NON-CE COMPLIANT) Parts Diagram

4" Chipper, 400cc Subaru

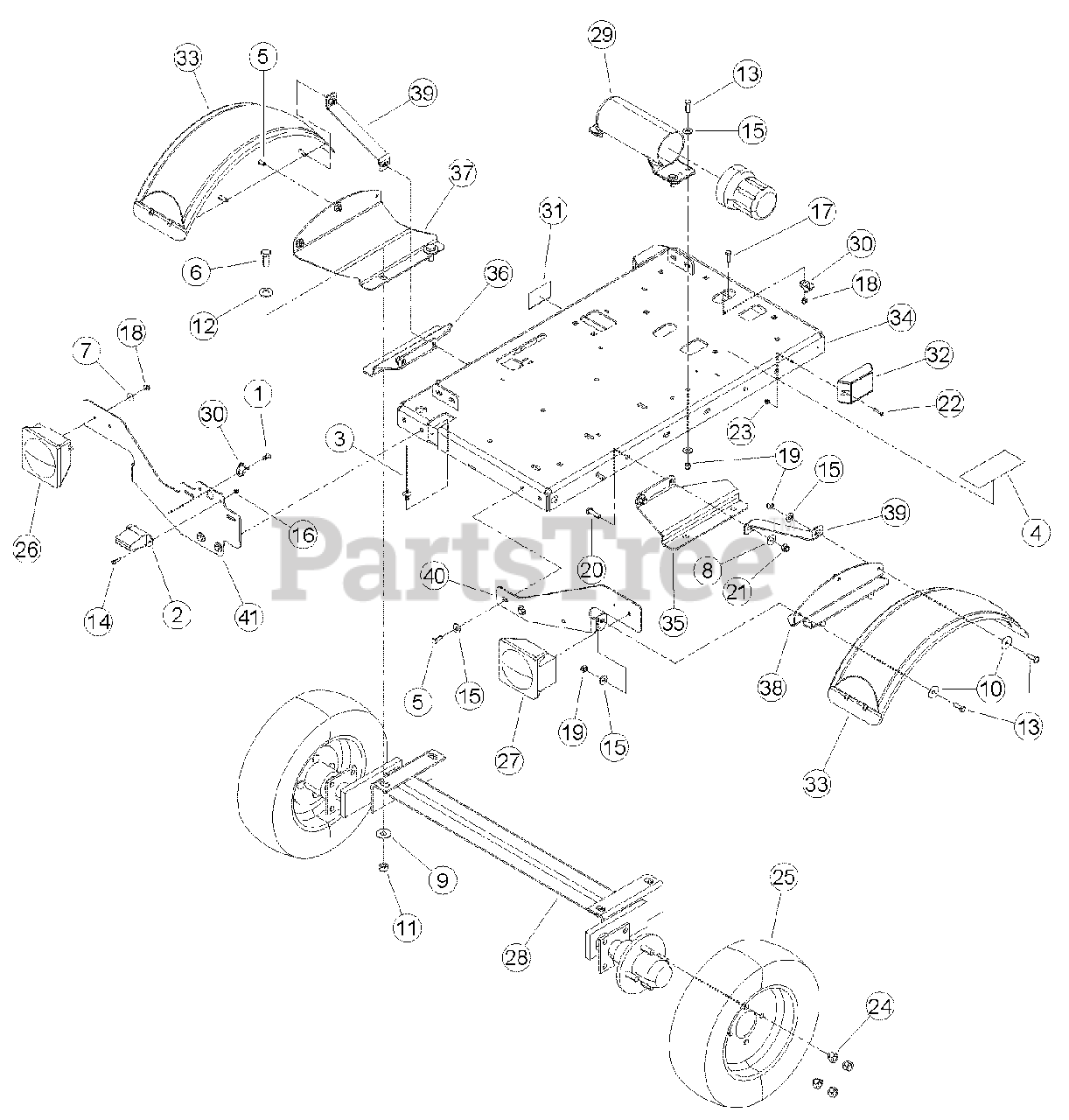

Frame (NON-CE COMPLIANT) Parts Diagram

  • Title

1

0111-0058-00

RIVET, 1/4 X 3/4 ST POP

$

$

Not available

2

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

3

Bear Cat 14775-00

TIE, DOME FIR TREE

$3.49

$

Usually ships in 3-7 days

0

4

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

5

Bear Cat 15003

BOLT, 5/16 X 3/4 HEX HD GR5 ZP

$

$

Not available

6

15013

BOLT, 1/2 X 1-1/4 HHCS GR5 NC ZP

$

$

Not available

7

15030

WASHER, 1/4 FLAT ZP

$

$

Not available

8

Bear Cat 15031

WASHER, 3/8 FLAT ZP

$

$

Not available

9

Bear Cat 15034

WASHER, 1/2 FLAT ZP

$

$

Not available

10

Bear Cat 15040

WASHER, 5/16 FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

11

Bear Cat 15049

NUT, 1/2 CENTERLOCK GRB ZP

$

$

Not available

12

Bear Cat 15097

WASHER 1/2 SAE FLAT ZP

$

$

Not available

13

Bear Cat 15219

BOLT, 5/16 X 1 HHCS GR5 NC ZP

$

$

Not available

14

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

15

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

16

15255

NUT, 8-32 NYLOCK

$

$

Not available

17

15284

BOLT, 1/4 X 1 HEX GR8 ZP

$

$

Not available

18

Bear Cat 15355

NUT, 1/4 NE NYLOCK ZP

$

$

Not available

19

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

20

15364

BOLT, 3/8 X 1-1/4 HEX HD GR5 ZP

$

$

Not available

21

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

22

15393

MACH. SCREW, 10-24 X 1 RND HD PHL ZP

$

$

Not available

23

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

24

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

25

Bear Cat 16008

ASSEMBLY, TIRE + WHEEL 4.80-8

$184.99

$

Usually ships in 3-7 days

0

26

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

27

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

28

Bear Cat 16917

AXLE, 1000LB TORSION

$1000.99

$

Usually ships in 3-7 days

0

29

Bear Cat 18008-00

CONTAINER, MANUAL

$33.99

$

Usually ships in 3-7 days

0

30

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

31

Bear Cat 32157-00

DECAL, 4.80-8 LOAD RATING

$40.99

$

Usually ships in 3-7 days

0

32

Bear Cat 32347-00

LIGHT, AMBER SIDE MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

33

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

34

Bear Cat 76912-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

35

Bear Cat 76915-12

SUPPORT, AXLE FENDER-RH

$

$

Not available

36

Bear Cat 76916-12

SUPPORT, AXLE FENDER-LH

$

$

Not available

37

Bear Cat 76917-12

SHEET, MOUNT FENDER-LH

$

$

Not available

38

Bear Cat 76918-12

SHEET, MOUNT FENDER-RH

$

$

Not available

39

Bear Cat 76921-12

BRACKET, FENDER SUPPORT

$

$

Not available

40

77487-12

BRACKET, LIGHT RH

$

$

Not available

41

77488-12

BRACKET, LIGHT LH

$

$

Not available

17320

STRAP, 11 IN. BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32326-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$246.99

$

Usually ships in 3-7 days

0

Bear Cat 71707

CONDUIT, 1/4 X 158 WIRE

Note: (NOT SHOWN)

$37.99

$

Usually ships in 3-7 days

0

Bear Cat 72679

CONDUIT, 1/4 X 16 WIRE

Note: (NOT SHOWN)

$14.99

$

Usually ships in 3-7 days

0
