CH 4400 - Bear Cat 4" Chipper, 400cc Subaru (SN: 5VJAA0017DW000001 - 5VJAA0115HW005384) Frame (NON-CE COMPLIANT) Parts Diagram

4" Chipper, 400cc Subaru

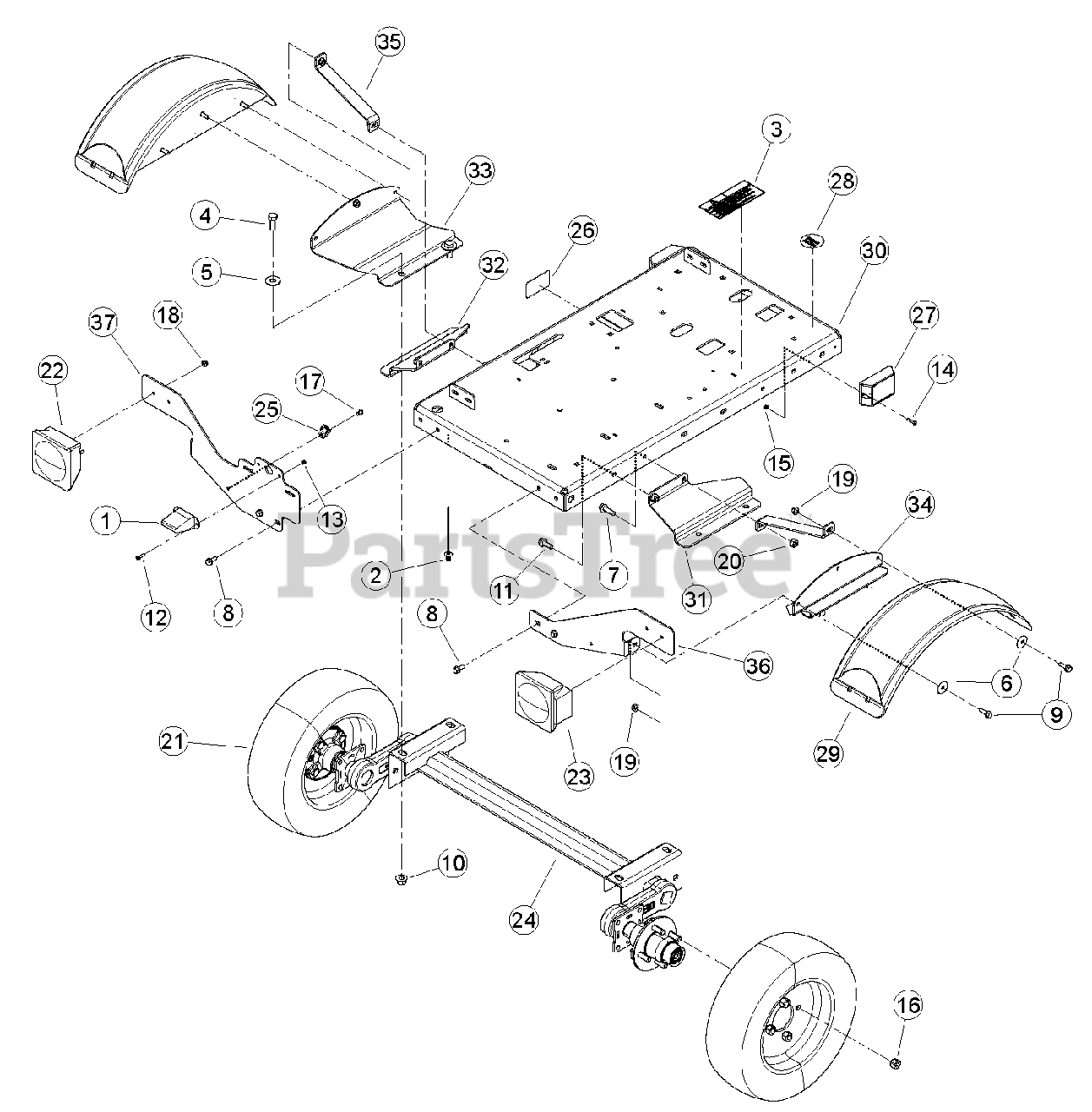

Frame (NON-CE COMPLIANT) Parts Diagram

  • Title
1

Bear Cat 14368-00

LIGHT, LICENSE PLATE

$

$

Not available

2

Bear Cat 14775-00

TIE, DOME FIR TREE

$3.49

$

Usually ships in 3-7 days

0

3

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

4

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

5

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

6

Bear Cat 15040

WASHER, 5/16" FENDER ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15109-00

BOLT, 3/8 X 1-1/4 FLANGE NC

$2.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

9

Bear Cat 15120-00

BOLT, 5/16 X 1 FLANGE NC

$1.49

$

Usually ships in 3-7 days

0

10

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

11

15163-00

BOLT, 3/8 X 1 FLANGE NC

$

$

Not available

12

Bear Cat 15225

SCREW, #10 X 3/4 HEX TAP SC

$

$

Not available

13

15255

NUT, 8-32 NYLOCK

$

$

Not available

14

15393

SCREW, MCH 10-24 X 1" RND HD PHL ZP

$

$

Not available

15

15397

NUT, 10/24 NYLOCK TYPE NM ZP

$

$

Not available

16

Bear Cat 15527

NUT, 1/2-20 WHEEL

$

$

Not available

17

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

18

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

19

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

20

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK-FLANGE

$

$

Not available

21

Bear Cat 16008

ASSEMBLY, TIRE + WHEEL 4.80-8

$184.99

$

Usually ships in 3-7 days

0

22

Bear Cat 16903

LIGHT, LH TAIL

$36.99

$

Usually ships in 3-7 days

0

23

Bear Cat 16904

LIGHT, RH TAIL

$35.99

$

Usually ships in 3-7 days

0

24

Bear Cat 16917

AXLE, 1000LB TORSION

$1000.99

$

Usually ships in 3-7 days

0

25

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

26

32161-00

DECAL, 5.30-12 LOAD RATING

$

$

Not available

27

Bear Cat 32347-00

LIGHT, AMBER MARKER
(Superseded to 74911-00)

$55.99

$

Usually ships in 3-7 days

0

28

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

29

Bear Cat 76624-00

FENDER, BLACK PLASTIC DRILLED

$92.99

$

Usually ships in 3-7 days

0

30

Bear Cat 76912-12

WELDMENT, CHIPPER TRAILER

$

$

Not available

31

Bear Cat 76915-12

SUPPORT, AXLE FENDER RH

$

$

Not available

32

Bear Cat 76916-12

SUPPORT, AXLE FENDER LH

$

$

Not available

33

Bear Cat 76917-12

SHEET, MOUNT FENDER LH

$

$

Not available

34

Bear Cat 76918-12

SHEET, MOUNT FENDER RH

$

$

Not available

35

Bear Cat 76921-12

BRACKET, FENDER SUPPORT

$

$

Not available

36

77487-12

BRACKET, LIGHT RH

$

$

Not available

37

77488-12

BRACKET, LIGHT LH

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 32326-00

HARNESS, CHIPPER TRAILER

Note: (NOT SHOWN)

$246.99

$

Usually ships in 3-7 days

0
