CGT 5426 (14A7A3KW897) - Columbia 54" Garden Tractor (2015) Drive System (GT) Parts Diagram

54" Garden Tractor

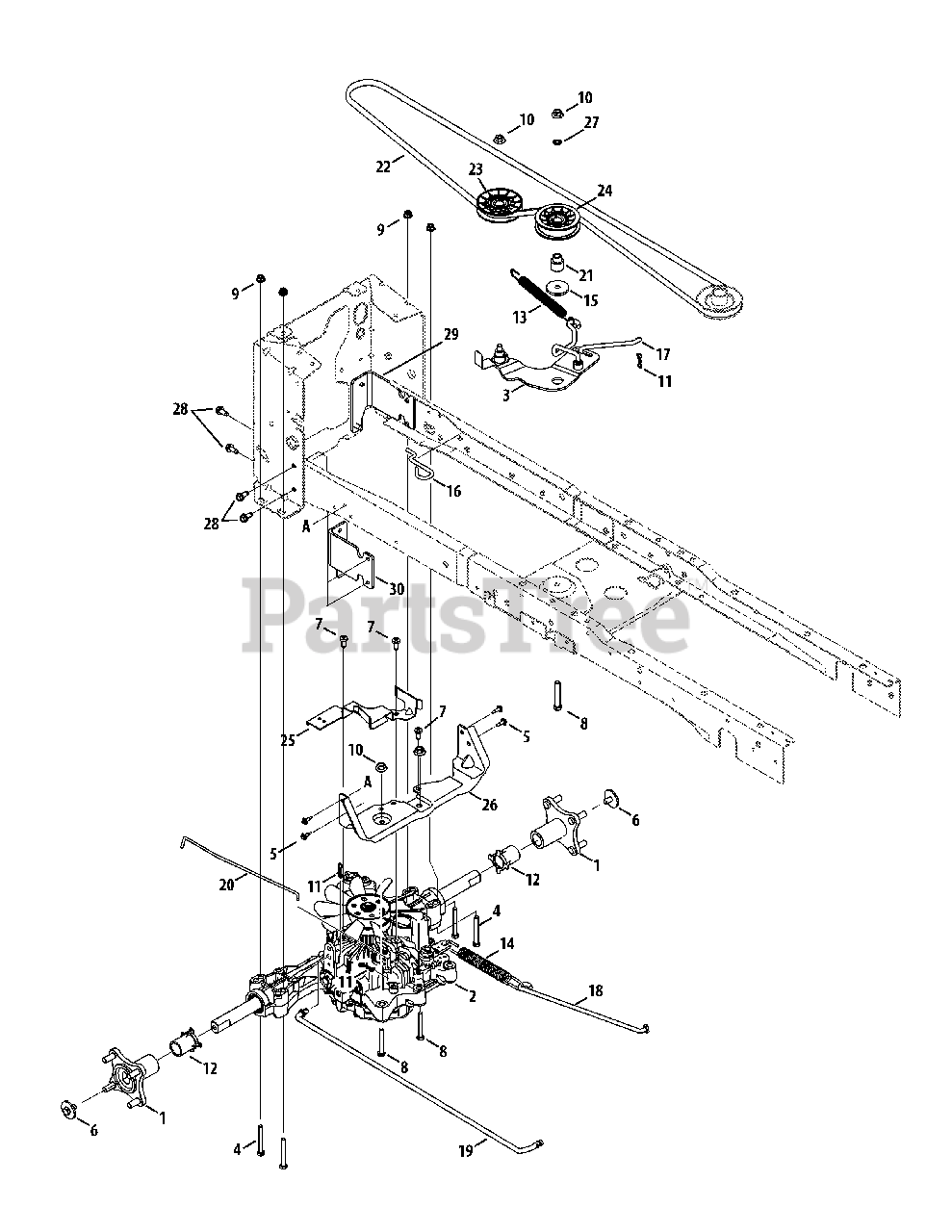

Drive System (GT) Parts Diagram

  • Title

1

MTD 918-04317

Hub Assembly, Wheel

$116.99

$

Usually ships in 3-6 days

0

2

MTD 918-06974

Transmission, Tuff Torq K58
(Superseded to 753-08600)

$2010.99

$

Usually ships in 3-6 days

0

3

MTD 983-05090A

Idler bracket Assembly

$73.99

$

In Stock, only 2 left!

0

4

MTD 710-0176

Hex Screw, 5/16-18, 2.75, Gr5, Std

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 13

0

6

MTD 710-06168

Hex Cap Screw, 3/8-16 x .750

$6.49

$

Usually ships in 3-6 days

0

7

MTD 710-1611B

Screw, Self-tapping, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-3011

Hex Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

9

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

12

MTD 731-10547A

Sleeve, 1.02 ID x 1.75

$4.49

$

Usually ships in 3-6 days

0

13

MTD 732-05108A

Spring, Extension, .700 Dia x 8.41

$12.99

$

Usually ships in 3-6 days

0

14

MTD 732-05146

Spring, Extension, .90 Dia x 8.14

$12.99

$

Usually ships in 3-6 days

0

15

MTD 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

16

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

17

MTD 747-06193

Idler Link
(Superseded to 747-06193B)

$11.99

$

In Stock, only 1 left!

0

18

MTD 747-06251A

Rod, Brake, Tuff Torq
(Superseded to 747-06251C)

$12.99

$

Usually ships in 3-6 days

0

19

MTD 747-06281A

Rod, Control, Tuff Torq
(Superseded to 747E06281A)

$18.99

$

Usually ships in 3-6 days

0

20

MTD 747-06447

Rod, Transmission, Bypass

$8.49

$

Usually ships in 3-6 days

0

21

MTD 748-05037A

Shoulder Spacer
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 11

0

22

MTD 954-05027A

Belt, V-Type
(Superseded to 954-05027B)

$63.99

$

In Stock, Qty 17

0

23

MTD 756-05024

Idler Pulley, 3.56 OD

$25.99

$

In Stock, only 2 left!

0

24

MTD 756-05032

Idler Pulley, 3.00 OD

$26.99

$

In Stock, Qty 10

0

25

MTD 783-08342-0637

Belt Keeper Bracket
(Superseded to 783-08342A-0637)

$13.99

$

Usually ships in 3-6 days

0

26

MTD 783-08463-0637

Transmission Bracket
(Superseded to 783-08463A-0637)

$34.99

$

Usually ships in 3-6 days

0

27

MTD 726-0201

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

28

MTD 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

29

MTD 783-08873-0637

Frame Support Bracket, LH

$23.99

$

Usually ships in 3-6 days

0

30

MTD 783-08874-0637

Frame Support Bracket, RH

$23.99

$

Usually ships in 3-6 days

0
