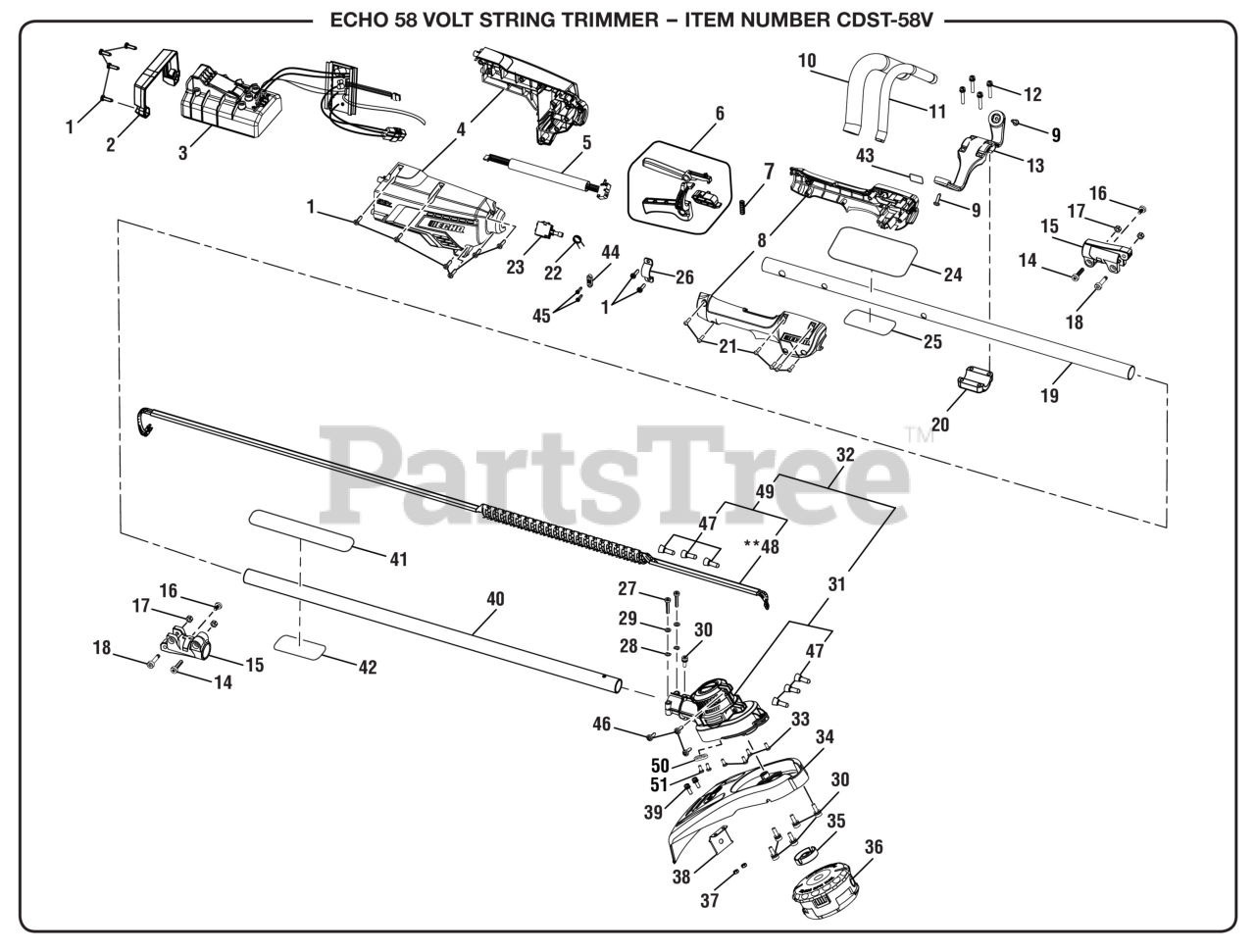

CDST-58V (107397001) - Echo String Trimmer, 58V Battery, Revision 12 (2019-11) General Assembly Parts Diagram

String Trimmer, 58V Battery, Revision 12

General Assembly Parts Diagram

  • Title

1

Echo 662051002

Screw (M5 x 17.5 mm, T20 Torx Pan Hd.)

$1.49

$

In Stock, Qty 8

0

2

Echo 534165001

Battery Carriage Fastener

$1.49

$

Usually ships in 2-4 days

0

3

Echo 206698001

Battery Carriage & Motor Controller Assembly

$92.99

$

Usually ships in 2-4 days

0

4

Echo 206706001

Handle Housing Assembly

$14.99

$

Usually ships in 2-4 days

0

5

Echo 206699001

Switch and Wire Assembly

$6.49

$

Usually ships in 2-4 days

0

6

Echo 351052001

Switch Trigger, Lock-Out Button and ON/OFF Switch Assembly

$1.49

$

Usually ships in 2-4 days

0

7

Echo 679973001

Compression Spring (Trigger)

$1.49

$

In Stock, Qty 5

0

8

Echo 307839001

Rear Handle Housing Assembly

$5.49

$

In Stock, only 1 left!

0

9

Echo 662185001

Screw (10-14 x 17 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

10

Echo 563598001

Foam Grip

$5.99

$

In Stock, only 1 left!

0

11

Echo 528391002

Front Handle

$3.49

$

Usually ships in 2-4 days

0

12

Echo 662184001

Screw w/Washers (M5 x 26 mm, Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 528392002

Handle Bracket

$2.99

$

Usually ships in 2-4 days

0

14

Echo 662151001

Screw (M6 x 25 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, Qty 13

0

15

Echo 643262001

COUPLER

$6.49

$

In Stock, only 1 left!

0

16

Echo 662153001

Screw (M5 x 10 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

17

Echo 678610006

Lock Nut (M6)

$1.49

$

In Stock, Qty 15

0

18

Echo T662716001

Screw (M6 x 26 mm, Recessed Hex Soc. Hd.)

$1.49

$

In Stock, Qty 12

0

19

Echo 205032001

Upper Boom Assembly

$13.99

$

Usually ships in 2-4 days

0

20

Echo 528393002

Clamp (Auxiliary Handle)

$1.49

$

Usually ships in 2-4 days

0

21

Echo 660024061

Screw (M4 x 14 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 694572001

Torsion Spring

$1.49

$

In Stock, only 3 left!

0

23

Echo 760952002

Variable Signal Switch

$7.99

$

In Stock, only 2 left!

0

24

Echo 940851049

Echo Logo Label (Upper Boom)

$1.49

$

Usually ships in 2-4 days

0

25

Echo 941588209

Data Label

$1.49

$

Usually ships in 2-4 days

0

26

Echo 639806001

CLAMP

$1.49

$

Usually ships in 2-4 days

0

27

Echo 662174001

Screw (M5 x 26 mm, T25 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

28

Echo 636270001

Washer (Special)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 636603001

Washer (ID5.2 x OD10 x 0.8t)

$1.49

$

Usually ships in 2-4 days

0

30

Echo 662158001

Screw w/Washers (M5 x 12.5 mm, T25 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

31

Echo 205055001

Motor, Motor Housing and Gear Box Assembly

$140.99

$

Usually ships in 2-4 days

0

32

Echo 205056001

Motor, Motor Housing and Gear Box Assembly

$159.99

$

Usually ships in 2-4 days

0

33

Echo 660925002

Screw (M4 x 9 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 534169001

Grass Deflector

$3.49

$

Usually ships in 2-4 days

0

35

Echo 643254001

WASHER

$2.49

$

In Stock, Qty 13

0

36

Echo 307342001

Stringhead Assembly
(Superseded to 99944200907)

$41.99

$

In Stock, Qty 8

0

37

Echo 662157001

Hex Nut (M5)

$1.49

$

In Stock, only 2 left!

0

38

Echo 636193001

Line Cutting Blade

$1.49

$

Usually ships in 2-4 days

0

39

Echo 662156001

Screw w/Washers (M5 x 12 mm, Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

40

Echo 205033001

Lower Boom Assembly

$11.99

$

Usually ships in 2-4 days

0

41

Echo 940657185

Warning Icon Label

$

$

Currently unavailable

42

Echo 940006271

Warning Label (French/Spanish)

$1.49

$

Usually ships in 2-4 days

0

43

Echo 940851047

Throttle Label

$1.49

$

Usually ships in 2-4 days

0

44

Echo 513211001

Cord Clamp

$6.49

$

Usually ships in 2-4 days

0

45

Echo 661817001

Screw (M4 x 13.5 mm, T15 Torx Pan Hd.)

$1.49

$

In Stock, only 2 left!

0

46

Echo 660608003

Screw (M4 x 12 mm, T20 Torx Pan Hd.)

$1.49

$

Usually ships in 2-4 days

0

47

Echo 790009004

Wire Connector

Note: Denotes Item Is Part Of A Subassembly

$1.49

$

Usually ships in 2-4 days

0

48

Echo 291823001

Main Electric Wire

Note: When assembling Key 48, always connect the lower (motor) terminals before the upper end (control board) terminals.

$18.99

$

Usually ships in 2-4 days

0

49

Echo 205054001

Main Electric Wire

$19.99

$

Usually ships in 2-4 days

0

50

Echo 513211001

Cord Clamp

$6.49

$

Usually ships in 2-4 days

0

51

Echo 661559001

Cap Screw (M4 x 11 mm, T20 Torx Hd.)

$

$

Currently unavailable

Echo 995000337

Operator's Manual (ECHO #99922205195)

Note: Not Shown

$

$

Currently unavailable

Echo 000998945DG9

58V Battery Pack (CBP-58V20, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 000998946DG9

58V Battery Pack (CBP-58V40, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 140330001

58V Charger (CBC-58V, Not Included)

Note: Not Shown

$

$

Currently unavailable

Echo 639850001

Hex Key Wrench (M5 x 127.5 mm x 27.5 mm)

Note: Not Shown

$2.49

$

Usually ships in 2-4 days

0
