CD7148 A 48 (RZEA) - Honda 48" Mower Deck, Made in USA (SN: RZEA-3000001 - RZEA-9999999) ROTARY BLADE Parts Diagram

48" Mower Deck, Made in USA

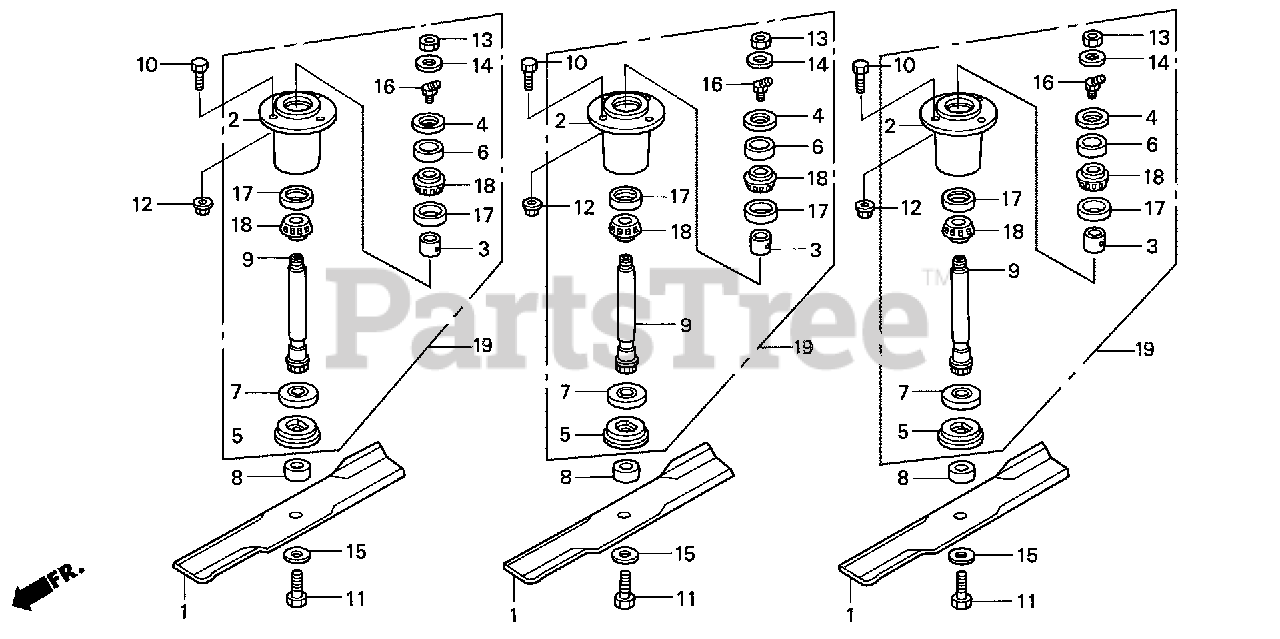

ROTARY BLADE Parts Diagram

  • Title

1

Honda 72511-VG5-L10

SEE PART DETAILS - PRI; BLADE, HIGH LIFT (16.5")

$33.99

$

Usually ships in 3-6 days

0

2

Honda 72711-VG5-L00

HOUSING, BEARING

$117.99

$

Usually ships in 3-6 days

0

3

Honda 72722-VG5-L00

SPACER, BEARING (1 1/4"OD X 1 1/4")

$8.99

$

In Stock, only 1 left!

0

4

Honda 72723-VG5-L00

SEAL, SPINDLE (UPPER)

$7.49

$

Usually ships in 3-6 days

0

5

Honda 72724-VG5-L00

SPACER, BLADE

$12.99

$

Usually ships in 3-6 days

0

6

Honda 72725-VG5-L00

SPACER, SEAL

$22.99

$

Usually ships in 3-6 days

0

7

Honda 72726-VG5-L00

SEAL, SPINDLE (LOWER)

$9.49

$

Usually ships in 3-6 days

0

8

Honda 72727-VG5-L00

SPACER, BLADE (3/8")

$

$

Not available

9

Honda 76212-VG5-L00

SHAFT, BLADE

$

$

Not available

10

Honda 90152-VG5-L00

BOLT, HEX. (3/8-16X1 1/4")

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90182-VG5-L00

BOLT, HEX. (5/8-18X1 3/4")

$2.99

$

Usually ships in 3-6 days

0

12

Honda 90365-VG5-000

NUT, WHIZ-LOCK (3/8"-16)

$0.99

$

In Stock, Qty 9

0

13

Honda 90370-VG5-L00

NUT, JAM (5/8"-18)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 90506-VG5-L00

WASHER (5/8"-1 5/16")

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90526-VG5-L00

WASHER, FLAT (5/8")

$0.99

$

Usually ships in 3-6 days

0

16

Honda 90951-VG5-L00

NIPPLE, GREASE (1/4 "28 45)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 91059-VG5-L00

BEARING, CUP

$

$

Not available

18

Honda 91060-VG5-L00

BEARING, CONE

$

$

Not available

19

Honda 06750-VG5-L00

SPINDLE ASSY.

$800.99

$

Usually ships in 3-6 days

0
