CD7060 CCD4 60 (CCD4) - Honda 60" Mower Deck, Made in Japan (SN: CCD4-1000001 - CCD4-9999999) FRONT CASTER Parts Diagram

60" Mower Deck, Made in Japan

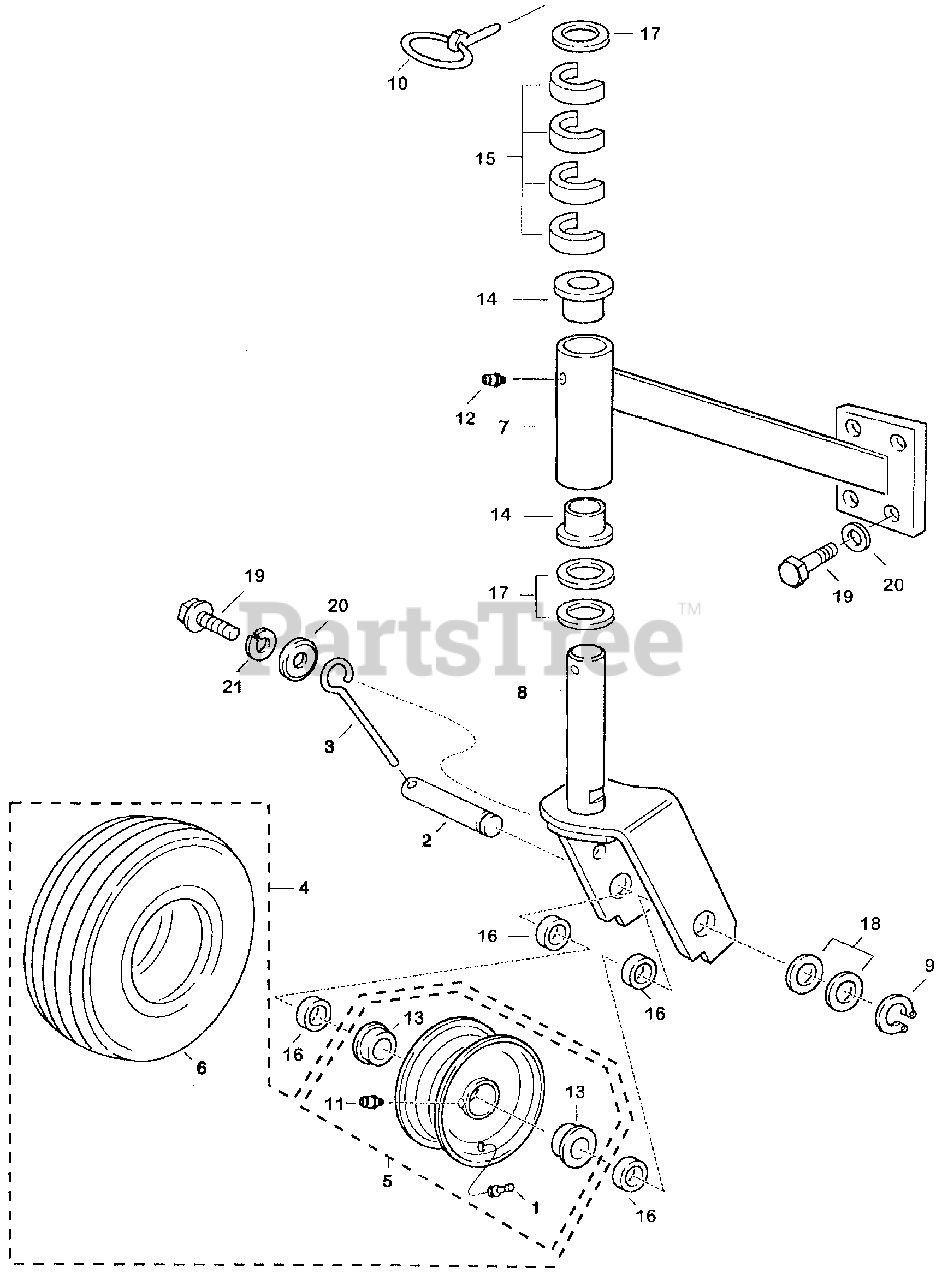

FRONT CASTER Parts Diagram

  • Title

1

Honda 42753-VE4-003

VALVE, RIM

$9.99

$

Usually ships in 3-6 days

0

2

Honda 44311-VE4-003

SHAFT, STEEL

$58.99

$

Usually ships in 3-6 days

0

3

Honda 44324-VE4-003

HOOK

$5.49

$

In Stock, only 1 left!

0

4

Honda 44700-VE4-003

WHEEL ASSY.

$

$

Not available

5

Honda 44705-VE4-003

WHEEL ASSY., FR.

$92.99

$

In Stock, only 2 left!

0

6

Honda 44751-VE4-003

TIRE, FR.

$62.99

$

Usually ships in 3-6 days

0

7

Honda 76270-VE4-000

BRACKET, GAUGE ROLLER

$450.99

$

Usually ships in 3-6 days

0

8

Honda 76275-VE4-000

ARM, GAUGE ROLLER

$532.99

$

Usually ships in 3-6 days

0

9

Honda 90652-VE4-003

E-RING (3/4")

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90756-VE4-003

QUICK CLIP

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90951-VE4-003

NIPPLE, GREASE

$2.49

$

Usually ships in 3-6 days

0

12

Honda 90953-VE4-003

NIPPLE, GREASE

$2.99

$

Usually ships in 3-6 days

0

13

Honda 91051-VE4-003

BEARING, WHEEL

$52.99

$

Usually ships in 3-6 days

0

14

Honda 91553-VE4-003

SEE PART DETAILS - SUP; BUSHING, CASTER TUBE
(Superseded to 76272-VG5-L00)

$3.49

$

In Stock, only 4 left!

0

15

Honda 91554-VE4-003

COLLAR, CASTER TUBE

$7.99

$

In Stock, only 2 left!

0

16

Honda 91555-VE4-003

COLLAR, FR. WHEEL

$3.49

$

Usually ships in 3-6 days

0

17

Honda 91558-VE4-003

SEE PART DETAILS - SUP; WASHER (1" MACH)
(Superseded to 91558-VG5-000)

$1.49

$

In Stock, only 2 left!

0

17

Honda 91558-VG5-000

SEE PART DETAILS - PRI; BUSHING (1")

$1.49

$

In Stock, only 2 left!

0

18

Honda 91562-VE4-003

BUSHING, MACH (3/4")

$1.99

$

Usually ships in 3-6 days

0
