CD7060 CCD4 60 (CCD4) - Honda 60" Mower Deck, Made in Japan (SN: CCD4-1000001 - CCD4-9999999) BLADE SPINDLE Parts Diagram

60" Mower Deck, Made in Japan

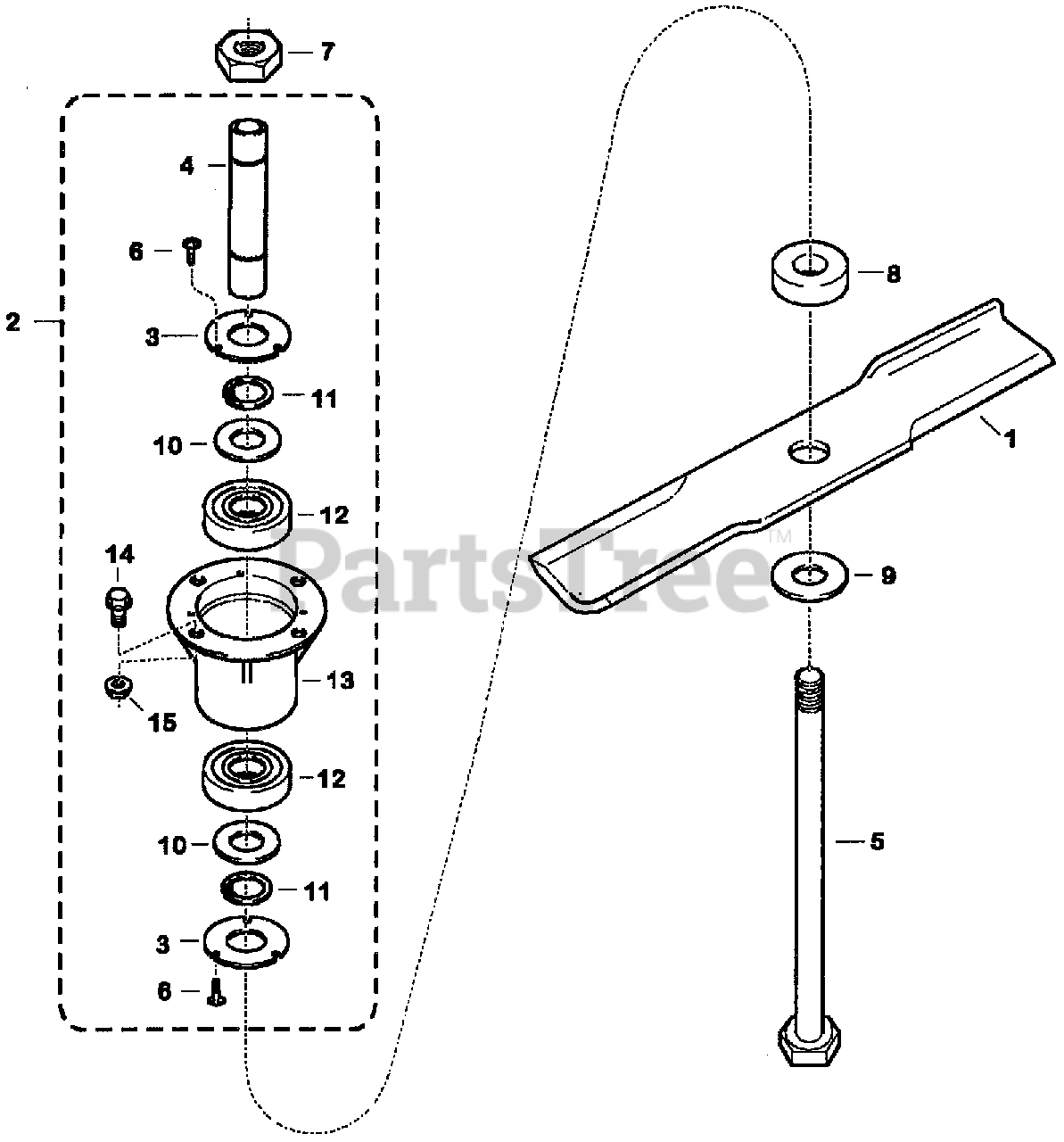

BLADE SPINDLE Parts Diagram

  • Title

1

Honda 72511-VE6-L10

BLADE, HIGH LIFT (21")

$52.99

$

Usually ships in 3-6 days

0

2

Honda 06760-VE4-L00

SEE PART DETAILS - PRI; HOUSING ASSY., BLADE BEARING

$912.99

$

Usually ships in 3-6 days

0

2

Honda 72700-VE4-010

SEE PART DETAILS - SUP; HOUSING ASSY., BLADE BEARING
(Superseded to 06760-VE4-L00)

$912.99

$

Usually ships in 3-6 days

0

3

Honda 72713-VE4-013

SEE PART DETAILS - PRI; CAP, BEARING HOUSING

$13.99

$

Usually ships in 3-6 days

0

4

Honda 76212-VE4-000

SHAFT, BLADE

$47.99

$

Usually ships in 3-6 days

0

5

Honda 90102-VE4-003

BOLT, BLADE

$18.99

$

Usually ships in 3-6 days

0

6

Honda 90103-VE4-003

SCREW, BEARING HOUSING (10-32-1/2)

$

$

Currently unavailable

7

Honda 90301-VE4-003

JAM NUT (5/8"-18)

$2.99

$

Usually ships in 3-6 days

0

8

Honda 91551-VE6-L00

COLLAR, BLADE (1/2")

$

$

Not available

9

Honda 90510-VE4-003

WASHER, BLADE

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90527-VE4-L00

SEE PART DETAILS - PRI; WASHER, SLINGER

$3.49

$

Usually ships in 3-6 days

0

10

Honda 90527-VE4-000

SEE PART DETAILS - SUP; WASHER, SLINGER
(Superseded to 90527-VE4-L00)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90654-VE4-003

RING, SNAP

$2.49

$

Usually ships in 3-6 days

0

12

Honda 91053-VE4-013

BEARING, BLADE SHAFT
(Superseded to 91053-VE4-010)

$59.99

$

Usually ships in 3-6 days

0
