CD7048 CCD1 48 (CCD1) - Honda 48" Mower Deck, Made in USA (SN: CCD1-1000001 - CCD1-2000000) MOWER DECK Parts Diagram

48" Mower Deck, Made in USA

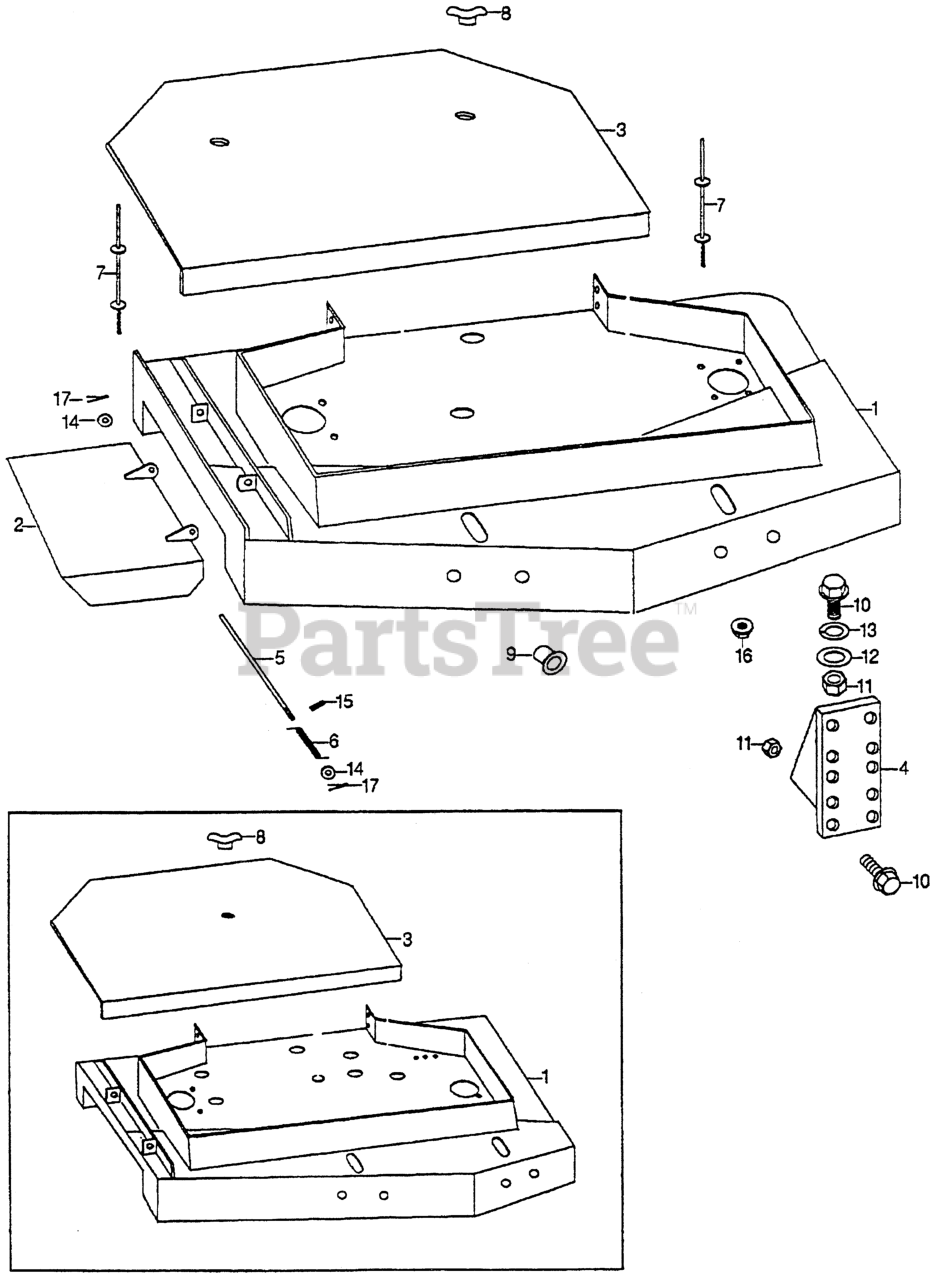

MOWER DECK Parts Diagram

  • Title

1

Honda 76110-VE4-701

HOUSING, CUTTER (48") (NOT AVAILABLE)

Note: Use up to Frame SN 1000965.

$

$

Currently unavailable

2

Honda 76150-VE4-000

ADAPTER, DISCHARGE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76155-VE4-701

COVER, BELT (48")

$79.99

$

Usually ships in 3-6 days

0

4

Honda 76263-VE4-010

SEE PART DETAILS - PRI; BRACKET

$120.99

$

Usually ships in 3-6 days

0

5

Honda 76282-VE4-003

SHAFT, DISCHARGE

$38.99

$

Usually ships in 3-6 days

0

6

Honda 76284-VE4-003

SPRING, GUARD SET

$11.99

$

Usually ships in 3-6 days

0

7

Honda 90132-VE4-003

STUD, HOOD MOUNT

$8.99

$

Usually ships in 3-6 days

0

8

Honda 90302-VE4-003

WINGNUT (5/16"-18)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90305-VE4-003

NUT, INSERT (3/8")

$7.49

$

Usually ships in 3-6 days

0
