CD7036 CCD2 36 (CCD2) - Honda 36" Mower Deck, Made in USA (SN: CCD2-1000001 - CCD2-2000000) MOWER DECK DRIVE (1000678-) Parts Diagram

36" Mower Deck, Made in USA

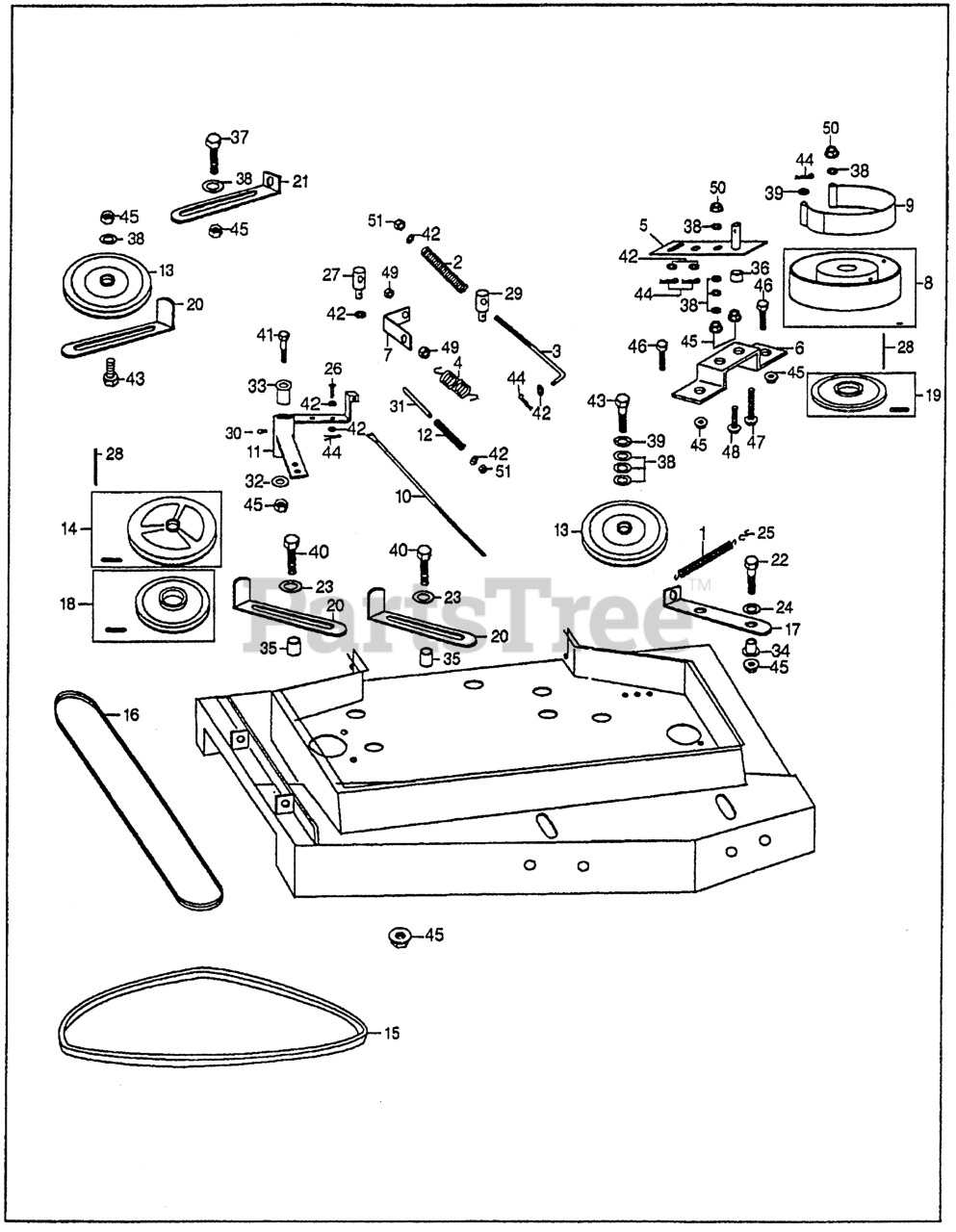

MOWER DECK DRIVE (1000678-) Parts Diagram

  • Title

1

Honda 22567-VE4-003

SEE PART DETAILS - SUP; SPRING, TENSIONER
(Superseded to 22567-VE4-013)

Note: Use from Frame SN 1000678.

$12.99

$

Usually ships in 3-6 days

0

2

Honda 24568-VE4-003

SPRING, NEUTRAL Use up to Frame SN 1000677.

Note: Use from Frame SN 1000678.

$3.49

$

Usually ships in 3-6 days

0

3

Honda 24569-VE4-003

ROD, NEUTRAL

Note: Use from Frame SN 1000678.

$23.99

$

Usually ships in 3-6 days

0

4

Honda 24689-VE4-000

SEE PART DETAILS - PRI; SPRING, PUMP ARM

Note: Use from Frame SN 1000678.

$116.99

$

Usually ships in 3-6 days

0

5

Honda 75130-VE4-000

ARM, BRAKE

Note: Use from Frame SN 1000678.

$14.99

$

Usually ships in 3-6 days

0

6

Honda 75131-VE4-000

PLATE, BRAKE (NOT AVAILABLE)

Note: Use from Frame SN 1000678.

$

$

Currently unavailable

7

Honda 75137-VE4-003

BRACKET, SPRING

Note: Use from Frame SN 1000678.

$6.49

$

Usually ships in 3-6 days

0

8

Honda 75140-VE4-003

DISK, FRICTION

Note: Use from Frame SN 1000678.

$

$

Not available

9

Honda 75120-VE4-003

BAND, BRAKE

Note: Use from Frame SN 1000678.

$66.99

$

Usually ships in 3-6 days

0

10

Honda 75196-VE4-003

ROD C, P.T.O. (36")

Note: Use from Frame SN 1000678.

$12.99

$

In Stock, only 1 left!

0

11

Honda 76120-VE4-010

ARM, TENSIONER

Note: Use from Frame SN 1000678.

$52.99

$

Usually ships in 3-6 days

0

12

Honda 76122-VE4-003

SPRING, TENSIONER ARM Use up to Frame SN 1000677.

Note: Use from Frame SN 1000678.

$13.99

$

Usually ships in 3-6 days

0

13

Honda 76131-VE4-003

PULLEY A, TENSION

Note: Use from Frame SN 1000678.

$35.99

$

Usually ships in 3-6 days

0

14

Honda 04602-VE4-000

SEE PART DETAILS - PRI; KIT, DECK PULLEY

Note: Use from Frame SN 1000678.

$117.99

$

Usually ships in 3-6 days

0

15

Honda 76181-VE4-003

V-BELT, BLADE

Note: Use from Frame SN 1000678.

$35.99

$

Usually ships in 3-6 days

0

16

Honda 76182-VE4-003

V-BELT, DECK Use up to Frame SN 1000677.

Note: Use from Frame SN 1000678.

$47.99

$

Usually ships in 3-6 days

0

17

Honda 76218-VE4-003

ARM, IDLER

Note: Use from Frame SN 1000678.

$21.99

$

Usually ships in 3-6 days

0

18

Honda 04604-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT A

Note: Use from Frame SN 1000678.

$121.99

$

Usually ships in 3-6 days

0

19

Honda 04605-VE4-000

SEE PART DETAILS - PRI; PULLEY KIT B

Note: Use from Frame SN 1000678.

$179.99

$

Usually ships in 3-6 days

0

20

Honda 76237-VE4-003

GUIDE A, BELT

Note: Use from Frame SN 1000678.

$11.99

$

Usually ships in 3-6 days

0

21

Honda 76238-VE4-003

GUIDE B, BELT

Note: Use from Frame SN 1000678.

$9.99

$

Usually ships in 3-6 days

0

22

Honda 90110-VE4-003

BOLT A, SHOULDER

Note: Use from Frame SN 1000678.

$7.49

$

Usually ships in 3-6 days

0

23

Honda 90501-VE4-003

WASHER

Note: Use from Frame SN 1000678.

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90505-VE4-003

WASHER, BELLEVILLE (1/2") Use up to Frame SN 1000677.

Note: Use from Frame SN 1000678.

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90651-VE4-003

CLIP, SPRING

Note: Use from Frame SN 1000678.

$1.99

$

In Stock, Qty 5

0

26

Honda 90752-VE4-003

PIN, PIVOT

Note: Use from Frame SN 1000678.

$7.99

$

Usually ships in 3-6 days

0

27

Honda 90762-VE4-003

PIN, CLEVIS (5/16")

Note: Use from Frame SN 1000678.

$3.49

$

Usually ships in 3-6 days

0

28

Honda 90766-VE4-003

KEY, SQUARE (1/4"X1/4"X1")

Note: Use from Frame SN 1000678.

$14.99

$

Usually ships in 3-6 days

0

29

Honda 90769-VE4-000

PIN, SWIVEL

Note: Use from Frame SN 1000678.

$9.49

$

Usually ships in 3-6 days

0

30

Honda 90951-VE4-003

NIPPLE, GREASE

Note: Use from Frame SN 1000678.

$1.99

$

Usually ships in 3-6 days

0

31

Honda 91452-VE4-000

TUBE, VINYL (7/16"X2) (1/2")

Note: Use from Frame SN 1000678.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 91558-VG5-000

SEE PART DETAILS - PRI; BUSHING (1")

Note: Use from Frame SN 1000678.

$1.49

$

In Stock, only 2 left!

0

33

Honda 91559-VE4-003

BUSHING, PIVOT

Note: Use from Frame SN 1000678.

$17.99

$

Usually ships in 3-6 days

0

34

Honda 91560-VE4-003

BUSHING, SNAP

Note: Use from Frame SN 1000678.

$4.49

$

Usually ships in 3-6 days

0

35

Honda 91561-VE4-003

COLLAR B, SPACER

Note: Use from Frame SN 1000678.

$27.99

$

Usually ships in 3-6 days

0

36

Honda 91569-VE4-000

COLLAR, BRAKE

Note: Use from Frame SN 1000678.

$2.49

$

Usually ships in 3-6 days
