CD4538 C SA (RZBA) - Honda 38" Mower Deck, Made in Japan (SN: RZBA-1000001 - RZBA-9999999) BLADE SHAFT I Parts Diagram

38" Mower Deck, Made in Japan

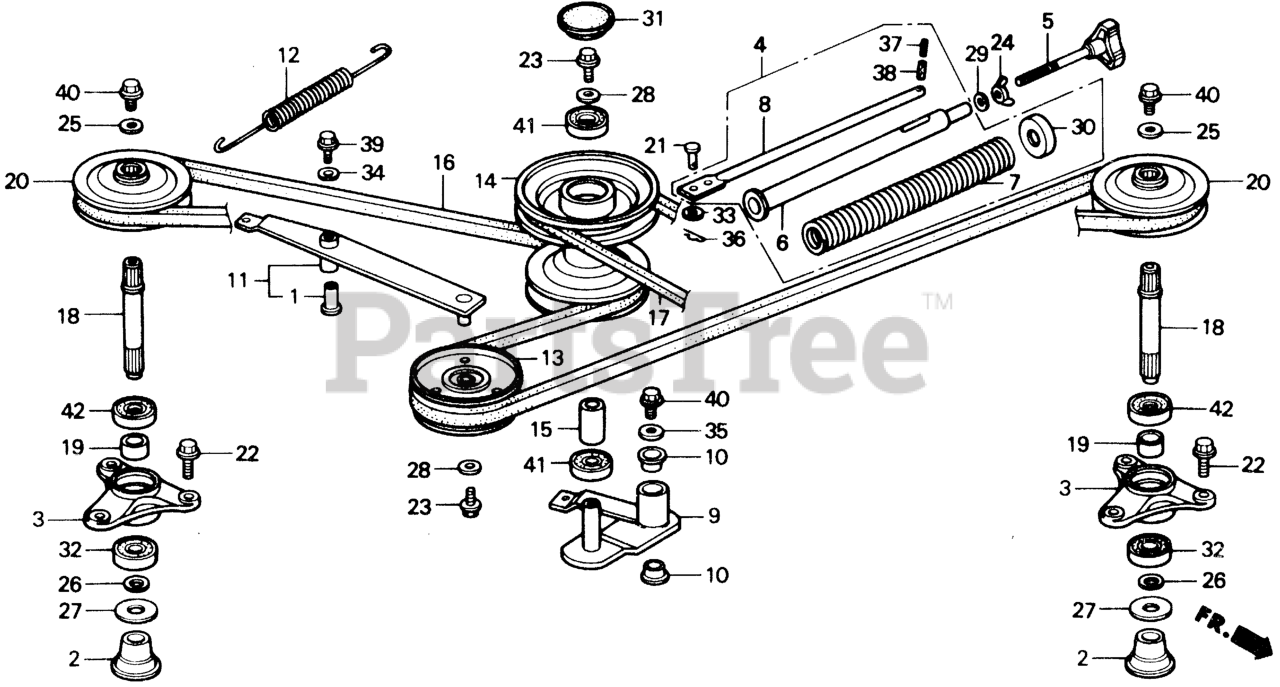

BLADE SHAFT I Parts Diagram

  • Title

1

Honda 22525-751-300

BUSH (15X19X39.5)

$11.99

$

In Stock, only 3 left!

0

2

Honda 72611-758-L00

SEE PART DETAILS - PRI; HOLDER, BLADE

$

$

Not available

3

Honda 72711-763-A00

HOUSING, BEARING

$143.99

$

Usually ships in 3-6 days

0

4

Honda 75550-758-H00

PIPE ASSY., TENSIONER

$

$

Not available

5

Honda 75552-758-L02

KNOB, TENSIONER SPRING RELEASE

$

$

Not available

6

Honda 75556-758-H00

PIPE, SPRING SETTING

$

$

Not available

7

Honda 75557-758-M00

SPRING, TENSIONER LOAD SETTING

$44.99

$

Usually ships in 3-6 days

0

8

Honda 75558-758-H00

SHAFT, SPRING SET

$

$

Not available

9

Honda 76120-758-H01

ARM, TENSION

$

$

Not available

10

Honda 76121-750-000

BUSH, TENSIONER ARM

$

$

Not available

11

Honda 76123-758-L01

ARM, TENSIONER

$

$

Not available

12

Honda 76129-758-L00

SPRING, TENSIONER ARM B

$

$

Not available

13

Honda 76130-758-L00

ROLLER, TENSIONER

$

$

Not available

14

Honda 76140-758-L01

PULLEY, DRIVEN

$

$

Not available

15

Honda 76141-750-000

COLLAR, DRIVEN PULLEY

$

$

Not available

16

Honda 76181-758-L00

V-BELT, BLADE (LB-73)

$83.99

$

Usually ships in 3-6 days

0

17

Honda 76182-758-H00

SEE PART DETAILS - PRI; V-BELT, DRIVE (LB-104)

$

$

Not available

18

Honda 76212-758-L00

SHAFT, BLADE

$

$

Not available

19

Honda 76213-751-700

COLLAR, BLADE SHAFT

$11.99

$

In Stock, only 2 left!

0

20

Honda 76220-758-M00

PULLEY, BLADE (115MM)

$

$

Not available

21

Honda 90753-758-J00

PIN, TENSIONER ARM (10X19.5)

$5.49

$

In Stock, only 1 left!

0

22

Honda 90002-752-830

BOLT, FLANGE (10X28)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

24

Honda 90352-750-950

WINGNUT (8MM)

$1.49

$

In Stock, only 2 left!

0

25

Honda 90405-758-L00

SEE PART DETAILS - PRI; WASHER (10.5X27X4)

$10.99

$

Usually ships in 3-6 days

0

26

Honda 90428-752-830

WASHER, THRUST (20MM)

$3.99

$

In Stock, only 1 left!

0

27

Honda 90429-752-830

WASHER, BLADE HOLDER

$10.99

$

In Stock, only 2 left!

0

28

Honda 90430-657-000

WASHER (23X8.3X3.2)

$9.49

$

In Stock, only 1 left!

0

29

Honda 90430-758-L00

WASHER, TENSIONER SPRING RELEASE (8.3X23X3.2)

$

$

Not available

30

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

$7.99

$

Usually ships in 3-6 days

0

31

Honda 90872-758-L01

PLUG, SEALING (40X8)

$

$

Not available

32

Honda 91055-752-831

BEARING, RADIAL BALL

$22.99

$

In Stock, only 2 left!

0

33

Honda 94101-10800

WASHER, PLAIN (10MM)

$2.49

$

In Stock, only 2 left!

0

34

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

35

Honda 94103-10800

WASHER, PLAIN (10MM)

$1.99

$

In Stock, Qty 8

0

36

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 8

0

37

Honda 94305-30282

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

38

Honda 94305-50282

PIN, SPRING (5X28)

$2.49

$

Usually ships in 3-6 days

0

39

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 95701-10016-08

BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

41

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, Qty 5

0

42

Honda 96150-62040-10

BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 1 left!

0
