CD4213 A (RAF) - Honda 42" Mower Deck, Made in Japan (SN: RAF-0000001 - RAF-9999999) CUTTER HOUSING (CD4213) Parts Diagram

42" Mower Deck, Made in Japan

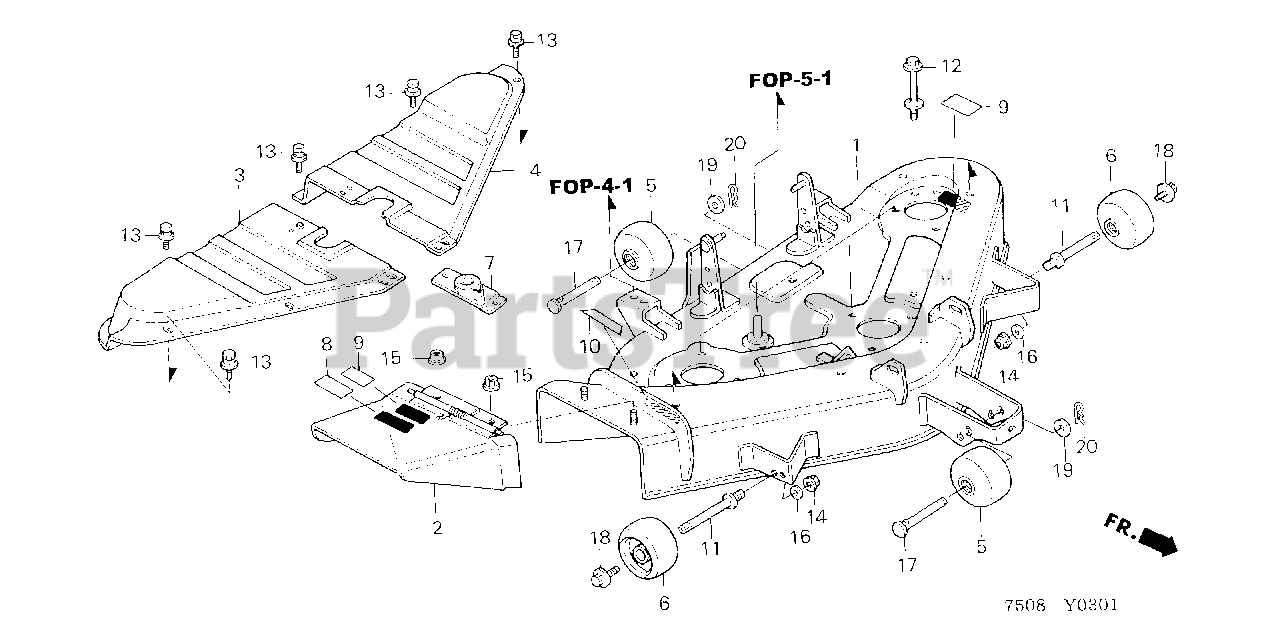

CUTTER HOUSING (CD4213) Parts Diagram

  • Title
1

Honda 76110-750-700ZA

SEE PART DETAILS - PRI; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)

$

$

Not available

2

Honda 76150-750-700ZA

SEE PART DETAILS - PRI; ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC)

$

$

Currently unavailable

3

Honda 76155-750-700ZA

SEE PART DETAILS - PRI; COVER, R. BELT *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 76156-750-700ZA

SEE PART DETAILS - PRI; COVER, L. BELT *NH190M* (VINTAGE GRAY METALLIC)

$

$

Currently unavailable

5

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$28.99

$

In Stock, only 2 left!

0

6

Honda 76231-752-831

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$

$

Not available

7

Honda 76290-752-830ZA

SEE PART DETAILS - PRI; SEAL, BELT COVER *NH190M* (VINTAGE GRAY METALLIC)

$

$

Currently unavailable

8

Honda 87115-751-700

LABEL B, WARNING (ENGLISH)

$

$

Currently unavailable

9

Honda 87122-751-700

LABEL A, WARNING (ENGLISH)

$

$

Not available

10

Honda 87139-752-830

MARK, CUT WIDTH (ENGLISH)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 90107-752-830

SHAFT, ANTI-SCALP ROLLER

$

$

Not available

12

Honda 90109-751-000

BOLT, BELT STOPPER

$6.49

$

Usually ships in 3-6 days

0

13

Honda 90111-752-830

BOLT-WASHER (6X16)

$

$

Not available

14

Honda 90306-750-A00

NUT, SELF-LOCK (12MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 6

0

16

Honda 90403-750-A00

WASHER, THRUST (12MM)

$6.99

$

Usually ships in 3-6 days

0

17

Honda 90752-751-003

PIN, ANTI-SCALP ROLLER

$

$

Not available

18

Honda 93404-08012-08

BOLT-WASHER (8X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, FLAT (12MM)

$

$

Not available

20

Honda 94252-12000

PIN, LOCK (12MM)

$1.99

$

Usually ships in 3-6 days

0
