CD3813 A (RAG) - Honda 38" Mower Deck, Made in Japan (SN: RAG-0000001 - RAG-9999999) BLADE SHAFT (CD3813) Parts Diagram

38" Mower Deck, Made in Japan

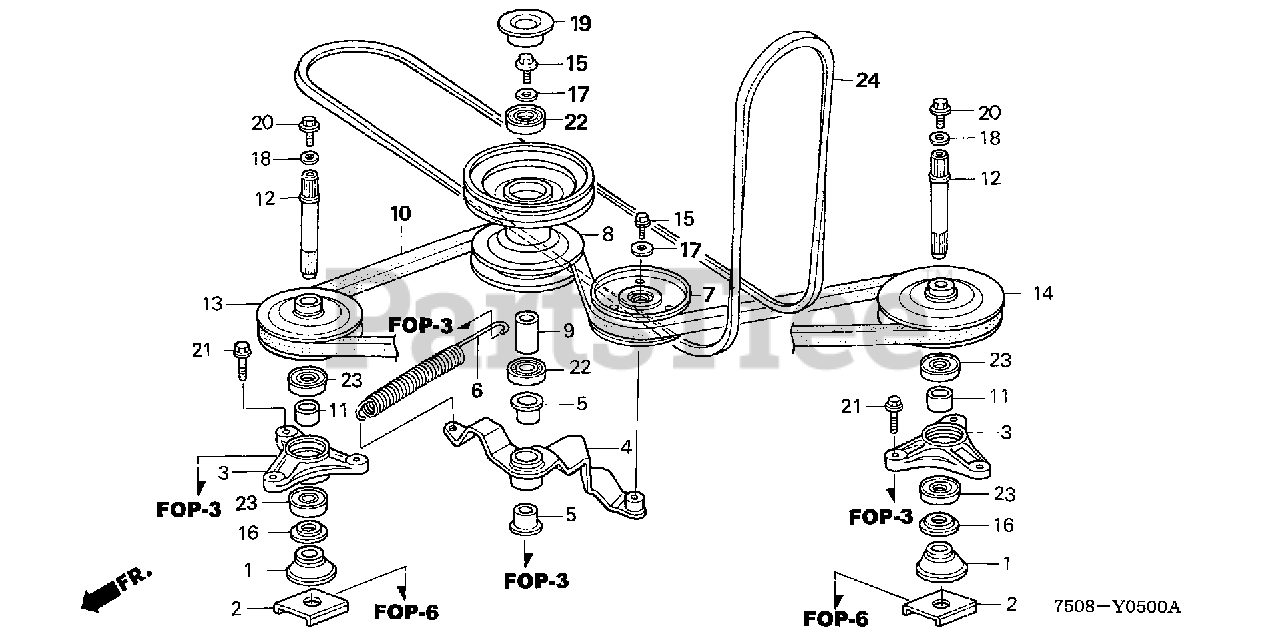

BLADE SHAFT (CD3813) Parts Diagram

  • Title

1

Honda 72620-751-701

SEE PART DETAILS - PRI; HOLDER, BLADE

$58.99

$

Usually ships in 3-6 days

0

2

Honda 72625-751-700

HOLDER, BLADE (B)

$24.99

$

Usually ships in 3-6 days

0

3

Honda 72711-750-A00

HOUSING, BEARING (NOT AVAILABLE)

$

$

Not available

4

Honda 76120-750-010

SEE PART DETAILS - PRI; ARM, TENSIONER

$

$

Not available

5

Honda 76121-750-000

BUSH, TENSIONER ARM

$

$

Not available

6

Honda 76122-750-000

SPRING, TENSIONER ARM

$

$

Not available

7

Honda 76130-750-000

ROLLER, TENSIONER

$

$

Not available

8

Honda 06762-750-305

SEE PART DETAILS - PRI; PULLEY KIT, DRIVEN

$

$

Not available

8

Honda 76140-750-010

SEE PART DETAILS - SUP; PULLEY, DRIVEN
(Superseded to 06762-750-305)

$

$

Not available

9

Honda 76141-750-000

COLLAR, DRIVEN PULLEY

$

$

Not available

10

Honda 76181-750-A01

SEE PART DETAILS - PRI; V-BELT, BLADE (LB-60)

$

$

Not available

11

Honda 76213-751-700

COLLAR, BLADE SHAFT

$12.99

$

In Stock, only 2 left!

0

12

Honda 76214-751-700

SHAFT, BLADE

$91.99

$

Usually ships in 3-6 days

0

13

Honda 76220-750-A00

PULLEY, BLADE (115)

$85.99

$

Usually ships in 3-6 days

0

14

Honda 76221-750-A00

PULLEY, BLADE (109)

$

$

Not available

15

Honda 90110-VA4-000

SEE PART DETAILS - PRI; BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

16

Honda 90409-751-700

SEE PART DETAILS - PRI; WASHER, BLADE HOLDER

$10.99

$

Usually ships in 3-6 days

0

17

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

18

Honda 90521-427-770

WASHER (10.3MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 90872-752-801

PLUG, SEALING (40X6)

$10.99

$

Usually ships in 3-6 days

0

20

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 95701-10028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X28)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, only 2 left!

0

23

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 2 left!

0

24

Honda 76182-750-003

SEE PART DETAILS - PRI; V-BELT, DECK

$114.99

$

Usually ships in 3-6 days

0
